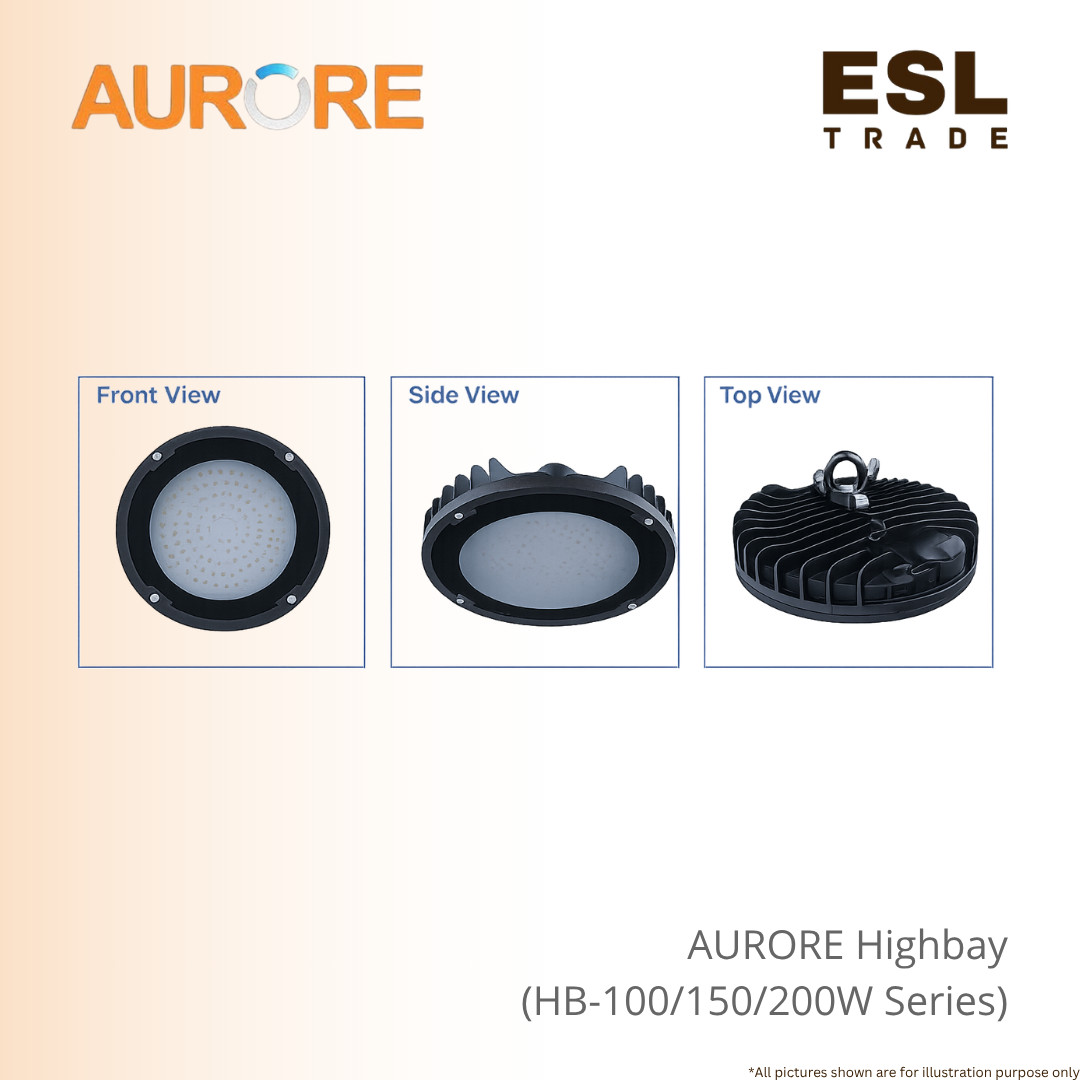

AURORE Hazzle LED High Bay Light Series 100W 150W 200W Industrial Warehouse Ceiling Lighting 6500K Daylight Magnificent
Optimize your high-ceiling commercial facilities, manufacturing centers, and sports complexes with professional-grade brightness and structural permanence using the Hazzle LED High Bay Series.
Specifically engineered to excel in high-clearance environments, this premium luminaire collection delivers reliable, intense illumination across vast open areas.
It stands out as a magnificent choice for industrial warehouses, factory assembly lines, indoor badminton and sports courts, logistics centers, and large retail shopping mall venues that demand high-efficiency overhead coverage all day long.
The core strength of the Hazzle High Bay series lies in its exceptional luminous efficiency and top-tier light distribution metrics.
Every fixture operates at a high efficiency rating of 100 lm/W (Lumens per Watt), ensuring you maximize structural brightness while keeping electrical utility overhead low.
The series is available in three distinct power variations to accommodate varying mounting heights:
- the 100W (HB-100W) outputting 10000lm,
- the mid-range 150W (HB-150W) delivering 15000lm, and
- the heavy-duty 200W (HB-200W) producing a massive 20000lm.
Operational safety and long-term reliability are central to this modern industrial line.
Running steadily on standard voltage tolerances of 220-240V, it features a highly optimized driver delivering a power factor of PF >0.9.
Color rendering accuracy is exceptional at CRI >80, ensuring sharp visual definition for workers, athletes, and security cameras under a crisp 6500K Daylight color temperature.
Boasting a rated operational lifetime of 30,000 hours backed by a 1-Year Warranty, this energy-saving overhead lighting system serves as an excellent low-maintenance property asset designed to enhance workplace productivity and safety.
Product Details
| Technical Feature | 100W Model (HB-100W) | 150W Model (HB-150W) | 200W Model (HB-200W) |
| Brand | Hazzle | Hazzle | Hazzle |
| Product Type | High Bay Series | High Bay Series | High Bay Series |
| Model Number | HB-100W | HB-150W | HB-200W |
| Power Consumption | 100W | 150W | 200W |
| Lumen Output | 10,000 lm | 15,000 lm | 20,000 lm |
| Luminous Efficacy (LPW) | 100 lm/W | 100 lm/W | 100 lm/W |
| Power Factor (PF) | >0.9 | >0.9 | >0.9 |
| Color Rendering Index (CRI) | >80 | >80 | >80 |
| Color Temperature (CCT) | 6500K (Daylight) | 6500K (Daylight) | 6500K (Daylight) |
| Input Voltage Range | AC 220-240V | AC 220-240V | AC 220-240V |
| Rated Lifetime | 30,000 Hours | 30,000 Hours | 30,000 Hours |
| Factory Warranty | 1 Year | 1 Year | 1 Year |
| Product Size (LxWxH) | 22.50 x 22.50 x 8.40 cm | 25.00 x 25.00 x 8.40 cm | 30.00 x 30.00 x 8.40 cm |
| Master Carton Quantity | 5 PCS per Carton | 5 PCS per Carton | 5 PCS per Carton |
| Master Carton Size | 34.50 x 24.70 x 26.00 cm | 34.50 x 27.20 x 28.50 cm | 34.50 x 32.20 x 33.60 cm |
| Carton Net Weight (NW) | 5.44 kg | 7.13 kg | 10.13 kg |
| Carton Gross Weight (GW) | 6.69 kg | 8.06 kg | 11.35 kg |
Common Product FAQs
Q: What are the primary installation environments for the Hazzle High Bay series?
A: This series is optimized for high-ceiling settings requiring uniform downward illumination. Key applications include industrial manufacturing warehouses, factory floors, commercial shopping mall atriums, and indoor sports facilities such as badminton or basketball courts.
Q: What does the 100 lm/W efficiency rating mean for my commercial project?
A: The 100 lm/W (Lumens per Watt) metric indicates high energy efficiency. It means the fixture converts electrical power into raw light output very effectively, allowing you to achieve bright coverage (e.g., 20,000 lumens on the 200W model) while drawing significantly less energy than traditional metal-halide lamps.
Q: Can these high bays withstand standard voltage fluctuations?
A: Yes. The Hazzle High Bay series runs smoothly on standard AC 220-240V commercial power lines and features an advanced driver that holds a stable power factor (PF >0.9), which prevents power wastage and protects the internal electronics.
Q: How do the physical dimensions change between the 100W, 150W, and 200W models?
A: All models share a streamlined profile height of 8.40 cm, but the diameter increases to provide proper heat dissipation for the larger power modules:
-
HB-100W: 22.50 cm x 22.50 cm
-
HB-150W: 25.00 cm x 25.00 cm
-
HB-200W: 30.00 cm x 30.00 cm
