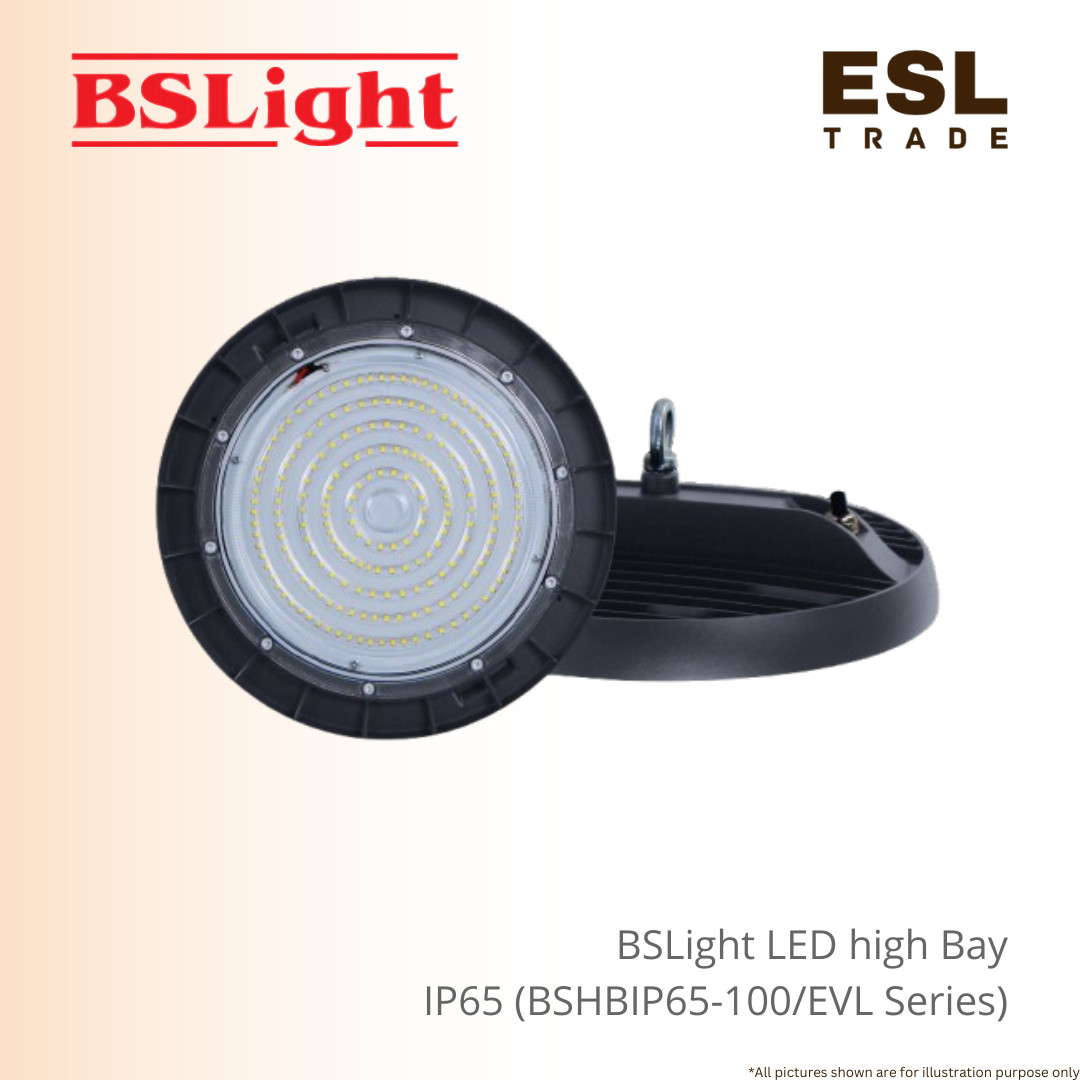

BSLight Evolution Series LED High Bay Light IP65 Rated High Brightness Warehouse Ceiling Fixture (100W / 150W / 200W) Exceptional Efficiency

Description

BSLight Evolution Series LED High Bay Light IP65 Rated High Brightness Warehouse Ceiling Fixture (100W / 150W / 200W) Exceptional Efficiency

Maximize your facility’s operational clarity with the high-performance BSLight Evolution Series LED High Bay.

Specially developed to meet modern industrial lighting demands, this commercial-grade luminaire serves as the ultimate choice for large-scale warehouse lighting, rugged factory lighting, and expansive big-box retail store lighting layouts.

Built from a robust solid aluminum die-casting housing combined with a resilient polycarbonate diffuser, the Evolution Series is specifically engineered to confidently withstand harsh industrial operating conditions while distributing exceptionally uniform illumination across high-ceiling setups.

A major engineering benefit of this series is its wide voltage driver adaptability, operating smoothly across an expansive input range of AC160-380V (50/60Hz).

This makes the fixture uniquely resilient against severe brownouts, voltage surges, and line drops common in heavy industrial manufacturing zones.

Incorporating high-brightness, long-life LED chips rated for a 25,000-hour operational lifespan, the fixture guarantees stable brightness over years of service while significantly lowering maintenance labor and bulb replacement costs.

Maintaining an efficient power factor of 0.90 and a Color Rendering Index (CRI >80), the fixture offers optimal visual clarity and safety for workers handling machinery or inventory.

It projects a focused 90° beam angle to reduce wasted spill light and direct illumination precisely where it is needed.

The system is built with a compact housing design that allows for adaptable output current adjustments, providing immense configuration flexibility.

Available in three scalable wattages to match diverse mounting heights

• 100W (13,000 LM),
• 150W (19,500 LM), and
• the top-tier 200W (26,000 LM)

the Evolution Series gives you a dependable, ruggedized layout tailored to your square footage.

Product Details

• Brand & Product Series : BSLight LED High Bay <<EVOLUTION SERIES>>
• Chassis Construction : Solid Aluminium Die-Casting Housing | Polycarbonate Diffuser
• Primary Applications : Ideal for Warehouse Lighting, Factory Lighting, Big-box Retail Stores
• Ingress Protection Level : IP65 Rated (Completely dust-tight and waterproof against low-pressure jets)
• Operational Lifespan : High Brightness & Long Life LED Chips (25,000 Hours Rating)
• Input AC Voltage & Freq. : AC 160 – 380V | 50/60Hz Extreme Wide Range Capability
• Power Factor (PF) / CRI : PF: 0.90 | Color Rendering Index: CRI > 80
• Beam Angle Spread : 90° Precision Focused Industrial Beam Spread
• Operating Temperature : -10°C ~ 50°C Ambient Working Envelope
• Design Feature : Compact Housing Layout with Output Current Adjustment Flexibility
• Maintenance Profile : Long-lasting and requires exceptionally low maintenance
• Model: BSHBIP65-100/EVL : 100W | 6500K | 13,000 LM | Size (Ø H): 270 x 102 | Weight: 1.0kg
• Model: BSHBIP65-150/EVL : 150W | 6500K | 19,500 LM | Size (Ø H): 300 x 104 | Weight: 1.2kg
• Model: BSHBIP65-200/EVL : 200W | 6500K | 26,000 LM | Size (Ø H): 330 x 105 | Weight: 1.6kg

Common FAQs for BSLight Evolution Series UFO LED High Bays

Q1: What makes the AC160-380V input capability of the Evolution Series so important?

A: Industrial zones often run heavy machinery that can drop or spike grid voltage abruptly. The advanced driver in the Evolution Series supports a broad operational spectrum from AC160V up to 380V, meaning the fixture won’t burn out or flicker even if the power grid experiences severe voltage volatility or phase swings.

Q2: Can this high bay light handle harsh industrial environments with moisture or heavy dust?

A: Yes, the Evolution Series features an IP65 ingress protection rating. This means the casing is entirely dust-tight and fully sealed against multi-directional water spray, allowing it to be used safely in unconditioned warehouses, processing plants, and damp industrial zones.

Q3: How does the solid aluminum die-cast body benefit the fixture over time?

A: The heavy-duty solid aluminum die-casting housing functions as a massive heat sink. It draws thermal energy away from the critical internal LED chips, helping maintain high luminous efficacy and ensuring the fixture reaches its full 25,000-hour rated working life.

Q4: What ceiling mounting heights are recommended for the 100W, 150W, and 200W options?

A: The 90° beam angle is optimized for medium-to-high ceilings. The 100W model (13,000 LM) works well for heights of 5–7 meters, the 150W model (19,500 LM) is excellent for 6–9 meters, and the high-output 200W model (26,000 LM) easily projects crisp ground lux levels from mounting heights of 8 meters and above.

Q5: What color appearance does the 6500K rating provide on the warehouse floor?

A: A color temperature of 6500K represents Daylight white illumination. This ultra-crisp, cool white light is the commercial industry standard for warehouses and manufacturing spaces because it enhances alertness, reduces eye strain, and optimizes visibility for reading labels and picking inventory.
