Description

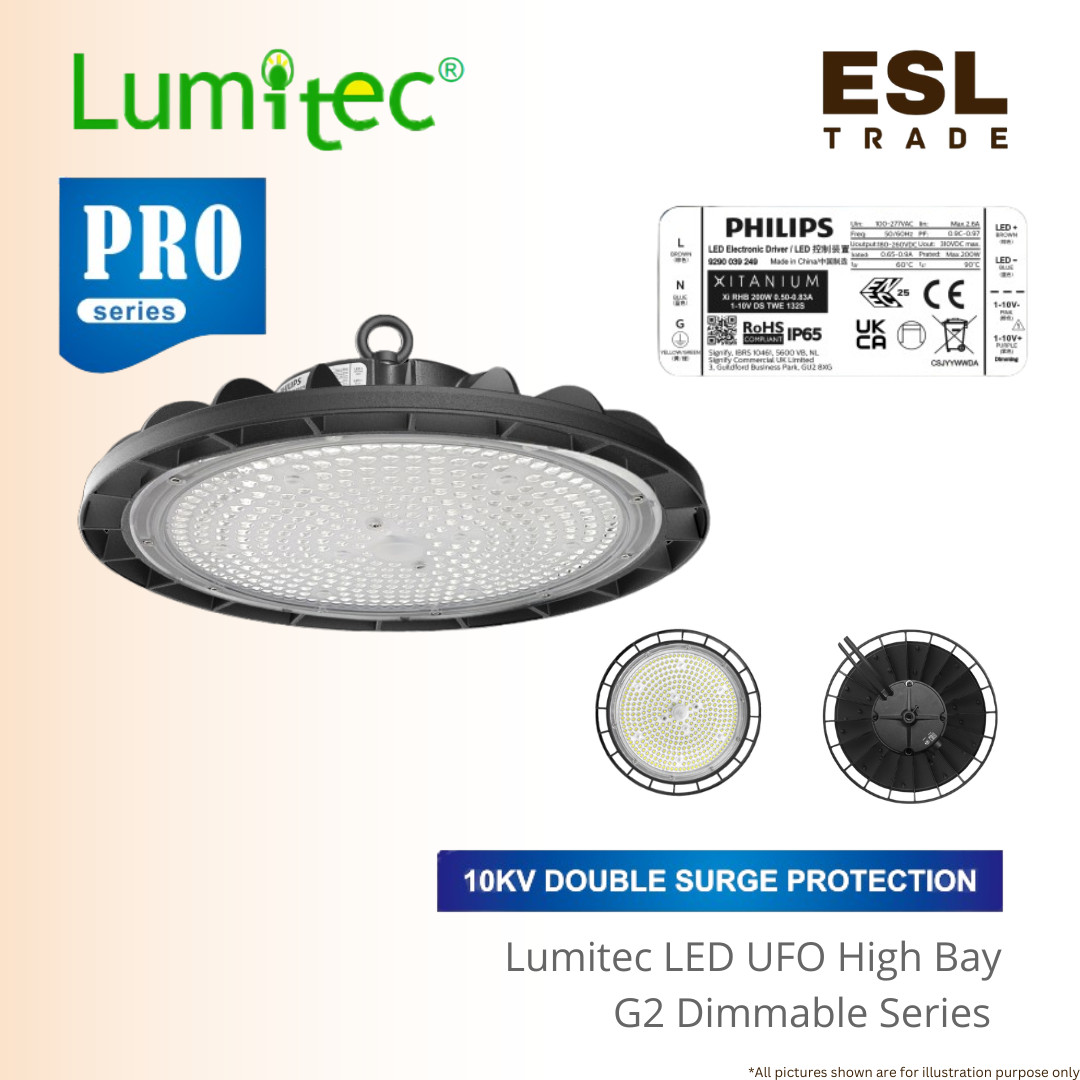

Lumitec PRO G2 LED UFO High Bay Dimmable 100W-200W Philips Driver & Lumileds Excellent for Industrial Warehouse Lighting
The Lumitec PRO G2 LED UFO High Bay Luminaire delivers high-efficiency illumination engineered for heavy-duty commercial and industrial environments, including warehouses, manufacturing plants, distribution hubs, and large retail halls.
Lumitec PRO G2 LED UFO High Bay is constructed with a die-cast aluminum body and an impact-resistant PC lens, the fixture is built to withstand demanding indoor operational settings.
It holds an IP65 ingress protection rating, SIRIM approval, CE certification, and RoHS compliance, backed by a 5-year warranty and a rated operational lifespan of 50,000 hours.
The core driver for Lumitec PRO G2 LED UFO High Bay is consists of a Philips Xitanium driver operating on AC100-265V (50/60Hz) paired with Philips Lumileds LED beads.
To protect electrical components against power fluctuations and voltage spikes, the luminaire comes equipped with an external 10KV double anti-surge protection device.
The Lumitec PRO G2 LED UFO High Bay series is available in three wattage options 100W (15,000 lm), 150W (22,500 lm), and 200W (30,000 lm) delivering a luminous efficacy of 150 lm/W at 6500K daylight color temperature with a power factor rating of 0.9.
For energy management, the Lumitec PRO G2 LED UFO High Bay series includes built-in brightness adjustment features.
It supports external 0/1-10V dimming wiring as well as onboard physical power tuning.
Using an internal dip switch setup, operators can adjust maximum output levels between 60% (Low), 80% (Mid), and 100% (High) power settings, alongside micro-screwdriver current fine-tuning.
This combination of Philips drive technology, 10KV surge suppression, and flexible dimming capabilities makes the Lumitec PRO G2 LED UFO High Bay Series a reliable lighting solution for high-ceiling industrial facilities
Product Detail
| Product Code | Bar Code | Wattage (W) | Lumens Output (lm) | Efficacy (lm/W) | Light Source / Driver | Input Voltage | Surge Protection | CCT (K) | Power Factor | Dimmable / Control | IP Grade | Certifications | Lifetime / Warranty |
| LMTP-LEHBG2-100DS | 9551029550775 | 100W | 15,000 lm | 150 lm/W | Philips Lumileds / Philips Driver | AC100-265V (50/60Hz) | 10KV Double Surge Device | 6500K | 0.9 | Yes (0/1-10V & Switch) | IP65 | SIRIM, CE, RoHS | 50,000 hrs / 5 Years |
| LMTP-LEHBG2-150DS | 9551029550782 | 150W | 22,500 lm | 150 lm/W | Philips Lumileds / Philips Driver | AC100-265V (50/60Hz) | 10KV Double Surge Device | 6500K | 0.9 | Yes (0/1-10V & Switch) | IP65 | SIRIM, CE, RoHS | 50,000 hrs / 5 Years |
| LMTP-LEHBG2-200DS | 9551029550799 | 200W | 30,000 lm | 150 lm/W | Philips Lumileds / Philips Driver | AC100-265V (50/60Hz) | 10KV Double Surge Device | 6500K | 0.9 | Yes (0/1-10V & Switch) | IP65 | SIRIM, CE, RoHS | 50,000 hrs / 5 Years |
Note: Material: Die-cast aluminum body with PC lens.
Frequently Asked Questions (FAQ)
Q: What LED chips and driver modules are integrated into the Lumitec PRO G2 series?
A: The luminaire uses Philips Lumileds LED beads and a Philips Xitanium driver operating within an AC100-265V (50/60Hz) range.
Q: How does the onboard dimming and power selection feature work?
A: In addition to external 0/1-10V dimming connections, the fixture features an onboard dip switch to cap maximum power output at 60% (Low), 80% (Mid), or 100% (High), alongside a current fine-tuning screw under the protective cover.
Q: What surge protection features are included?
A: The luminaire is equipped with an external 10KV double anti-surge protection device to guard against power surges and voltage spikes.
Q: What certifications and warranty coverage does the Lumitec PRO G2 hold?
A: The fixture is SIRIM approved, CE certified, and RoHS compliant, supported by a 5-year warranty and a 50,000-hour rated lifespan
