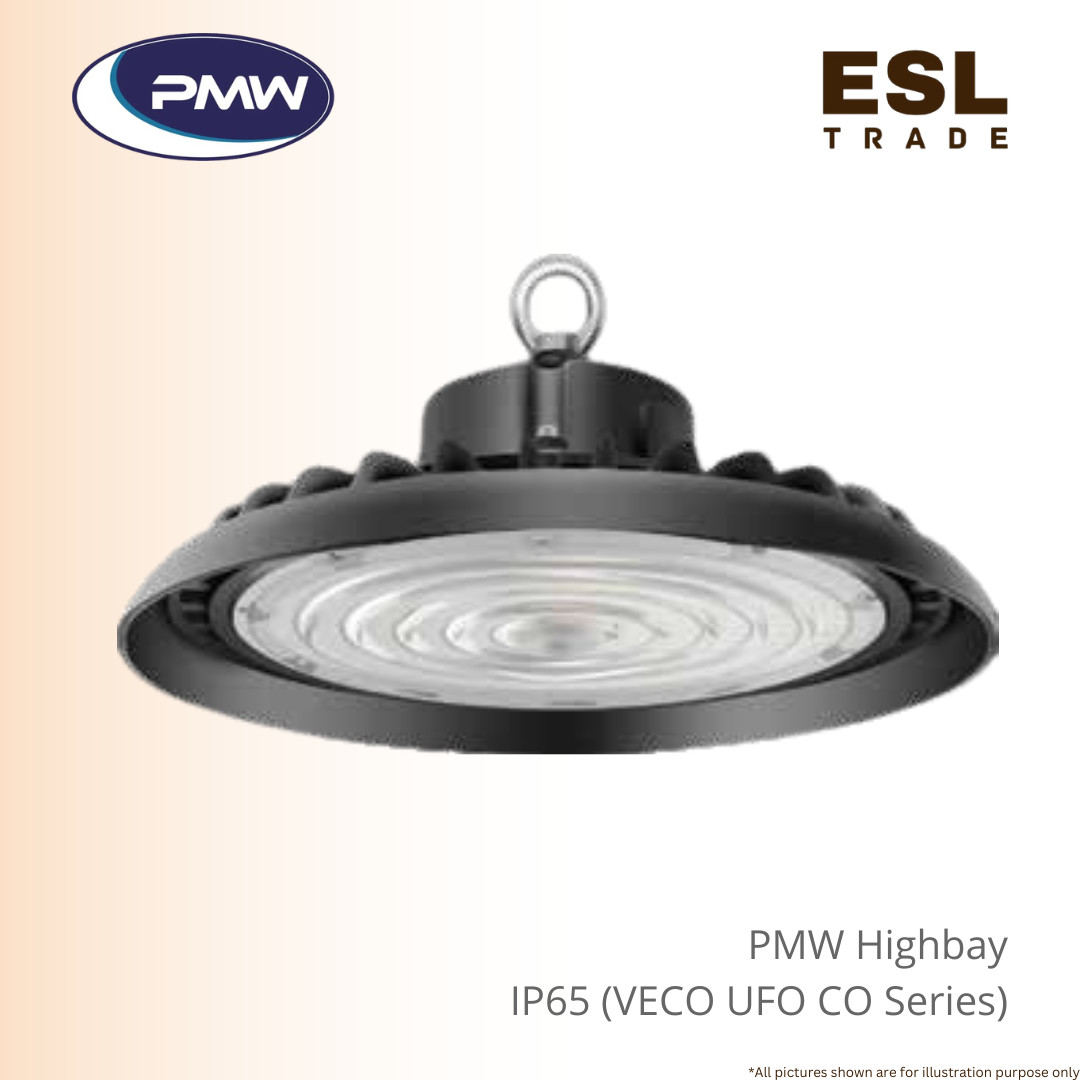

PMW VECO UFO CO Series LED High Bay Light 70W-240W IP65 Excellent Polycarbonate Optics Warehouse & Industrial
The PMW VECO UFO CO Series LED High Bay Light provides high-efficacy industrial and commercial illumination for warehouses, manufacturing plants, repair or automotive facilities, indoor swimming pools, gymnasiums, and cold storage areas.
The PMW VECO UFO CO Series LED High Bay Light is constructed with a die-cast aluminum housing finished in durable outdoor epoxy powder coating, the luminaire is built to perform in challenging environments.
The PMW VECO UFO CO Series LED High Bay Light optic assembly incorporates a high-transmittance polycarbonate cover available in 90° and 120° optical beam spread options to match varying ceiling heights and illumination requirements.
Engineering for environmental versatility, the fixture holds an IP65 ingress protection rating and is rated for operation in ambient temperature conditions ranging from -40°C to +45°C.
This wide temperature threshold makes it suitable for extreme settings like cold storage facilities and high-heat industrial spaces.
The light engine delivers a Color Rendering Index of Ra80 and maintains a rated operational LED lifespan of 50,000 hours.
The VECO UFO CO Series includes seven power models:
- 70W (12,250 lm),
- 80W (14,000 lm),
- 100W (17,500 lm),
- 120W (21,000 lm),
- 150W (26,250 lm),
- 200W (35,000 lm), and
- 240W (42,000 lm), operating at an efficacy of 175 lm/W.
Available correlated color temperatures (CCT) include 4000K neutral white, 5000K daylight, and 5700K cool daylight.
Supporting both Bracket and Loop mounting options, the PMW VECO UFO CO Series offers a dependable high-ceiling lighting solution for industrial applications
Product Detail
PMW VECO UFO CO
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Efficacy (lm/W) | Color Temp (CCT) | Optical Options | Diameter ∅ (mm) | Height H (mm) | Weight (kg) | IP Rating / Lifespan | Working Temp Range | Body Material / Lens | Mounting Options |
| 01.HBVU7COX070.00 | HBVU7070 | 70W | 12,250 lm | 175 lm/W | 4000K, 5000K, 5700K | 90°, 120° | 254 mm | 150 mm | 1.80 kg | IP65 / 50,000H | -40°C to +45°C | Die-Cast Aluminum,
PC Lens |
Loop, Bracket |
| 01.HBVU7COX080.00 | HBVU7080 | 80W | 14,000 lm | 175 lm/W | 4000K, 5000K, 5700K | 90°, 120° | 254 mm | 150 mm | 1.80 kg | IP65 / 50,000H | -40°C to +45°C | Die-Cast Aluminum,
PC Lens |
Loop, Bracket |
| 01.HBVU7COX100.00 | HBVU7100 | 100W | 17,500 lm | 175 lm/W | 4000K, 5000K, 5700K | 90°, 120° | 254 mm | 150 mm | 1.80 kg | IP65 / 50,000H | -40°C to +45°C | Die-Cast Aluminum,
PC Lens |
Loop, Bracket |
| 01.HBVU7COX120.00 | HBVU7120 | 120W | 21,000 lm | 175 lm/W | 4000K, 5000K, 5700K | 90°, 120° | 309 mm | 156 mm | 2.20 kg | IP65 / 50,000H | -40°C to +45°C | Die-Cast Aluminum,
PC Lens |
Loop, Bracket |
| 01.HBVU7COX150.00 | HBVU7150 | 150W | 26,250 lm | 175 lm/W | 4000K, 5000K, 5700K | 90°, 120° | 309 mm | 156 mm | 2.20 kg | IP65 / 50,000H | -40°C to +45°C | Die-Cast Aluminum,
PC Lens |
Loop, Bracket |
| 01.HBVU7COX200.00 | HBVU7200 | 200W | 35,000 lm | 175 lm/W | 4000K, 5000K, 5700K | 90°, 120° | 354 mm | 161 mm | 2.90 kg | IP65 / 50,000H | -40°C to +45°C | Die-Cast Aluminum,
PC Lens |
Loop, Bracket |
| 01.HBVU7COX240.00 | HBVU7240 | 240W | 42,000 lm | 175 lm/W | 4000K, 5000K, 5700K | 90°, 120° | 354 mm | 161 mm | 2.90 kg | IP65 / 50,000H | -40°C to +45°C | Die-Cast Aluminum,
PC Lens |
Loop, Bracket |
Note: Finished in outdoor epoxy powder coating. CRI: Ra80. Specifications and dimensions subject to change without notice
Frequently Asked Questions (FAQ)
Q: Can the PMW VECO UFO CO Series be used in cold storage facilities?
A: Yes, the luminaire is rated to operate in ambient temperatures as low as -40°C up to +45°C, making it suitable for cold storage and freezer applications.
Q: What installation and mounting options are available for this high bay light?
A: The VECO UFO CO Series supports two mounting options: Loop mounting (for hook or chain suspension) and Bracket mounting.
Q: What beam angle options are available for optical control?
A: The polycarbonate optical lens is available in two beam angle configurations: 90° (suited for medium-to-high ceilings) and 120° (suited for wider light distribution).
Q: What is the housing finish and IP protection rating?
A: The body is made from die-cast aluminum finished with an outdoor epoxy powder coating and carries an IP65 protection rating against dust and water ingress.
