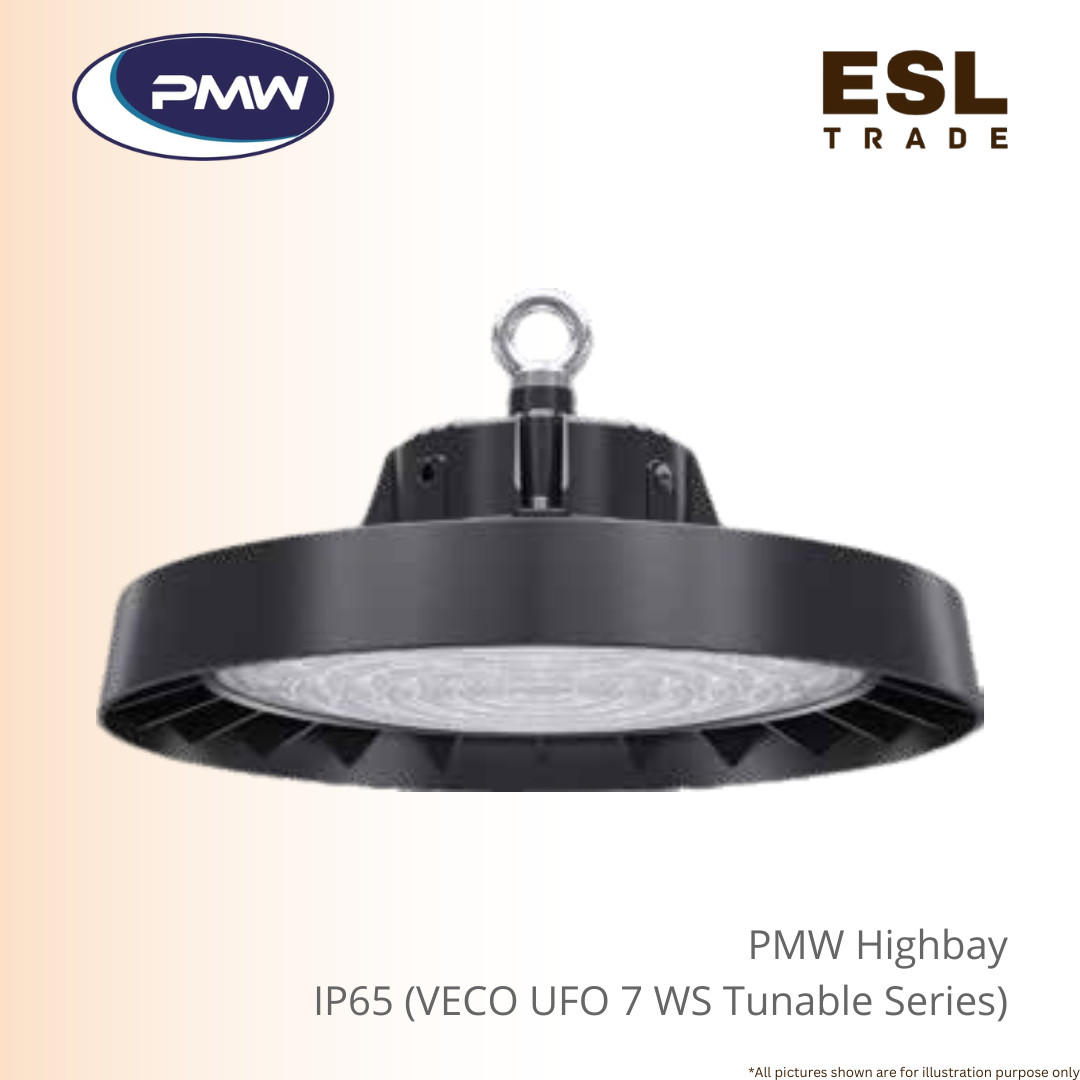

PMW VECO UFO 7 WS TUNABLE Series LED High Bay Light 75W-200W IP65 100000H Lifespan Warehouse & Industrial Reliable
The PMW VECO UFO 7 WS TUNABLE Series LED High Bay Light is engineered to meet severe performance demands in industrial and commercial environments, including warehouses, manufacturing facilities, automotive repair shops, gymnasiums, indoor swimming pools, and cold storage units.
PMW VECO UFO 7 WS TUNABLE Series LED High Bay is constructed with a die-cast aluminum body and protected by an outdoor epoxy powder coating, the luminaire features an optical cover made of optical polycarbonate, offering a 90° beam distribution to maximize target illumination across medium to high ceiling setups.
PMW VECO UFO 7 WS TUNABLE Series LED High Bay is engineered for high environmental endurance, the fixture carries an IP65 ingress protection rating and operates reliably across an ambient temperature range from -40°C to +45°C.
The luminaire features an operational lifespan of 50,000 hours to 100,000 hours while maintaining a Color Rendering Index of Ra80.
For versatile illumination configurations, each model features tunable color temperatures across 3000K warm white, 4000K neutral white, and 5000K daylight.
The VECO UFO 7 WS TUNABLE Series comes in five wattage options:
- 75W (11,250 lm),
- 100W (15,000 lm),
- 120W (18,000 lm),
- 150W (22,500 lm), and
- 200W (30,000 lm), delivering a luminous efficacy of 150 lm/W.
Mounting adaptability is supported via Loop or Bracket mounting options, and optional Reflector accessories are available to refine optical control.
Combining field-selectable color tuning, robust die-cast construction, and extended lifespan performance, the PMW VECO UFO 7 WS TUNABLE Series provides a long-term lighting solution for high-bay facility applications.
Product Detail
PMW VECO UFO 7 WS TUNABLE
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Efficacy (lm/W) | Color Temp (CCT) | Optical Options | Diameter ∅ (mm) | Height H (mm) | Weight (kg) | IP Rating / Lifespan | Working Temp Range | Body Material / Lens | Optional Accessories | Mounting Options |
| 01.HBVU9WST075A.00 | HBVU9080 | 75W | 11,250 lm | 150 lm/W | 3000K, 4000K, 5000K | 90° | 248 mm | 158 mm | 1.65 kg | IP65 / Up to 100,000H | -40°C to +45°C | Die-Cast Aluminum,
PC Lens |
Reflector | Loop, Bracket |
| 01.HBVU9WST100A.00 | HBVU9100 | 100W | 15,000 lm | 150 lm/W | 3000K, 4000K, 5000K | 90° | 248 mm | 158 mm | 1.65 kg | IP65 / Up to 100,000H | -40°C to +45°C | Die-Cast Aluminum,
PC Lens |
Reflector | Loop, Bracket |
| 01.HBVU9WST120B.00 | HBVU9120 | 120W | 18,000 lm | 150 lm/W | 3000K, 4000K, 5000K | 90° | 308 mm | 168 mm | 2.15 kg | IP65 / Up to 100,000H | -40°C to +45°C | Die-Cast Aluminum,
PC Lens |
Reflector | Loop, Bracket |
| 01.HBVU9WST150B.00 | HBVU9150 | 150W | 22,500 lm | 150 lm/W | 3000K, 4000K, 5000K | 90° | 308 mm | 168 mm | 2.15 kg | IP65 / Up to 100,000H | -40°C to +45°C | Die-Cast Aluminum,
PC Lens |
Reflector | Loop, Bracket |
| 01.HBVU9WST200C.00 | HBVU9200 | 200W | 30,000 lm | 150 lm/W | 3000K, 4000K, 5000K | 90° | 360 mm | 174 mm | 2.65 kg | IP65 / Up to 100,000H | -40°C to +45°C | Die-Cast Aluminum,
PC Lens |
Reflector | Loop, Bracket |
Note: Finish: Outdoor epoxy powder coating. Color Rendering Index: CRI Ra80. Specifications and dimensions subject to change without notice
Frequently Asked Questions (FAQ)
Q: What does the “TUNABLE” feature mean for the PMW VECO UFO 7 WS Series?
A: The luminaire allows selection across three distinct correlated color temperatures (CCT): 3000K warm white, 4000K neutral white, and 5000K daylight.
Q: Is this high bay luminaire suitable for low-temperature environments like cold storage?
A: Yes, the fixture is rated for operation across working ambient temperatures ranging from -40°C up to +45°C.
Q: What mounting options and accessories are compatible with this luminaire?
A: The fixture supports both Loop and Bracket mounting methods and can be customized with an optional Reflector accessory.
Q: What is the rated lifespan and ingress protection level of the luminaire? A: The unit holds an IP65 protection rating against dust and water entry and delivers an extended LED lifespan of up to 100,000 hours.
