Description

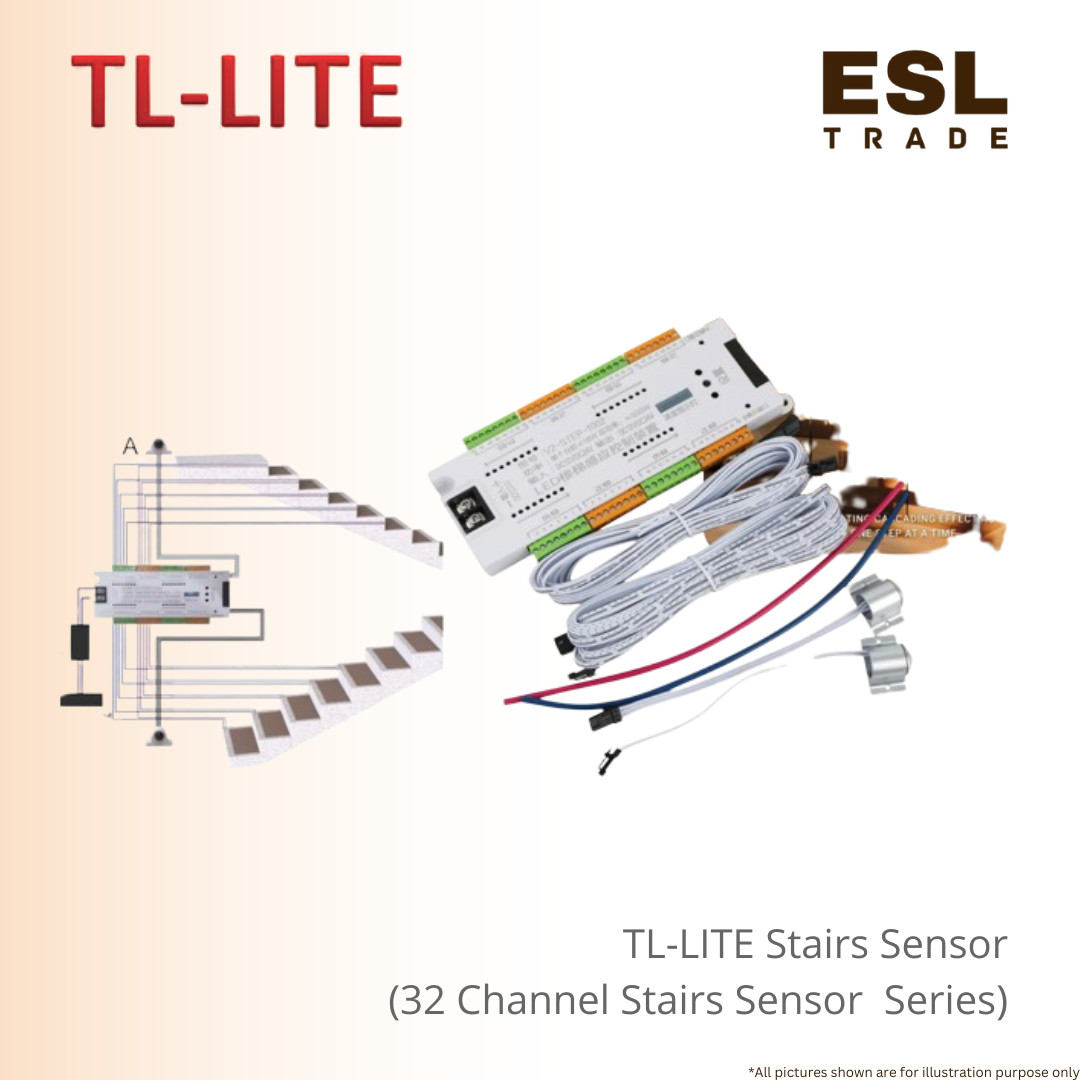

TL-LITE 32-Channel Intelligent PIR Motion Sensor Stair Light Controller DC12V-24V Multi-Mode Automatic Sequential Lighting Module for Smart Home Staircase LED Strips
Elevate the safety, luxury, and modern appeal of any interior with the premium TL-LITE 32-Channel Intelligent PIR Motion Sensor Stair Light Controller.
TL-LITE 32-Channel Intelligent PIR Motion Sensor Stair Light Controller is engineered to transform a traditional staircase into an automated architectural masterpiece, this sophisticated hub drives low-voltage DC12V to DC24V constant voltage LED strips with flawless performance.
Equipped with two ultra-sensitive passive infrared (PIR) motion sensors positioned at the top and bottom of the stairs the module automatically tracks human movement direction, cascading the lighting sequentially step-by-step as you walk up or down.
TL-LITE 32-Channel Intelligent PIR Motion Sensor Stair Light Controller is designed with versatile customizability in mind, this multi-channel controller features an integrated digital screen and tactile programming buttons that let installers fine-tune the system without complex software tools.
Users can seamlessly cycle through four distinct working modes, adjust the sequential illumination speed across multiple grades, change brightness settings, and set customized turn-off delay intervals.
It also includes an integrated daylight sensor threshold option to conserve energy by disabling operation when ambient natural light is sufficient.
Perfect for modern villas, hotels, and upscale retail perimeters, this controller handles up to 32 individual steps.
For massive commercial structures, it supports a smart cascading feature, allowing two independent units to link together and expand step capacity effortlessly.
Protected by reverse polarity safety frameworks and a durable, heat-dissipating housing, it is the ultimate reliable upgrade for smart architectural automation.
Product Details
| Product Feature / Parameter | Technical Specifications & Details |
| Brand | TL-LITE (TL Electric & Lighting) |
| Product Category | Intelligent Motion Sensor Stair Light Controller |
| Channel Capacity | 32 Channels Output (Controls up to 32 Individual Steps) |
| Input Working Voltage | DC12V / DC24V Low Voltage Constant Current Input |
| Output Type | Low Voltage Constant Voltage Drive |
| Sensor Equipment Inclusions | 2 x PIR Motion Sensors (For Top & Bottom Direction Tracking) |
| Control Interfaces | Integrated Onboard Digital Display with 3 Adjustment Buttons |
| Selectable Operating Modes | 4 Pre-Programmed Adjustable Working Modes |
| Adjustability Grades | Speed, Brightness Levels, and Turn-Off Delay Synchronization |
| System Expansion | Cascade Compatible (Connect 2 units together for higher step counts) |
| Built-in Power Savings | Integrated Daylight Lux Sensor Threshold setting |
| Safety System Guardrails | Reverse Polarity and Electrical Failure Overload Protections |
| Primary Structural Uses | Smart Home Stairways, Commercial Atriums, Luxury Hotels, Multi-floor Offices, Cinema Step Outlines |
