Description

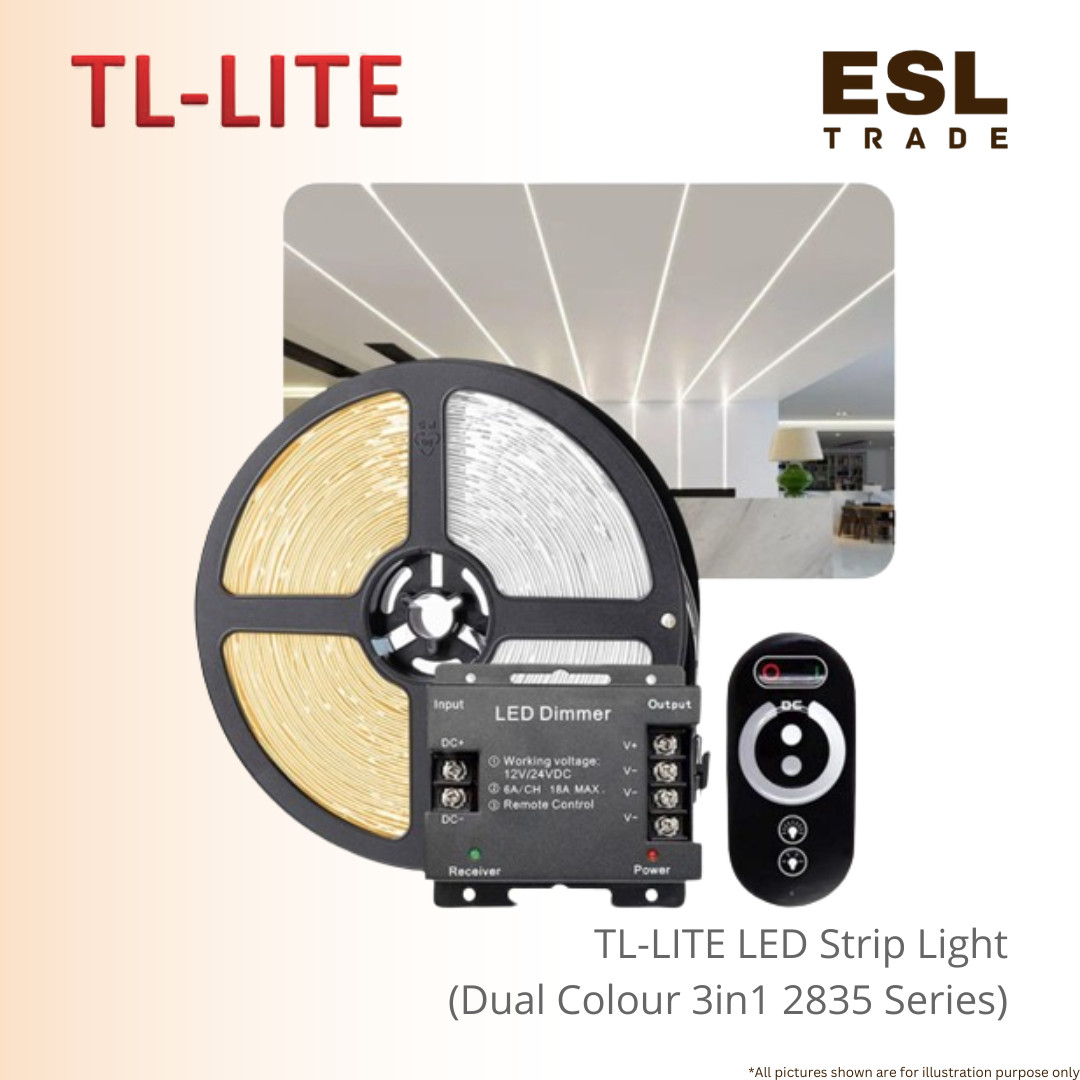

TL-LITE 10M DC24V Dual Colour 3-in-1 LED Strip Light Kit 2835 SMD 192LED/m Tape with RF Remote & Touchable Dimmer Controller Set
Take complete command of your interior atmosphere with the comprehensive TL-LITE 10M DC24V Dual Colour 3-in-1 LED Strip Light Kit.
This TL-LITE 10M DC24V Dual Colour 3-in-1 LED Strip Light Kit all-in-one professional package combines a high-density, flexible SMD tape light with a high-performance RF Remote and Touchable Dimmer Controller.
Designed for seamless architectural and decorative integration, this system allows you to easily switch and dim between three distinct lighting states Warm White (3000K), Daylight (6500K), and a combined 3-in-1 natural blend matching your lighting perfectly to the time of day or task at hand.
The premium strip light is built using dense 2835 SMD technology, packed with 192 LEDs per meter on a streamlined 8mm width PCB layout.
This high configuration yields an exceptional brightness output of 10-14 Lumens per LED while maintaining a highly efficient power consumption of 11W per meter.
With a wide 120° beam angle, it projects an expansive, uniform glow ideal for modern drop ceilings, linear wall recesses, and high-end office reception perimeters.
Managing your environment is effortless thanks to the included heavy-duty controller box and sleek, touch-sensitive wireless remote.
Operating on a stable common anode circuit with a massive control distance of over 20 meters, the RF receiver smoothly manages up to 6A per channel across 3 channels.
Featuring an ultra-precise 256 gray step dimming resolution per channel, it delivers completely flicker-free transitions.
Running on a safe-to-touch DC24V framework, this premium kit is the ultimate out-of-the-box solution for luxury residential and commercial ambiance upgrades.
Product Details
| Feature | Technical Specification |
| Brand | TL-LITE (TL Electric & Lighting) |
| LED Chip Type | 2835 SMD |
| LED Density | 192 LEDs per Meter |
| Total Roll Length | 10 Meters (10M) |
| Input Voltage | DC24V (Low Voltage / Safe to Touch) |
| Power Consumption | 11W per Meter |
| Luminous Output | 10 – 14 LM per LED |
| Beam Angle | 120° |
| PCB Board Width | 8mm |
| Color Temperature (CCT) | 3000K (Warm) / 6500K (Daylight) / 3-in-1 Dual Blend |
| Cuttability | 3 Cuttable (Tailorable Design) |
Included RF Dimmer Controller Specifications
| Controller Feature | Technical Specification |
| Controller Type | Intelligent RF Dimmer with Touchable Remote |
| Working Input Voltage | DC12V – DC24V Auto-Sensing |
| Max Load Current | 6A x 3 Channels (18A Max) |
| Total Power Output Capacity | 216W (at DC12V) / 432W (at DC24V) |
| Dimming Resolution | Premium 256 Step/Channel |
| Control Signal | RF Wireless (Radio Frequency) |
| Wireless Distance | >20 Meters Range |
| Wiring Connection | Common Anode |
| Remote Battery Power | 3 x AAA Batteries (Required) |
