Description

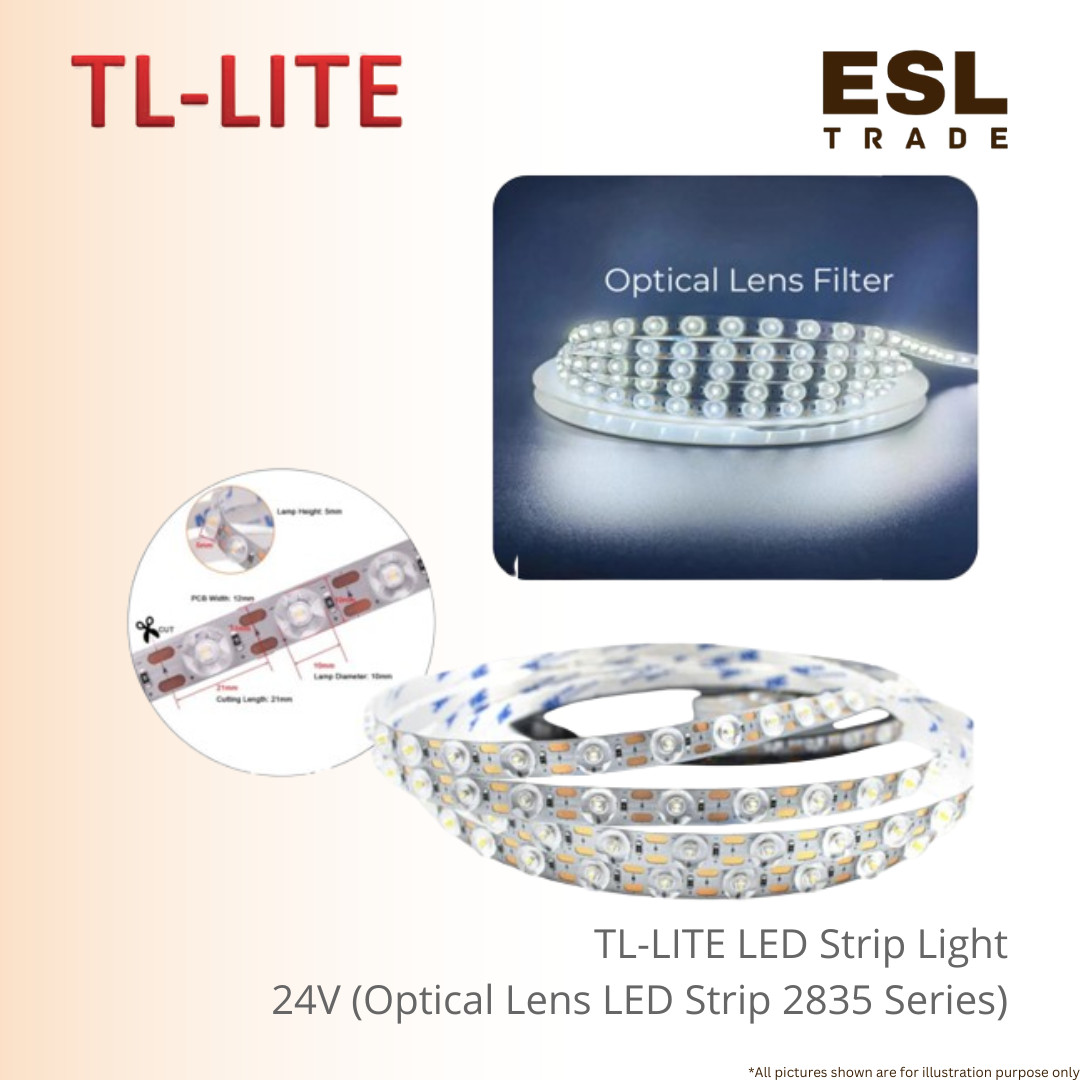

TL-LITE 24V 2835 Optical Lens LED Strip Light 1200LM/2400LM High-Intensity Flexible Tape Light with Uniform Spread Diffuser (10M/20M Roll, IP20)
Achieve flawless, hot-spot-free illumination over extensive architectural footprints with the innovative TL-LITE 24V 2835 Optical Lens LED Strip Light.
This TL-LITE 24V 2835 Optical Lens LED Strip Light next-generation flexible tape light features custom-engineered optical lens filters mounted over every individual surface-mount device (SMD).
These specialized micro-lenses strategically refract and diffuse the raw light source, completely softening harsh outputs and scattering the illumination uniformly across a broad coverage area.
This TL-LITE 24V 2835 Optical Lens LED Strip Light eliminates the unsightly “shadow dotting” or pixelation typical of open-chip LED ribbons, making it the premier choice for shallow light boxes, fabric stretch ceilings, and high-end commercial sign boards.
Running on a low-voltage DC24V framework for maximum operating safety and minimized thermal retention, this series offers serious configuration adaptability.
It features a reliable density of 48 LEDs per meter on a heavy-duty, premium full copper PCB base designed for superior heat dissipation and lasting performance continuity.
Depending on your installation scale, the product line features two targeted models: an efficient 16-20W/M variant spanning a 10-meter roll on an 8mm PCB width yielding 1200 Lumens, and an ultra-bright 18W variant spanning an impressive 20-meter single continuous run on an 11mm PCB width outputting a massive 2400 Lumens.
For unmatched flexibility during tight architectural framing, the strip employs an ultra-precise 1 LED 1 Cut tailorable design with a cutting length of just 21mm, meaning zero light waste at the end of channel lines.
Available in TL-LITE 24V 2835 Optical Lens LED Strip Light standard architectural whites (3000K Warm, 4000K Cool, and 6500K Daylight), this indoor-ready (IP20) optical strip represents the pinnacle of premium, high-intensity reliability.
Product Details
| Feature / Attribute | 10-Meter Specification | 20-Meter Specification |
| Brand | TL-LITE (TL Electric & Lighting) | TL-LITE (TL Electric & Lighting) |
| Product Type | 24V 2835 Optical Lens LED Strip | 24V 2835 Optical Lens LED Strip |
| Special Technology | Built-in Optical Lens Filter (Soft Light Spread) | Built-in Optical Lens Filter (Soft Light Spread) |
| Input Voltage | DC24V (Safe Low-Voltage Input) | DC24V (Safe Low-Voltage Input) |
| Power Consumption | 16W – 20W per Meter | 18W (Fixed Stability Optimization) |
| Luminous Output | 1200 Lumens | 2400 Lumens |
| LED Density | 48 LEDs per Meter | 48 LEDs per Meter |
| Cuttability Interval | 1 LED 1 CUT (21mm Cutting Length) | 1 LED 1 CUT (21mm Cutting Length) |
| PCB Board Width | 8mm Width | 11mm Width |
| PCB Base Material | Full Copper Layout | Full Copper Layout |
| Available Colors (CCT) | 6500K (Daylight) / 3000K (Warm) / 4000K (Cool) | 3000K (Warm White Dedicated) |
| Physical Dimensions | 24V (10 Meters per Roll) | 24V (20 Meters per Roll) |
| Ingress Protection (IP) | IP20 (Indoor Application Only) | IP20 (Indoor Application Only) |
| Lens Structural Size | Lamp Diameter: 10mm | Height: 5mm | Lamp Diameter: 10mm | Height: 5mm |
