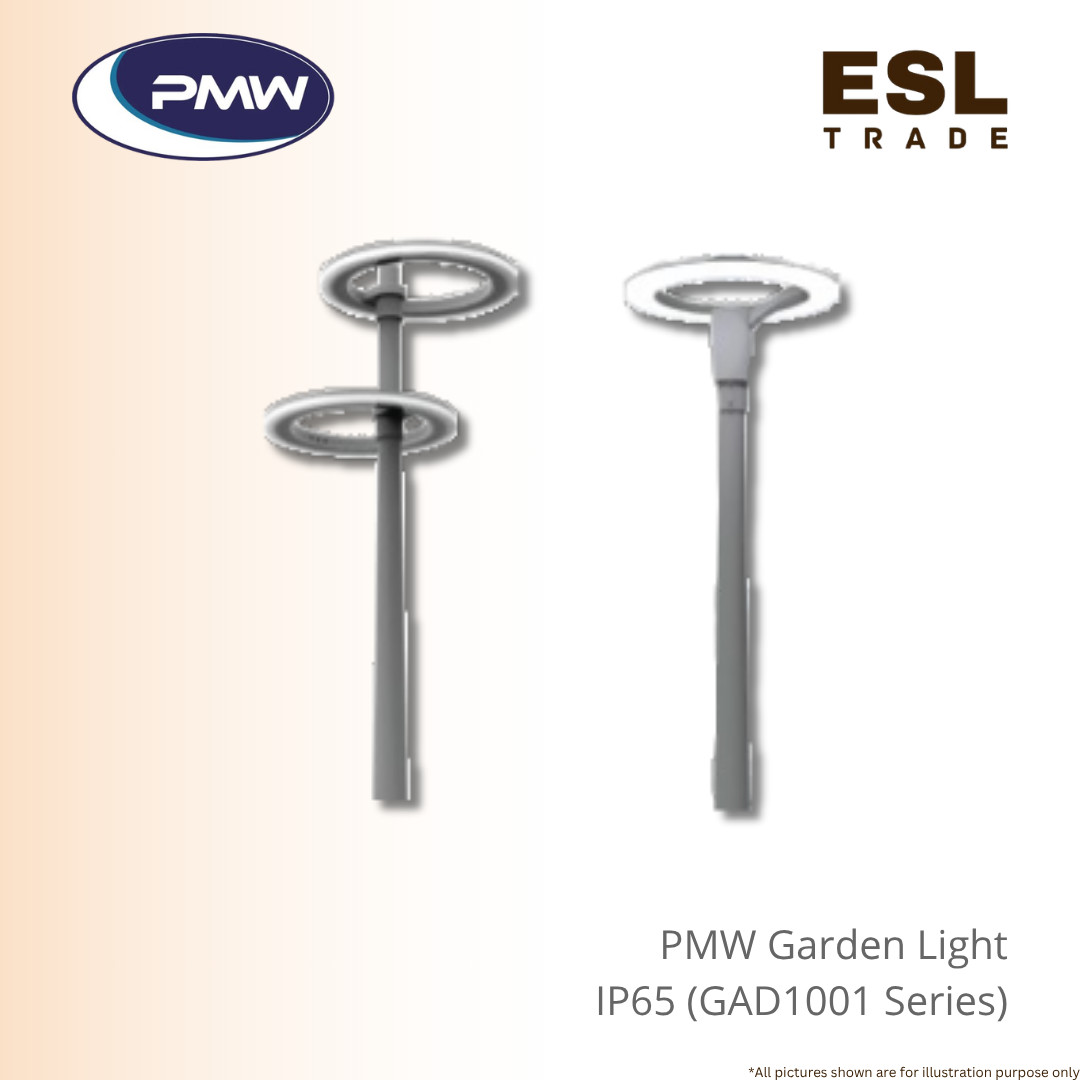

PMW GAD1001 Series Circular LED Garden Light Post Top 30W-60W Excellent for Die-Cast Aluminum IP65 Park & Pathway
The PMW GAD1001 Series Circular LED Garden Light Post Top is engineered to provide functional, aesthetically pleasing outdoor lighting for urban and residential environments.
The PMW GAD1001 Series Circular LED Garden Light Post Top is built with a rugged die-casting aluminum housing, the fixture features an electro-statically applied polyester powder coat finish.
This surface protection ensures excellent resistance against physical impact and environmental corrosion, maintaining structural integrity over long-term outdoor deployment.
Carrying an IP65 ingress protection rating, the luminaire effectively resists dust ingress and low-pressure water splashes, ensuring operational reliability across varied weather conditions.
Featuring a distinctive 520mm circular optical head design, the PMW GAD1001 Series Circular LED Garden Light Post Top series delivers smooth, even illumination to enhance safety and visual comfort in public and private spaces.
It mounts onto standard spigots ranging from 60mm to 76mm, offering compatibility with standard lighting poles.
The GAD1001 Series includes three power options:
-
GAD1001030 (30W): 3,000 lumens
-
GAD1001045 (45W): 4,500 lumens
-
GAD1001060 (60W): 6,000 lumens
All wattage configurations operate at an efficiency of 100 lm/W and are available in three color temperatures: 3000K warm white, 4000K neutral white, and 6500K cool daylight.
The PMW GAD1001 Series Circular LED Garden Light Post Top is designed for applications including residential compounds, public parks, open gardens, pedestrian walkways, and building perimeters, the PMW GAD1001 Series combines subtle architectural design with durable construction.
Product Detail
PMW GAD1001
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Efficacy (lm/W) | Color Temp (CCT) | Head Diameter | Head Height | Pole Spigot Entry | Ingress Rating | Materials & Finish | Features | Applications |
| 01.GAD1001030.00 | GAD1001030 | 30W | 3,000 lm | 100 lm/W | 3000K, 4000K, 6500K | 520 mm | 317 mm | Ø 60mm – Ø 76mm | IP65 | Die-Casting Aluminum, Electro-static Polyester Powder Coat | Impact & Corrosion Resistant | Compounds, Parks, Gardens, Walkways |
| 01.GAD1001045.00 | GAD1001045 | 45W | 4,500 lm | 100 lm/W | 3000K, 4000K, 6500K | 520 mm | 317 mm | Ø 60mm – Ø 76mm | IP65 | Die-Casting Aluminum, Electro-static Polyester Powder Coat | Impact & Corrosion Resistant | Compounds, Parks, Gardens, Walkways |
| 01.GAD1001060.00 | GAD1001060 | 60W | 6,000 lm | 100 lm/W | 3000K, 4000K, 6500K | 520 mm | 317 mm | Ø 60mm – Ø 76mm | IP65 | Die-Casting Aluminum, Electro-static Polyester Powder Coat | Impact & Corrosion Resistant | Compounds, Parks, Gardens, Walkways |
Note: Specifications and dimensions are subject to change without notice. Standard recommended pole mounting heights shown in layout diagrams range from 3500mm to 5000mm
Frequently Asked Questions (FAQ)
Q: What housing materials and protective finishes are used on the GAD1001 Series?
A: The fixture is constructed from die-casting aluminum finished with an electro-statically applied polyester powder coat, designed specifically for impact resistance and protection against environmental corrosion.
Q: What pole spigot sizes are compatible with this fixture head?
A: The luminaire mounting base is designed to fit standard pole top spigots with diameters between 60mm and 76mm.
Q: What correlated color temperature (CCT) options are available for this series?
A: The series is available in three CCT selections: 3000K warm white, 4000K neutral white, and 6500K cool daylight.
Q: What are the dimensions of the GAD1001 post top head?
A: The top circular head has an outer diameter of 520mm and a vertical fixture head height of 317mm.
