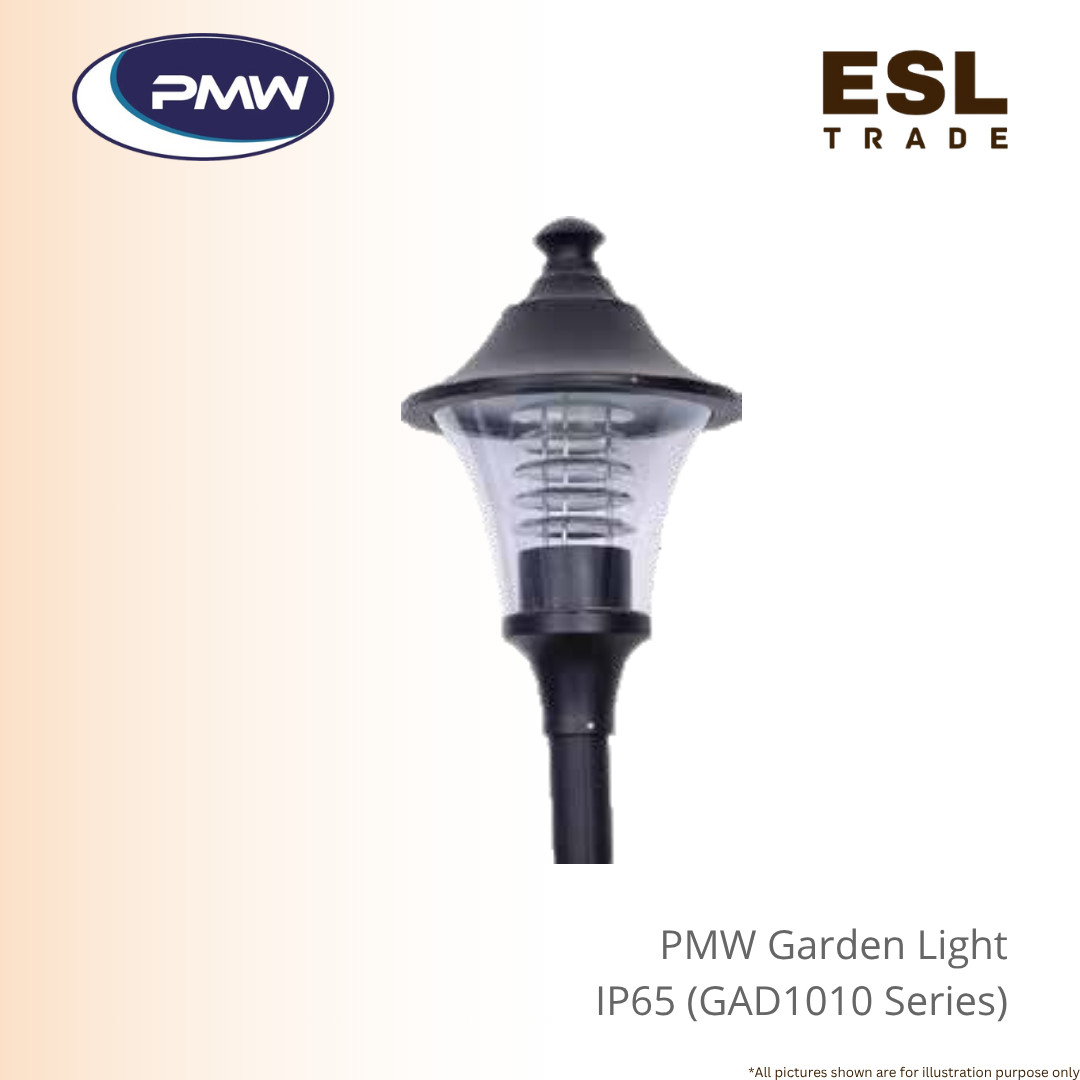

PMW GL1010 Series Post Top Garden Light Lumileds 3030 IP65 Excellent for Park & Pathway Used
The PMW GL1010 Series Post Top Garden Light offers a classic exterior luminaire design combined with commercial LED technology.
The PMW GL1010 Series Post Top Garden Light is constructed with a die-cast aluminum housing and a spinning aluminum top cover, this fixture provides durable physical protection against environmental weathering.
It incorporates a clear polycarbonate (PC) lens to ensure clean, high-transmittance optical output across surrounding areas.
The luminaire features high-efficiency Lumileds 3030 LED chips paired with an Inventronics driver designed for up to 5 years of lifetime performance.
Built to Class I electrical standards, the luminaire operates reliably on standard 110–240V / 50Hz supply lines.
It carries an IP65 protection rating to prevent dust ingress and resist water spray from outdoor rain or maintenance washdowns.
The PMW GL1010 Series Post Top Garden Light Series provides functional versatility through multiple power and lamp socket configurations:
-
GL1010025 (25W): 1,425 lumens
-
GL1010035 (35W): 2,000 lumens
-
GL1010060 (60W): 4,004 lumens
-
GL1010E27 (E27 Socket): Allows for interchangeable retrofit lamp installations
With an outer diameter of Ø 43mm, a vertical height of 675mm, and a standard Ø 76mm pole entry spigot, the unit mounts cleanly on standard landscape poles.
Engineered for applications across residential compounds, public parks, gardens, parking areas, street lighting, and pedestrian walkways, the PMW GL1010 Series delivers reliable exterior lighting for landscape projects.
Product Detail
PMW GL1010
| Product Code | Model Code | Power / Socket | Lumens (lm) | LED Source | Driver Brand / Specs | Ingress / Class | Diameter | Height | Spigot Entry | Weight (kg) | Construction Materials | Applications |
| 01.GL1010025.00 | GL1010025 | 25W | 1,425 lm | Lumileds 3030 | Inventronics (5-Yr Lifetime), 110-240V / 50Hz | IP65 / Class 1 | Ø435mm | 675 mm | Ø76mm | 4.5 kg | Die-Cast Aluminum, Spinning Aluminum Top Cover, Clear PC Lens | Compounds, Parks, Gardens, Parking, Walkways |
| 01.GL1010035.00 | GL1010035 | 35W | 2,000 lm | Lumileds 3030 | Inventronics (5-Yr Lifetime), 110-240V / 50Hz | IP65 / Class 1 | Ø435mm | 675 mm | Ø76mm | 4.5 kg | Die-Cast Aluminum, Spinning Aluminum Top Cover, Clear PC Lens | Compounds, Parks, Gardens, Parking, Walkways |
| 01.GL1010060.00 | GL1010060 | 60W | 4,004 lm | Lumileds 3030 | Inventronics (5-Yr Lifetime), 110-240V / 50Hz | IP65 / Class 1 | Ø435mm | 675 mm | Ø76mm | 4.5 kg | Die-Cast Aluminum, Spinning Aluminum Top Cover, Clear PC Lens | Compounds, Parks, Gardens, Parking, Walkways |
| 01.GL1010E27.00 | GL1010E27 | E27 Socket | Lamp Dependent | User Selected | Line Voltage, 110-240V / 50Hz | IP65 / Class 1 | Ø435mm | 675 mm | Ø76mm | 4.5 kg | Die-Cast Aluminum, Spinning Aluminum Top Cover, Clear PC Lens | Compounds, Parks, Gardens, Parking, Walkways |
Note: Specifications and dimensions are subject to change without notice. Standard recommended mounting pole height shown in layout diagrams is 3500mm
Frequently Asked Questions (FAQ)
Q: What driver and LED brand are integrated into the GL1010 fixed-wattage models?
A: The fixed-wattage fixtures utilize Lumileds 3030 LED chips paired with an Inventronics driver designed for a 5-year operating lifetime.
Q: What is the difference between the GL1010 wattage models and the GL1010E27 model?
A: Models GL1010025, GL1010035, and GL1010060 feature integrated LED engines and drivers. Model GL1010E27 comes fitted with a standard E27 screw socket, allowing installers to use retrofittable E27 LED bulbs.
Q: What pole spigot size is required to install the GL1010 post top lantern?
A: The mounting base of the GL1010 fixture is designed to fit onto a standard $\varnothing 76\text{mm}$ top pole spigot.
Q: What material is used for the optical diffuser?
A: The fixture utilizes a clear polycarbonate (PC) lens, which provides clear light transmission combined with impact resistance.
