Description

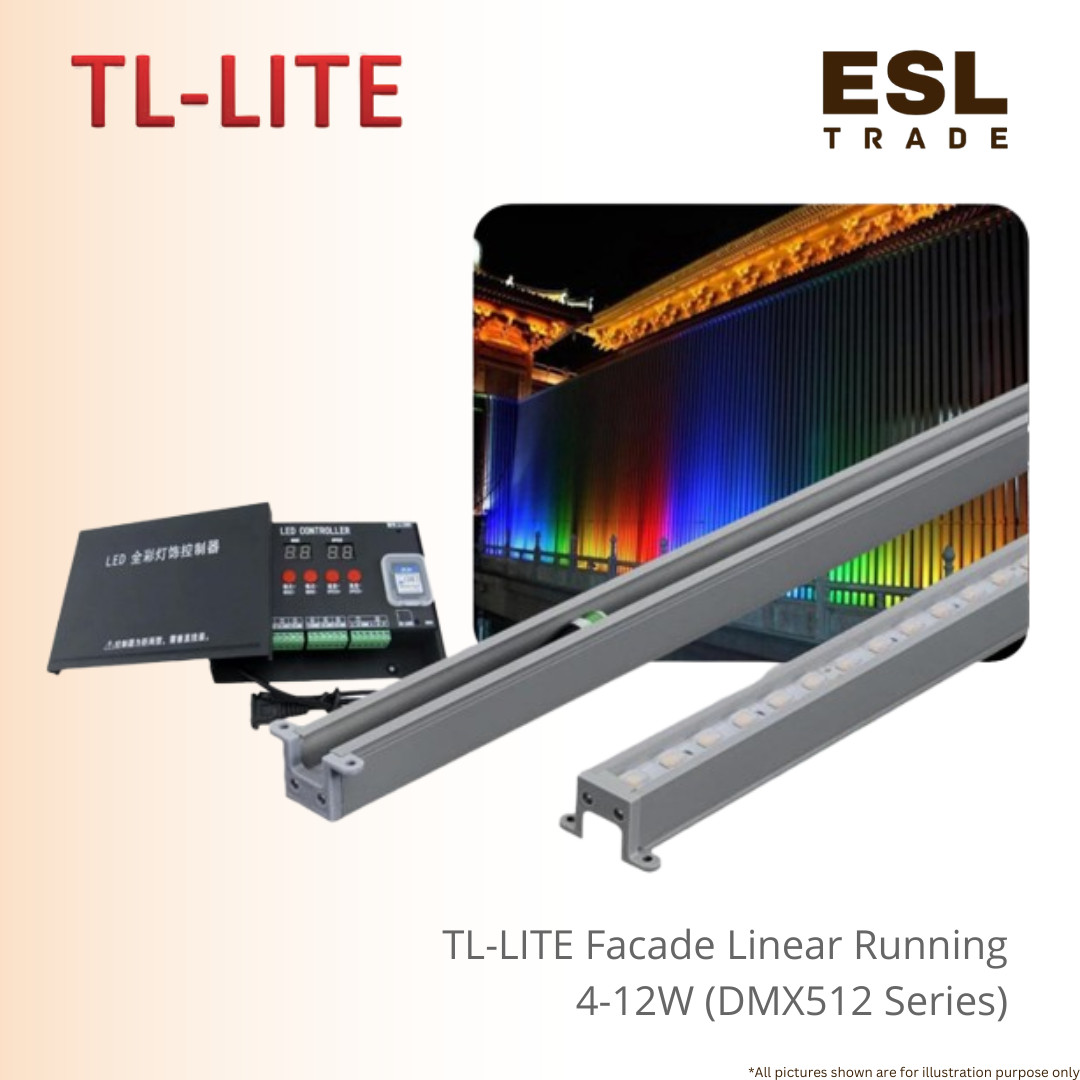

TL-LITE DMX512 Running Facade Linear Light Programmable DC24V RGB Full Colour Outdoor Architectural LED Profile (CRI>80, 50,000HRS)
Bring spectacular dynamic animation to your building’s exterior with the commercial-grade TL-LITE DMX512 Running Facade Linear Light.
Specially engineered by TL Electric & Lighting for advanced architectural entertainment setups, this programmable linear profile is the premier choice for illuminating modern skyscraper facades, hotel bridges, stadium perimeters, commercial strips, and heritage landmarks.
Equipped with full DMX512 protocol capability, this advanced exterior light integrates seamlessly with a DMX512 Controller to execute smooth chase effects, wave transitions, shifting color fades, and synchronized light shows.
Operating on a safe low-voltage DC24V system, this premium linear strip features an RGB Control Six Segments Full Colour output configuration.
This precise multi-segment design gives programmers fine-grained control over distinct sections of individual fixtures to form large, fluid digital media walls.
It projects light through a wide 120° Beam Angle, producing smooth, wide-spanning coverage that eliminates harsh shadows.
Backed by a high Color Rendering Index of CRI>80 and an outstanding luminous flux baseline of 1200, the structural design ensures your building’s nightly presentation is brilliant, punchy, and true to life.
The system is highly adaptive, offering four power and sizing tiers to suit various architectural modules: an ultra-compact 4W (12LED) model measuring 27 x 26 x 340 mm, an intermediate 8W (24LED) model at 27 x 26 x 680 mm, a 10W (30LED) model at 27 x 26 x 820 mm, and a full-length 12W (36LED) profile at 27 x 26 x 980mm.
Engineered to withstand grueling weather cycles, the fixture promises a remarkable 50,000-hour lifespan, drastically reducing maintenance and replacement overhead for high-rise installations.
Product Detail :
| Feature | Technical Specification Details |
| Brand | TL-LITE™ (TL Electric & Lighting) |
| Product Model / Sub-Category | DMX512 RUNNING Facade Linear / FAÇADE LINEAR DMX512 RUNNING |
| Input Voltage | DC24V (Safe Low Voltage) |
| Control Interface | DMX512 protocol compatible (DMX512 Controller shown for system use) |
| Color Control Technology | RGB CONRTOL SIX SEGMENTS FULL COLOUR |
| Color Rendering Index (CRI) | CRI>80 |
| Luminous Flux Baseline | 1200 |
| Optical Beam Angle | 120° Wide Flood |
| System Lifespan | 50,000 Lifespan Hours |
Available Models & Sizing Configurations
| Power Options | LED Count | Physical Dimensions (W×H×L) | Carton Quantity (CTN QTY) |
| 4W | 12 LED | 27 x 26 x 340mm | 50 PCS |
| 8W | 24 LED | 27 x 26 x 680mm | 10 PCS |
| 10W | 30 LED | 27 x 26 x 820mm | 20 PCS |
| 12W | 36 LED | 27 x 26 x 980mm | 20 PCS |
Key Features
-
Six-Segment DMX512 Scripting: Built with advanced internal multi-address decoding that splits each linear bar into 6 independently controllable running segments, unlocking fluid motion tracking, pulsing gradients, and custom video-mapping.
-
True-to-Life Color Accuracy: Features a high rating of CRI>80, ensuring that the full-color RGB output reflects beautifully and vibrantly off stone, concrete, or glass structural backdrops.
-
Aesthetic Low-Profile Shell: Crafted with a hyper-slim profile width of just $27\text{mm}$, ensuring the lighting tracks hide discretely during daylight hours and mount easily inside window trims, channels, or parapets.
-
Enduring Heavy-Duty Performance: Built to sustain a massive 50,000-hour operational life cycle, mitigating tricky and costly industrial high-rise access maintenance down the line.
