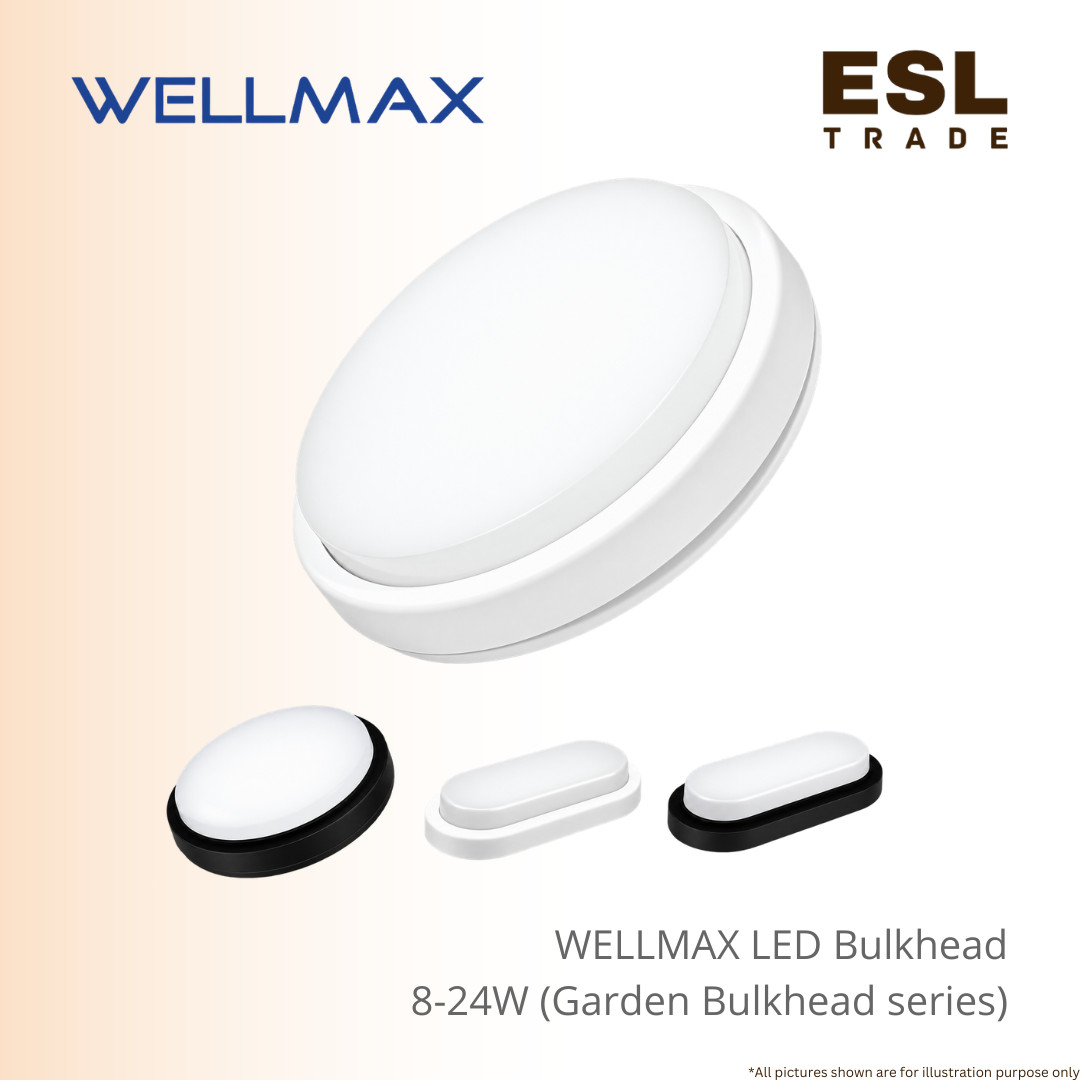

WELLMAX Garden Series Outdoor IP65 LED Bulkhead Light Frosted Anti-Glare Premium Weatherproof Wall & Ceiling Luminaire
The WELLMAX Garden Series Outdoor LED Bulkhead Light is a durable, energy-efficient illumination solution engineered specifically for modern outdoor and semi-outdoor environments.
Constructed with a rugged housing designed to withstand exterior elements, the luminaire features an IP65 ingress protection rating (with IP54 options available) that creates an effective seal against driving rain, dust ingress, and insect intrusion.
This makes the fixture an ideal lighting choice for residential garden walkways, building facades, balconies, outdoor corridors, and damp commercial spaces.
A key highlight of the Garden Series is its advanced frosted diffuser, which effectively softens harsh glare to output smooth, uniform visual light that minimizes eye discomfort.
Engineered with transport and logistics in mind, its compact profile and SKD-friendly (Semi-Knocked Down) modular design save storage space and simplify assembly for large-scale engineering and contractor projects.
Selected configurations also integrate built-in motion sensor capabilities, enabling automated hands-free operation and enhanced security for entryways and transit pathways.
Operating across versatile input voltages (100–240V or 220–240V) with a non-flicker wide voltage driver, the series generates light output up to 2160 lumens at a high luminous efficacy up to 90 lm/W.
Available in wattages ranging from 8W, 12W, and 18W up to 24W, the series comes in both sleek Round and compact Oval form factors.
It offers standard color temperatures including Warm White (3000K), Neutral White (4000K), and Daylight (6500K) with a Color Rendering Index (CRI ≥ 80) and a broad 120° beam distribution.
Rated for an operational lifespan of up to 15,000 hours, the fixture meets international quality benchmarks, holding full CE, LVD, RoHS, ErP, and EMC certifications.
Product Details :
| Model / Item Number | Shape / Form | Wattage (W) | Input Voltage (V) | Luminous Flux (lm) | Luminous Efficacy | Power Factor (PF) | Fixture Dimensions (L×W×H or ∅×H) | Color Temp (CCT) | Beam Angle | CRI | IP Rating | Lifetime (Hrs) | Compliance |
| UDP/MP/0/1/0 | Oval | 8W | 100–240V / 220–240V | 680 lm / 720 lm | Up to 90 lm/W | 0.5 | 160mm x 98mm x 60mm | 3000K / 4000K / 6500K | 120° | ≥ 80 | IP65 / IP54 | 15,000h | CE, LVD, RoHS, ErP,
EMC |
| UDP/MP/0/1/0 | Oval | 12W | 100–240V / 220–240V | 1020 lm / 1080 lm | Up to 90 lm/W | 0.5 | 200mm x 100mm x 60mm | 3000K / 4000K / 6500K | 120° | ≥ 80 | IP65 / IP54 | 15,000h | CE, LVD, RoHS, ErP,
EMC |
| UDP/MP/0/1/0 | Oval | 18W | 100–240V / 220–240V | 1530 lm / 1620 lm | Up to 90 lm/W | 0.5 | 230mm x 102mm x 67mm | 3000K / 4000K / 6500K | 120° | ≥ 80 | IP65 / IP54 | 15,000h | CE, LVD, RoHS, ErP,
EMC |
| UDP/MP/0/1/0 | Oval | 24W | 100–240V / 220–240V | 2040 lm / 2160 lm | Up to 90 lm/W | 0.5 | 230mm x 102 mm x 67mm | 3000K / 4000K / 6500K | 120° | ≥ 80 | IP65 / IP54 | 15,000h | CE, LVD, RoHS, ErP,
EMC |
| UDP/MP/SEN/1/M | Round | 8W | 100–240V / 220–240V | 680 lm / 720 lm | Up to 90 lm/W | 0.5 | Ø 155mm x 50mm | 3000K / 4000K / 6500K | 120° | ≥ 80 | IP65 / IP54 | 15,000h | CE, LVD, RoHS, ErP,
EMC |
| UDP/MP/SEN/1/M | Round | 12W | 100–240V / 220–240V | 1020 lm / 1080 lm | Up to 90 lm/W | 0.5 | Ø 175mm x 50mm | 3000K / 4000K / 6500K | 120° | ≥ 80 | IP65 / IP54 | 15,000h | CE, LVD, RoHS, ErP,
EMC |
| UDP/MP/SEN/1/M | Round | 18W | 100–240V / 220–240V | 1530 lm / 1620 lm | Up to 90 lm/W | 0.5 | Ø210mm x 50mm | 3000K / 4000K / 6500K | 120° | ≥ 80 | IP65 / IP54 | 15,000h | CE, LVD, RoHS, ErP,
EMC |
| UDP/MP/SEN/1/M | Round | 24W | 100–240V / 220–240V | 2040 lm / 2160 lm | Up to 90 lm/W | 0.5 | Ø 210mm x 50mm | 3000K / 4000K / 6500K | 120° | ≥ 80 | IP65 / IP54 | 15,000h | CE, LVD, RoHS, ErP,
EMC |
Frequently Asked Questions (FAQ)
Q : Is the WELLMAX Garden Bulkhead Light completely waterproof for outdoor use?
A : Yes, the series features IP65 weather protection (with IP54 variants), which effectively seals the luminaire against rain, splashing water, dust, and insect ingress.
Q : Does the diffuser prevent harsh glare?
A : Yes, the fitting incorporates a high-quality frosted diffuser designed to soften light output, providing visual comfort without harsh glare.
Q : Are motion sensor models available in this series?
A : Yes, models under the UDP/MP/SEN/1/M item series include built-in motion sensor functionality for automated lighting control.
Q : What mounting locations are suitable for this LED bulkhead?
A : The light can be mounted on both walls and ceilings in gardens, balconies, building entryways, outdoor walkways, and damp service areas.
Q : What are the benefits of the SKD-friendly design?
A : The SKD (Semi-Knocked Down) structure allows compact packaging and transport, saving storage space and freight costs while enabling straightforward site assembly.
