Description
BSLight Backlit LED Panel Light Eco Series High Brightness Slim Ceiling Casing (600 x 600mm / 1200 x 600mm) – Premium & Efficient
Transform your workspace or commercial property into a brilliantly lit, highly productive environment with the BSLight Backlit LED Panel Light Eco Series.
Specifically engineered to deliver exceptional energy savings without compromising on visual comfort, this premium architectural lighting fixture is the ideal configuration for modern corporate offices, luxury hotels, busy meeting rooms, long hallways, warehouses, and advanced workshops.
Boasting an ultra-thin and environmentally friendly housing design, it serves as a direct, seamless replacement for traditional, energy-draining fluorescent fixtures.
Performance is driven by next-generation, high-brightness LED chips boasting an extended operational life rating of 35,000 hours, ensuring dramatically lowered long-term maintenance costs for facility managers.
Operating smoothly across an input voltage range of AC185-265V at 50/60Hz, these panel fixtures maintain a superb Color Rendering Index (CRI >80), guaranteeing true-to-life color precision across your interior layout.
Designed for visual comfort, the optical array delivers a wide 110° beam angle for expansive light distribution, featuring a low glare rating of UGR <21 and a completely flicker-free power output to eliminate standard eye fatigue.
The series features flexible dimensional variants tailored to standard grid ceilings:
- the 595 x 595 x 35mm and 600 x 600 x 35mm variants draw an efficient 48W to deliver a crisp 5040 lumens,
- while the expansive 1213 x 603 x 35 mm panel draws 60W to unleash a massive 6300 lumens of clean, 6500K daylight.
- With a robust IP20 rating, lightweight build profile (±1.2kg to 3.0kg), and secure surface or recessed integration traits, this series ensures quick installation.
Upgrade to BSLight today to maximize energy efficiency while introducing beautiful, glare-free light to your space
Product Features :
-
Extended Lifespan: Features high-brightness LED chips with a long life rating of 50,000 hours.
-
Visual Comfort: Flicker-free technology and UGR<21 glare control to reduce eye fatigue in professional settings.
-
Slim Design: Ultra-thin and environmentally friendly housing design for a modern aesthetic.
-
High Performance: High Color Rendering Index (CRI >80) and a 110° beam angle for broad, high-quality light distribution.
-
Versatile Power Options: Available in 48W (5040 LM) and 60W (6300 LM) models.
-
Easy Installation: Designed for a simple setup to directly replace original ordinary fluorescent lamps.
-
Universal Compatibility: Supports a wide input voltage range of AC100-240V at 50Hz.
-
Eco-Friendly: Low maintenance costs and an environmentally friendly design contribute to a sustainable lighting solution.
Technical Specification
- Brand & Product Series : BSLight Backlit LED Panel Light <<ECO SERIES>>
- Main Application Use : Office, Hotel, Meeting Room, Hallways, Warehouse, Workshop, Commercial & Residential
- Operational Lifespan : 35,000 Hours (High Brightness LED Chips)
- Input Voltage Range : AC 185 – 265V, 50/60Hz
- Color Rendering Index : CRI > 80
- Beam Angle Profile : 110° Wide Angle
- Visual Comfort Factors : Flickering Free Technology / Low Glare Index (UGR < 21)
- Ingress Protection Level : IP20
- Housing Profile : Ultra-Thin and Environmentally Friendly Design
- Correlated Color Temp : 6500K (Daylight / Cool Variant)
- Model: BSBL2248BLMM/ECO : 48W | 5040 LM | 595 x 595 x 35m | Net Weight: 1.2kg
- Model: BSBL2248BL/ECO : 48W | 5040 LM | 600 x 600 x 35m | Net Weight: 1.2kg
- Model: BSBL2480BL/ECO : 60W | 6300 LM | 1213 x 603 x 35m | Net Weight: 3.0kg

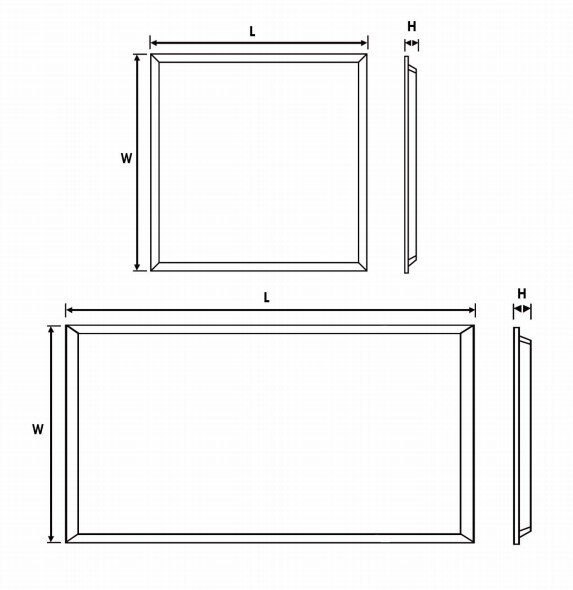

Dimension :

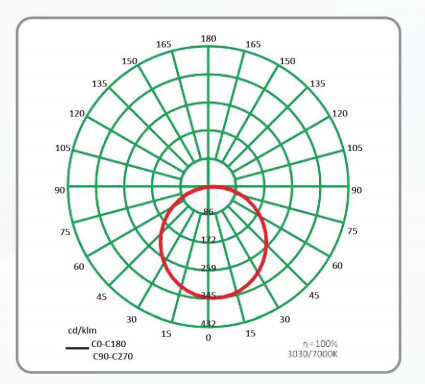

Luminous Intensity Distribution Diagram:
