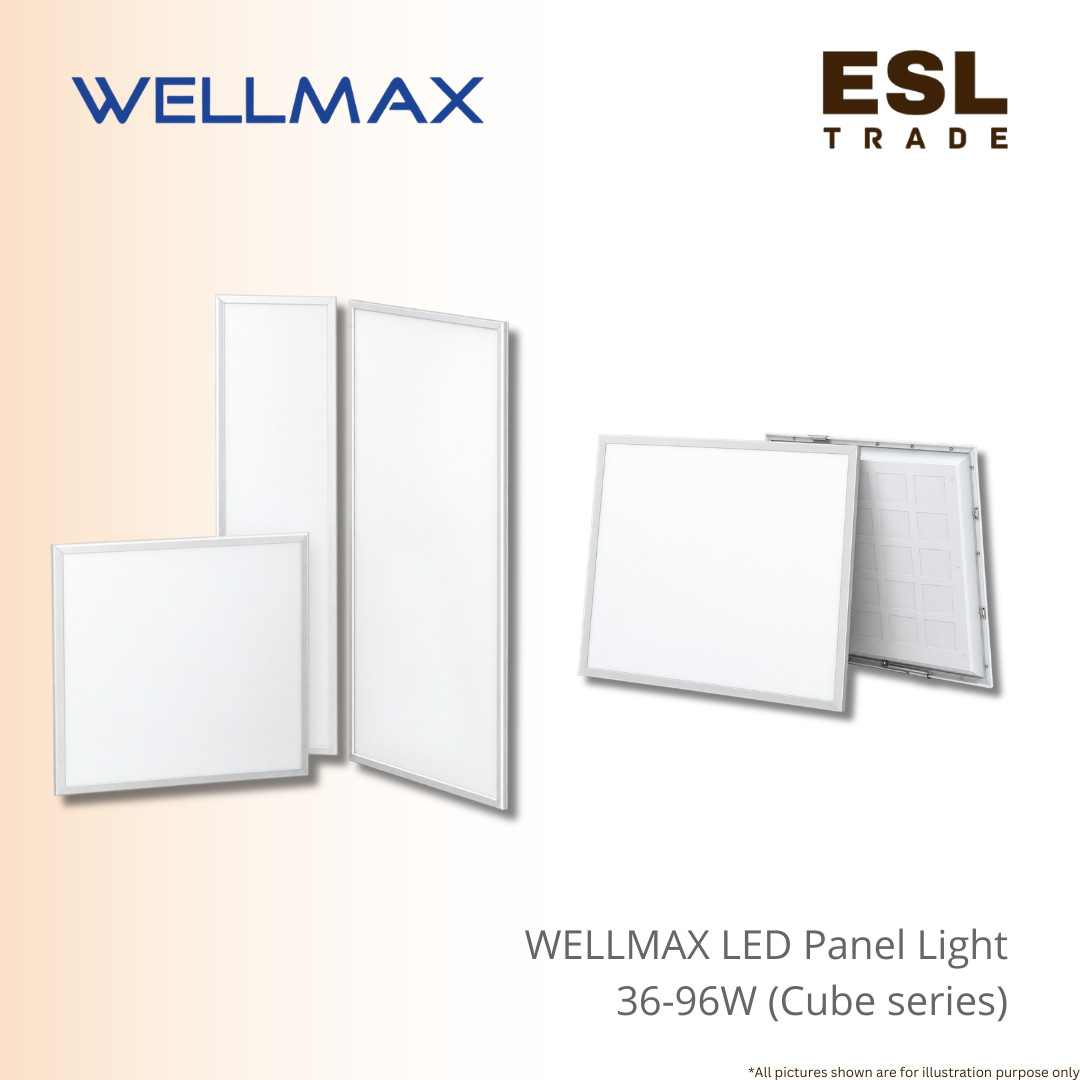

WELLMAX Cube Series Ultra-Slim Modular LED Panel Light 100lm/W Non-Flicker Excellent Commercial Overhead Lighting Fixture
The WELLMAX Cube Series LED Panel Light delivers an efficient, highly adaptable ceiling illumination solution engineered specifically for modern commercial spaces, including offices, educational institutions, healthcare centers, and retail stores.
The WELLMAX Cube Series LED Panel Light is Constructed with a durable white aluminum frame, the fixture effectively resists corrosion, rust, and surface yellowing over extended use, maintaining a clean visual appearance across architectural ceiling grids.
A distinguishing feature of the Cube Series is its innovative modular frame design.
The WELLMAX Cube Series LED Panel Light is Engineered to support SKD (Semi-Knocked Down) logistics, the structure significantly reduces spatial storage demands and minimizes shipping volumes while enabling efficient on-site assembly.
The optical diffuser delivers uniform, glare-free light distribution across a wide 120° beam angle.
The WELLMAX Cube Series LED Panel Light is Equipped with non-flicker driver technology, the Cube panel helps safeguard visual comfort and reduce eye fatigue during long working hours.
The product line offers light outputs ranging from 3600 lm up to 6000 lm across multiple wattage configurations (36W, 40W, 48W, and 60W), operating at a high luminous efficacy of 100 lm/W.
It supports three color temperature selections: Warm White (3000K), Neutral White (4000K), and Cool White (6500K) with color rendering fidelity (CRI ≥ 80).
The WELLMAX Cube Series LED Panel Light is designed for comprehensive installation flexibility, the series accommodates four distinct mounting styles: Recessed, Spring-mounted, Suspended, and Surface installation.
Available in standard 60 x 60 cm (595 x 595 mm), 30 x 120cm (295 x 1195mm), and 60 x 120 cm (595 x 1195mm) formats, it operates across 100–240V and 220–240V mains supplies with surge protection up to 1000V and an operational lifespan of up to 25,000 hours.
The series complies fully with CE, LVD, RoHS, ErP, and EMC international quality standards.
Product Details
| Item / Model Series | Panel Dimension Format | Wattage (W) | Input Voltage (V) | Luminous Flux (lm) | Luminous Efficacy | Power Factor (PF) | Dimensions (W×L×H) | Color Temp (CCT) | Beam Angle | CRI | IP Rating | Lifetime (Hrs) | Compliance |
| UPR/ECO/0/1/0/6060 | 60×60 cm | 36W | 100–240V / 220–240V | 3600 lm | 100 lm/W | 0.5 / 0.9 | 595mm x 595mm x 34 mm | 3000K / 4000K / 6500K | 120° | ≥80 | IP20 | Up to 25,000h | CE, LVD, RoHS, ErP, EMC |
| UPR/ECO/0/1/0/6060 | 60×60 cm | 40W | 100–240V / 220–240V | 4000 lm | 100 lm/W | 0.5 / 0.9 | 595mm x 595mm x 34mm | 3000K / 4000K / 6500K | 120° | ≥80 | IP20 | Up to 25,000h | CE, LVD, RoHS, ErP, EMC |
| UPR/ECO/0/1/0/6060 | 60×60 cm | 48W | 100–240V / 220–240V | 4800 lm | 100 lm/W | 0.5 / 0.9 | 595mm x 595mm x 34mm | 3000K / 4000K / 6500K | 120° | ≥80 | IP20 | Up to 25,000h | CE, LVD, RoHS, ErP, EMC |
| UPR/ECO/0/1/0/6060 | 60×60 cm | 60W | 100–240V / 220–240V | 6000 lm | 100 lm/W | 0.5 / 0.9 | 595mm x 595mm x 34mm | 3000K / 4000K / 6500K | 120° | ≥80 | IP20 | Up to 25,000h | CE, LVD, RoHS, ErP, EMC |
| UPR/ECO/0/1/0/1203 | 30×120 cm | 36W / 40W | 100–240V / 220–240V | 3600 lm / 4000 lm | 100 lm/W | 0.5 / 0.9 | 295mm x 1195mm x 34mm | 3000K / 4000K / 6500K | 120° | ≥80 | IP20 | Up to 25,000h | CE, LVD, RoHS, ErP, EMC |
| UPR/ECO/0/1/0/1206 | 60×120 cm | 40W / 60W | 100–240V / 220–240V | 4000 lm / 6000 lm | 100 lm/W | 0.5 / 0.9 | 595mm x 1195mm x 34mm | 3000K / 4000K / 6500K | 120° | ≥80 | IP20 | Up to 25,000h | CE, LVD, RoHS, ErP, EMC |
Frequently Asked Questions (FAQ)
Q : What are the advantages of the modular frame (SKD) design in the Cube Series?
A : The modular frame design saves up to 80% in storage space during transport, lowering freight costs and allowing easy, efficient assembly on-site.
Q : What installation methods are supported by the Cube LED Panel?
A : The Cube Series supports four versatile installation methods: Recessed (in standard grid ceilings), Spring-mounted, Suspended (cable hanging), and Surface mounting.
Q : Does the light fixture flicker during operation?
A : No, the Cube Series incorporates non-flicker driver technology designed to provide steady illumination and prevent eye strain.
Q : What options exist for panel sizes and wattages?
A : The series offers three dimension formats: 60 x 60cm (36W, 40W, 48W, 60W), 30 x 120cm (36W, 40W), and 60 x 120 cm (40W, 60W).
Q : Does the aluminum frame yellow or rust over time?
A : The panel features a durable aluminum frame specially finished to resist corrosion, rust, and color yellowing.
