Aurore Hazzle Slim LED Power Supply 12V 24V 60W-500W High Efficiency for Residential and Commercial Used

Description

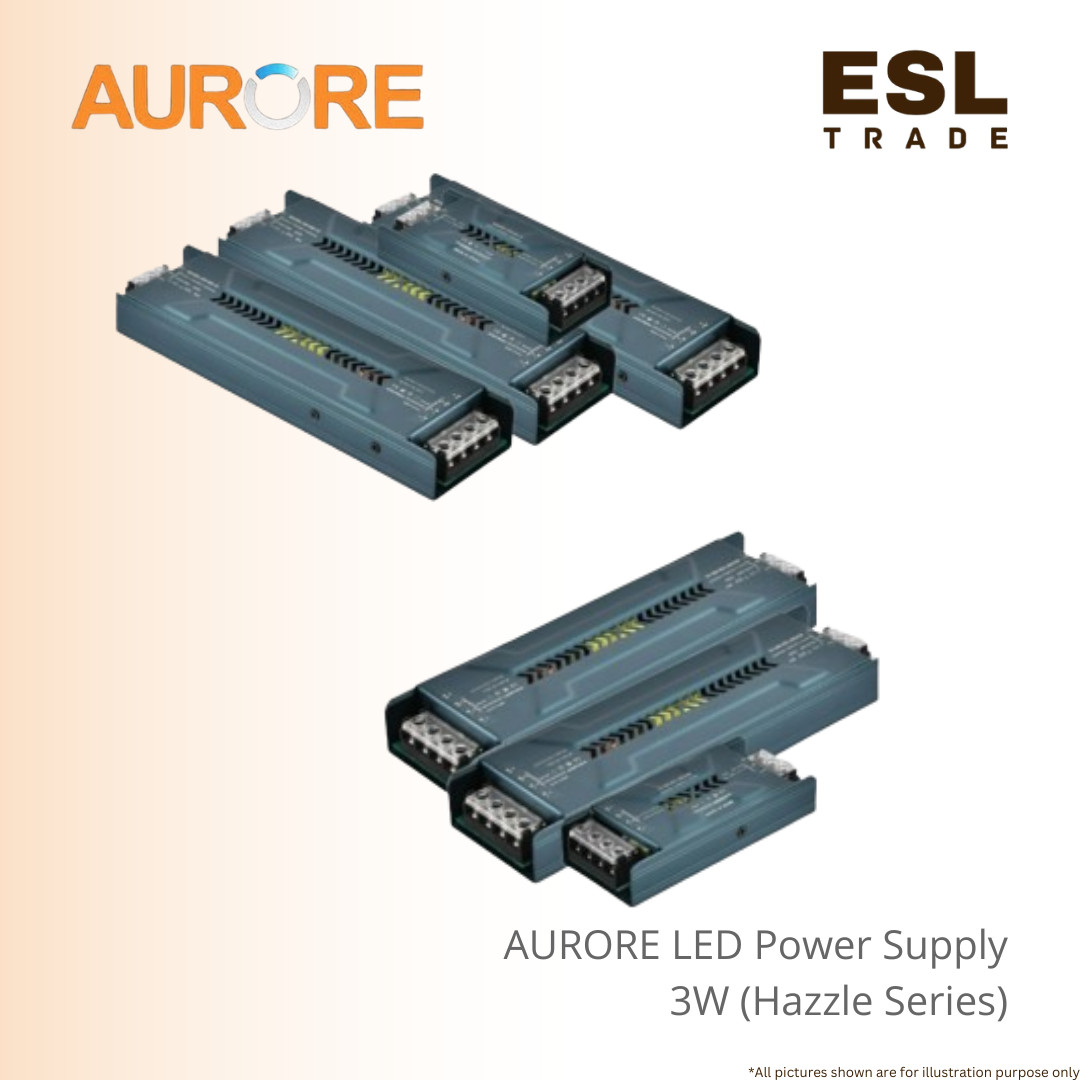

Aurore Hazzle Slim LED Power Supply 12V 24V 60W-500W High Efficiency for Residential and Commercial Used

Power low-voltage LED strip lights, architectural cove fixtures, cabinet lighting, and display modules with the Aurore Hazzle LED Power Supply Series.

Engineered with a low-profile, ultra-slim metallic enclosure, this series provides stable constant voltage conversion across standard 12V DC and 24V DC low-voltage systems.

The Hazzle Power Supply Series operates within an input voltage range of AC 176–264V (50/60Hz), protecting downstream LED diodes against voltage fluctuations and power sags.

Built with an aluminum heat-dissipating chassis, these drivers promote continuous passive cooling without loud external cooling fans, maintaining consistent power output during long operating hours.

The series offers complete current and power options across both 12V and 24V output channels to support various light run lengths:

• 12V DC Range: Available in 60W (5A), 100W (8.3A), 200W (16.5A), 300W (25A), 400W (33A), and 500W (41.6A) configurations.

• 24V DC Range: Available in 60W (2.5A), 100W (4.1A), 200W (8.3A), 300W (12.5A), 400W (16.6A), and 500W (20.8A) configurations.

Designed specifically for tight architectural spaces, the slim body profiles (ranging from 26mm to 29mm in height) slip easily into plasterboard ceiling pelmets, narrow aluminum profile channels, kitchen joinery slots, and slim signage light boxes.

Featuring heavy-duty screw terminal blocks for secure wiring connections, the Aurore Hazzle power supply series provides a reliable foundation for residential, retail, and commercial interior lighting projects.

Product Details

Aurore Hazzle 12V DC LED Power Supply

Aurore Hazzle 24V DC LED Power Supply

Common Product FAQs

Q: What is the main input voltage range supported by the Aurore Hazzle power supply series?

A: The entire Aurore Hazzle LED Power Supply range operates within an input AC voltage range of 176V to 264V AC (50/60Hz).

Q: Should I select a 12V or 24V power supply for my LED installation?

A: Match the power supply output voltage to the voltage specification of your LED lights:

• Use 12V DC drivers for 12V rated LED strips, modules, and cabinet lights.

• Use 24V DC drivers for 24V LED strip lights. 24V systems draw half the current of 12V systems for the same wattage, helping reduce voltage drop over longer LED strip runs.

Q: What are the physical size dimensions of these power supplies?

A: The dimensions vary by wattage tier:

• 60W: 117 mm x 53 mm x 26 mm

• 100W: 138 mm x 53 mm x 26 mm

• 200W & 300W: 193 mm x 53 mm x 26 mm

• 400W: 209 mm x 63 mm x 29 mm

• 500W: 227 mm x 63 mm x 29 mm

Q: How do I calculate the correct wattage size power supply for my LED strip setup?

A: Multiply the total meter length of your LED strip by its wattage rating per meter. It is best practice to select a power supply wattage capacity that exceeds your total load by 15% to 20% to ensure reliable long-term performance without overloading the driver.

Q: What are the carton packaging quantities for bulk orders?

A: Bulk packaging quantities vary by driver size:

• 60W & 100W: 100 pieces per carton

• 200W & 300W: 60 pieces per carton

• 400W: 40 pieces per carton

• 500W: 30 pieces per carton
