Description

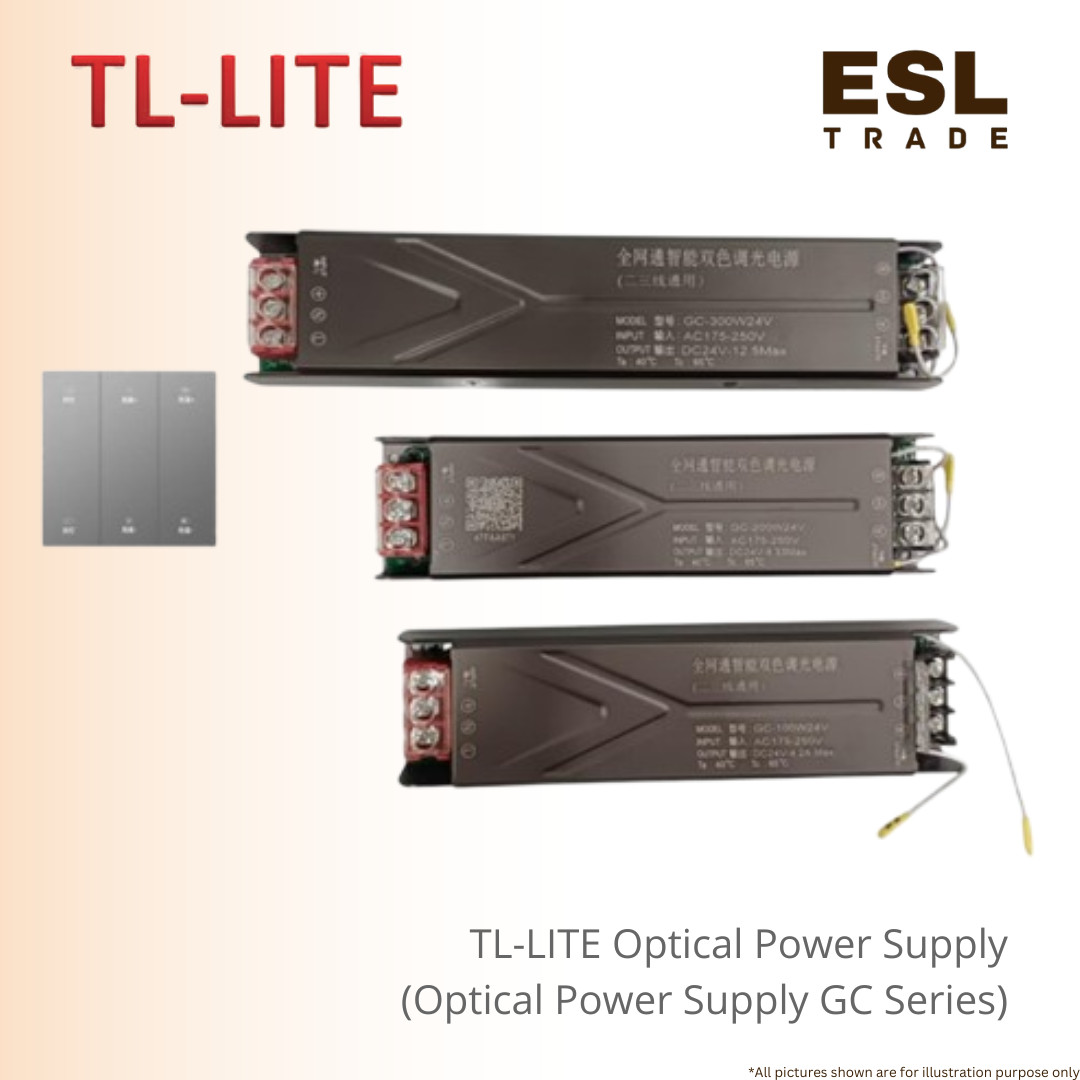

TL-LITE Full Network Intelligent Dual-Tone Optical Power Supply DC24V Smart LED Dimming Driver (100W / 200W / 300W) Aluminum Smart Life Voice Control Transformer
Take complete control of your architectural ambiance with the premier TL-LITE Full Network Intelligent Dual-Tone Optical Power Supply.
Specifically engineered to manage premium dual-tone (CCT changeable) linear fixtures, this professional constant-voltage driver serves as the brain for sophisticated residential and commercial lighting systems.
Crafted from a robust, high-grade aluminum housing, it combines maximum heat dissipation with advanced smart home integration.
It allows you to effortlessly turn lights on or off, adjust brightness levels from 10% to 100%, switch custom operating scenes, and fine-tune color temperatures to match any mood.
Designed for effortless network pairing, the unit features built-in Bluetooth and wireless syncing protocols.
By holding down the dedicated onboard pairing button for five seconds while powered on, users can instantly connect the device to their network.
Once configured, it offers full smart system capabilities, including convenient voice control through mainstream platforms like Tmall Genie.
Available in three distinct capacities GC-100W24V (4.2A), GC-200W24V (8.33A), and GC-300W24V (12.5A) this versatile series runs on a reliable AC175-250V input frequency.
Maintenance and reconfiguration are exceptionally straightforward. Installers can wipe existing network settings via a simple mobile application reset button or through an automated physical hardware sequence.
The supply visually flashes its attached arrays to verify successful operations. Combining reliable safety features with elegant dimming curves, it is the ideal option for luxury residential coves, hotel bedroom lighting layouts, and automated office spaces.
Product Details
| Product Feature / Parameter | Technical Specifications & Details |
| Brand | TL-LITE (TL Electric & Lighting) |
| Product Core Series | SMART POWER SUPPLY DIMMING |
| System Category Variant | Full Network Intelligent Dual-Tone Optical Power Supply |
| Chassis Material Composition | High-Grade Rigid Aluminum Housing (Optimized for Cool Thermal Tracking) |
| Input AC Current Requirements | Wide-Range Voltage AC175 – 250V ~ 50/60Hz |
| Selectable Models Available | GC-100W24V | GC-200W24V | GC-300W24V |
| Output Voltage Profile | Constant Voltage DC24V Low Voltage Drive |
| Model Current Capacity Amp Ratings |
GC-100W24V: Output DC24V – 4.2A Max
GC-200W24V: Output DC24V – 8.33A Max
GC-300W24V: Output DC24V – 12.5A Max |
| Dimming Scale Range Capacity | 10% to 100% Continuous Fluid Control (No flicker or stepping) |
| Integrated Voice Automation | Tmall Genie System Voice & App Control Protocol Ecosystem |
| Hardware Sync Instructions | Quick Pairing via Power-On + 5 Second Onboard Button Hold |
| Reset Network Mechanism |
1. App “Clear Code” button (Light flashes to confirm)
2. Physical hardware toggle: Switch mains on/off continuously more than 11 times |
| Primary Functional Capabilities | Power Toggle, Dimming, Scene Modes, Dynamic Color Temperature Adjustments |
| Primary Project Deployments | Multi-Tone Linear Strip Automation, High-End CCT Cove Lighting, Residential Smart Living Rooms, Luxury Hospitality Hotel Coves |
