Description

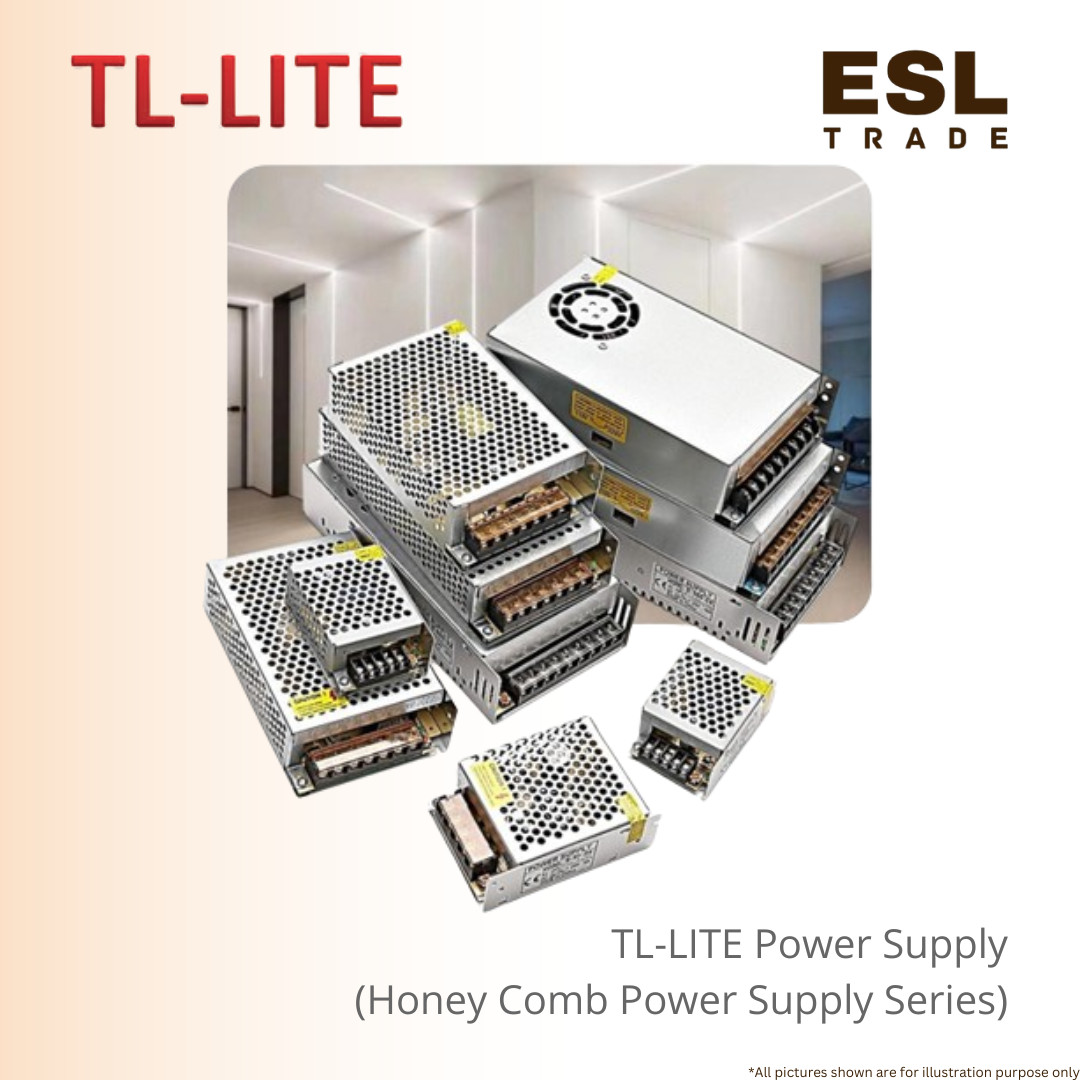

TL-LITE Honeycomb LED Power Supply 90% High Efficiency 12V & 24V Enclosed Switching Transformer
Engineered for heavy-duty commercial applications and premium residential lighting, the TL-LITE Honeycomb LED Power Supply sets a new standard in power conversion performance.
This industrial-grade switching transformer boasts an exceptional 90% efficiency rating, significantly reducing energy waste and minimizing heat generation compared to standard drivers.
It is the ultimate choice for powering extensive linear accent lighting, signage, and demanding custom LED strip setups.
Constructed with a rugged, fully enclosed metallic chassis, this power supply features an optimized honeycomb ventilation mesh that facilitates maximum ambient airflow.
For higher-wattage models, an integrated cooling fan provides targeted thermal regulation, ensuring the unit remains well within safe operating limits under continuous load.
With an IP20 indoor rating, the series is designed to handle high-capacity demands safely, featuring robust internal protections against voltage surges, overloading, and electrical short circuits.
Available in both 12V and 24V configurations, the TL-LITE Honeycomb series scales effortlessly from compact 36W units up to massive 500W powerhouses.
Whether you need a small, low-profile transformer to hide inside joinery or a high-amperage industrial unit to drive a complex matrix of architectural LED fixtures, this series offers exactly what you need.
Precise physical dimensions are provided for every wattage tier, making it simple for electrical contractors, engineers, and lighting installers to pre-plan cabinet layouts and enclosure spaces accurately before arriving at the project site.
Technical Specification
| Output Voltage | Output Current (Amps) | Rated Power (Watts) | Physical Dimensions (W x L x H) |
| DC 12V Series | 3A | 36W | 59mm × 85mm × 34mm |
| 5A | 60W | 80mm × 110mm × 38mm | |
| 10A | 120W | 98mm × 160mm × 45mm | |
| 15A | 180W | 100mm × 200mm × 45mm | |
| 20A | 250W | 110mm × 200mm × 50mm | |
| 30A | 360W | 115mm × 215mm × 50mm | |
| 40A | 500W | 115mm × 215mm × 50mm | |
| DC 24V Series | 5A | 120W | 99mm × 160mm × 43mm |
| 10A | 240W | 110mm × 200mm × 50mm |
Key Features
-
Brand: TL-LITE (TL Electric & Lighting)
-
Series: Honeycomb LED Power Supply (Enclosed Type)
-
Ingress Protection: IP20 (Indoor Use Only)
-
Efficiency: High Efficiency 90%
-
Cooling Design: Honeycomb mesh ventilation (with active fan cooling on larger models)
-
Safety Features: Built-in overcurrent, overvoltage, and short-circuit protection
