Description

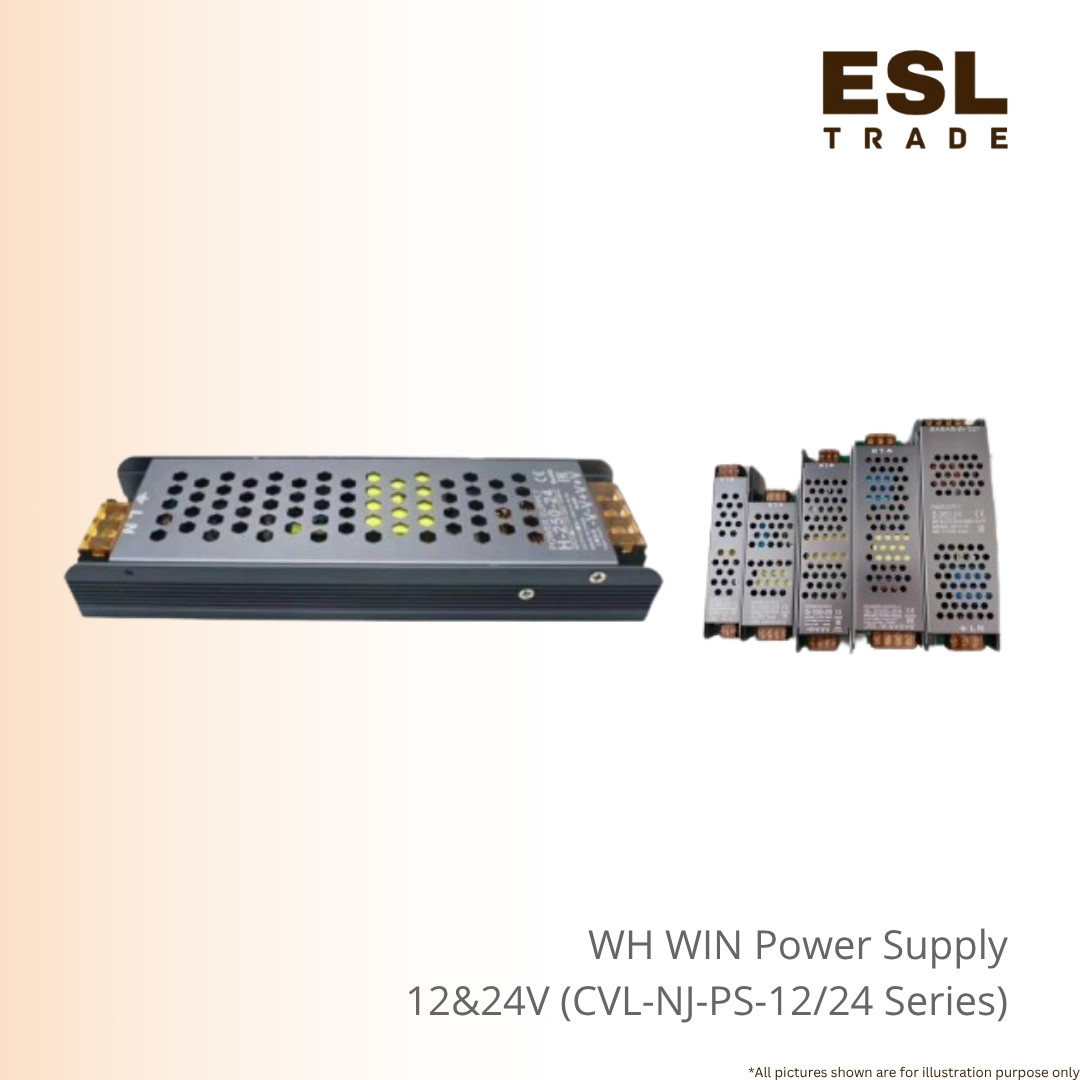

WIN LED Power Supply Slim Driver (12V & 24V DC / 45W to 400W) Switching Transformer Excellent for High Efficiency Voltage Converter
The WIN LED Power Supply (CVL-NJ-PS Series) is a high-performance, switching-mode AC-to-DC power converter designed to power low-voltage LED strip lighting, linear profile modules, cabinet lights, and architectural light fixtures.
Engineered with a perforated aluminum enclosure for effective heat dissipation, this power supply unit guarantees stable constant-voltage output from standard 175–250V AC inputs.
Its compact, slim profile allows easy placement inside narrow ceiling pelmets, furniture light troughs, display cabinets, and electrical enclosure boxes.
Available in both 12V DC and 24V DC constant output versions, the WIN Power Supply line covers a broad wattage spectrum from 45W up to 400W to accommodate light residential installations up to demanding commercial project loads:
-
Compact Capacity (45W – 60W): Delivers current outputs from 1.87A to 5A. Featuring minimal 120–170mm lengths, these models are ideal for short LED tape runs, showcase displays, and under-cabinet illumination.
-
Medium Capacity (100W – 150W): Delivers current outputs from 4.16A to 12.5A. Excellent for residential plaster cove lighting, bedroom headboard backlighting, and medium-length linear profile setups.
-
High Capacity (200W – 250W): Delivers current outputs from 8.3A to 20.8A. Designed for large living room cove lighting circuits and retail display shelves.
-
Heavy-Duty Capacity (360W – 400W): Delivers current outputs up to 33.3A (12V) and 16.6A (24V). Built to drive long multi-meter continuous LED strip installations and commercial signage displays.
Product Detail
12V DC Output Series
| Model Code | Power Rating | Dimensions (L×W×H) | Input Voltage | Output Voltage | Output Ampere |
| CVL-NJ-PS-12-45 | 45 Watt | 120 x 35 x 23mm | 175–250V AC | 12V DC |
3.75A |
| CVL-NJ-PS-12-60 | 60 Watt | 170 x 35 x 23mm | 175–250V AC | 12V DC |
5.0A |
| CVL-NJ-PS-12-100 | 100 Watt | 145 x 48 x 29mm | 175–250V AC | 12V DC |
8.3A |
| CVL-NJ-PS-12-150 | 150 Watt | 195 x 48 x 29mm | 175–250V AC | 12V DC |
12.5A |
| CVL-NJ-PS-12-200 | 200 Watt | 208 x 64 x 29mm | 175–250V AC | 12V DC |
16.6A |
| CVL-NJ-PS-12-250 | 250 Watt | 208 x 64 x 29mm | 175–250V AC | 12V DC |
20.8A |
| CVL-NJ-PS-12-360 | 360 Watt | 245 x 64 x 29mm | 175–250V AC | 12V DC |
30.0A |
| CVL-NJ-PS-12-400 | 400 Watt | 245 x 64 x 29mm | 175–250V AC | 12V DC |
33.3A |
24V DC Output Series
| Model Code | Power Rating | Dimensions (L×W×H) | Input Voltage | Output Voltage | Output Ampere |
| CVL-NJ-PS-24-45 | 45 Watt | 120 x 35 x 23mm | 175–250V AC | 24V DC |
1.87A |
| CVL-NJ-PS-24-60 | 60 Watt | 170 x 35 x 23mm | 175–250V AC | 24V DC |
2.5A |
| CVL-NJ-PS-24-100 | 100 Watt | 145 x 48 x 29mm | 175–250V AC | 24V DC |
4.16A |
| CVL-NJ-PS-24-150 | 150 Watt | 195 x 48 x 29mm | 175–250V AC | 24V DC |
6.25A |
| CVL-NJ-PS-24-200 | 200 Watt | 208 x 64 x 29mm | 175–250V AC | 24V DC |
8.3A |
| CVL-NJ-PS-24-250 | 250 Watt | 208 x 64 x 29mm | 175–250V AC | 24V DC |
10.4A |
| CVL-NJ-PS-24-360 | 360 Watt | 245 x 64 x 29mm | 175–250V AC | 24V DC |
15.0A |
| CVL-NJ-PS-24-400 | 400 Watt | 245 x 64 x 29mm | 175–250V AC | 24V DC |
16.6A |
Frequently Asked Questions (FAQ)
Q1: How do I calculate which wattage power supply I need for my LED strip lights?
A : Multiply the total wattage rating per meter of your LED strip by the total length (in meters) being connected. It is recommended to add a 15–20% safety margin so the power supply operates smoothly without running at maximum output constantly.
Q2: Can I use a 12V power supply with a 24V LED strip light?
A : No. Always match the output voltage of the power supply to the rated voltage of your LED strip. A 12V strip requires a 12V DC power supply, while a 24V strip requires a 24V DC power supply.
Q3: What input voltage does the WIN LED Power Supply support?
A : This series operates on standard 175–250V AC input voltage.
Q4: Is this power supply suitable for outdoor installation?
A : The perforated casing is designed for indoor heat convection. For outdoor applications, ensure the unit is installed inside an IP-rated weatherproof junction box.
Q5: What is the advantage of the slim form factor?
A : The narrow width (35 mm to 64 mm) and low height (23 mm to 29 mm) make these power supplies easy to conceal in slim plaster ceiling coves, cabinet pelmets, and tight architectural light slots.
