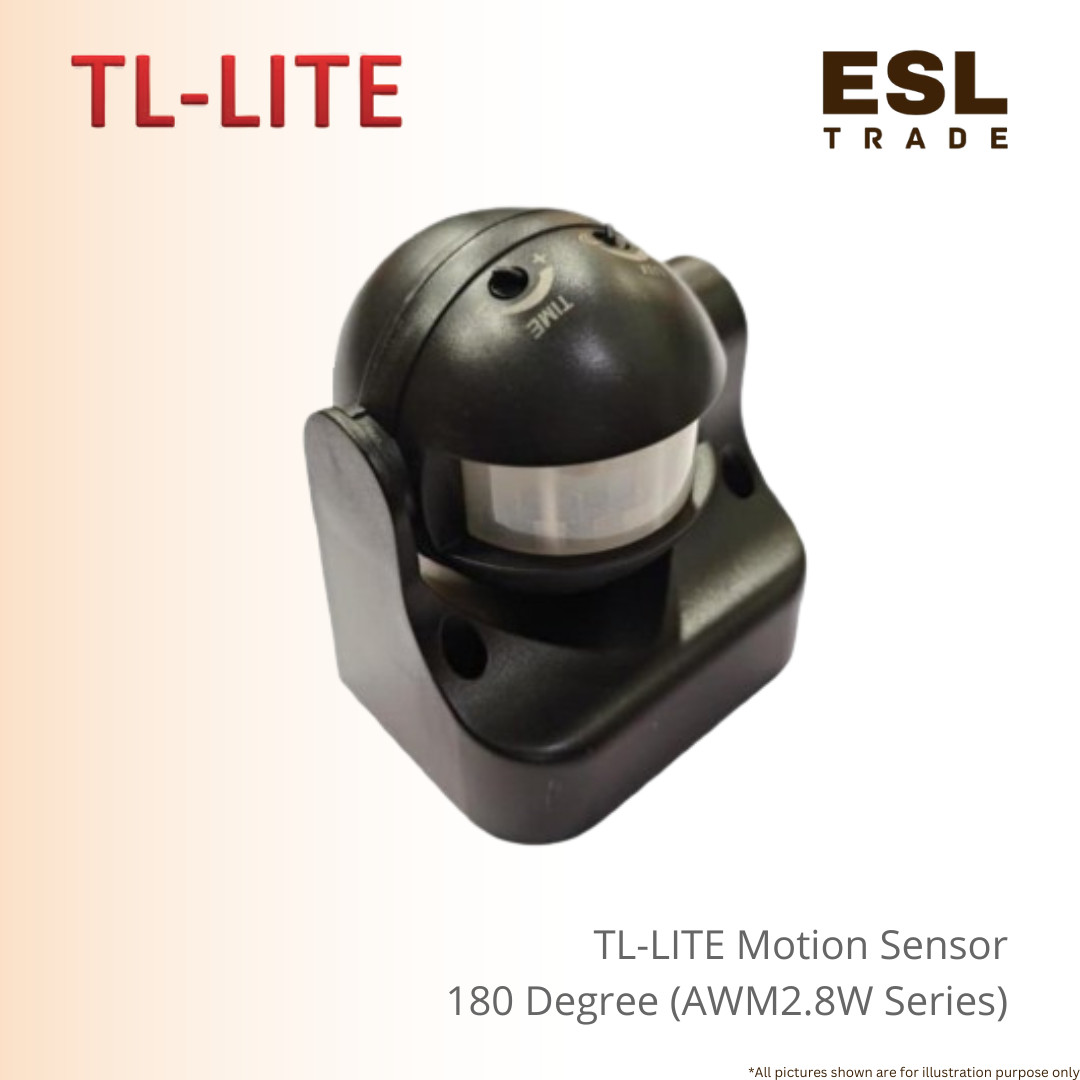

TL-LITE AWM 180° Outdoor PIR Motion Sensor Wall Mounted Infrared Excellent for Occupancy Detector for Floodlights & Security Lighting

The TL-LITE AWM2.8W/3C is a powerful 180° Wall-Mounted PIR Motion Sensor designed for superior security and automation. Featuring a massive 12-meter detection range and a swivel-head design for precise targeting, it supports up to 1200W loads. With adjustable LUX sensitivity and time-delay settings, this infrared detector is the perfect solution for automating outdoor floodlights, entryways, and warehouses while maximizing energy savings.

Share:

Description

TL-LITE AWM 180° Outdoor PIR Motion Sensor Wall Mounted Infrared Excellent for Occupancy Detector for Floodlights & Security Lighting

Enhance Your Property Security with the TL-LITE AWM 180° Infrared Motion Sensor
Take full control of your outdoor and security lighting with the TL-LITE AWM2.8W/3C Infrared Motion Sensor.

This high-performance PIR (Passive Infrared) detector is specifically designed to provide an expansive 180-degree detection angle, ensuring that any movement on your property is instantly met with light.

Whether you are looking to automate your driveway floodlights or secure a commercial loading bay, this sensor offers the reliability and precision modern security demands.

Customizable Sensitivity and Energy Efficiency
The AWM series is built for versatility. It features an adjustable ambient light sensor (from <10 to 2000 LUX), allowing you to decide exactly when the sensor becomes active.

Set it to work only during the pitch black of night or throughout the day for high-traffic areas.

Additionally, the time-delay function is fully adjustable from a quick 10-second burst to a full 5-minute illumination period.

By ensuring lights are only active when needed, you significantly reduce energy consumption and extend the lifespan of your bulbs.

Built for the Elements
Designed for wall-mount installation at a height of 1.8m to 2.5m, this sensor boasts a massive 12-meter detection range.

It is compatible with both high-power incandescent lamps (up to 1200W) and modern energy-saving/LED lamps (up to 300W).

With its adjustable swivel head, you can tilt and turn the sensor to target specific zones, making it an essential component for any comprehensive security lighting strategy.

Product Details

Feature Specification
Product Code AWM2.8W/3C
Input Voltage 110V/AC – 240V/AC
Power Frequency 50/60Hz
Detection Angle 180° Wide Angle
Detection Distance 12m Max (<24°C)
Ambient Light <10 – 2000 LUX (Adjustable)
Time-Delay Min: 10sec ±3sec / Max: 5min ±1min
Rated Load (Incandescent) 1200W Max
Rated Load (Energy Saving) 300W Max
Working Humidity <93% RH
Installation Height 1.8m ~ 2.5m
Power Consumption <0.9W (Work) / <0.9W (Static)
Detection Motion Speed 0.6 – 1.5m/s
Packaging Quantity 50 PCS
