Description

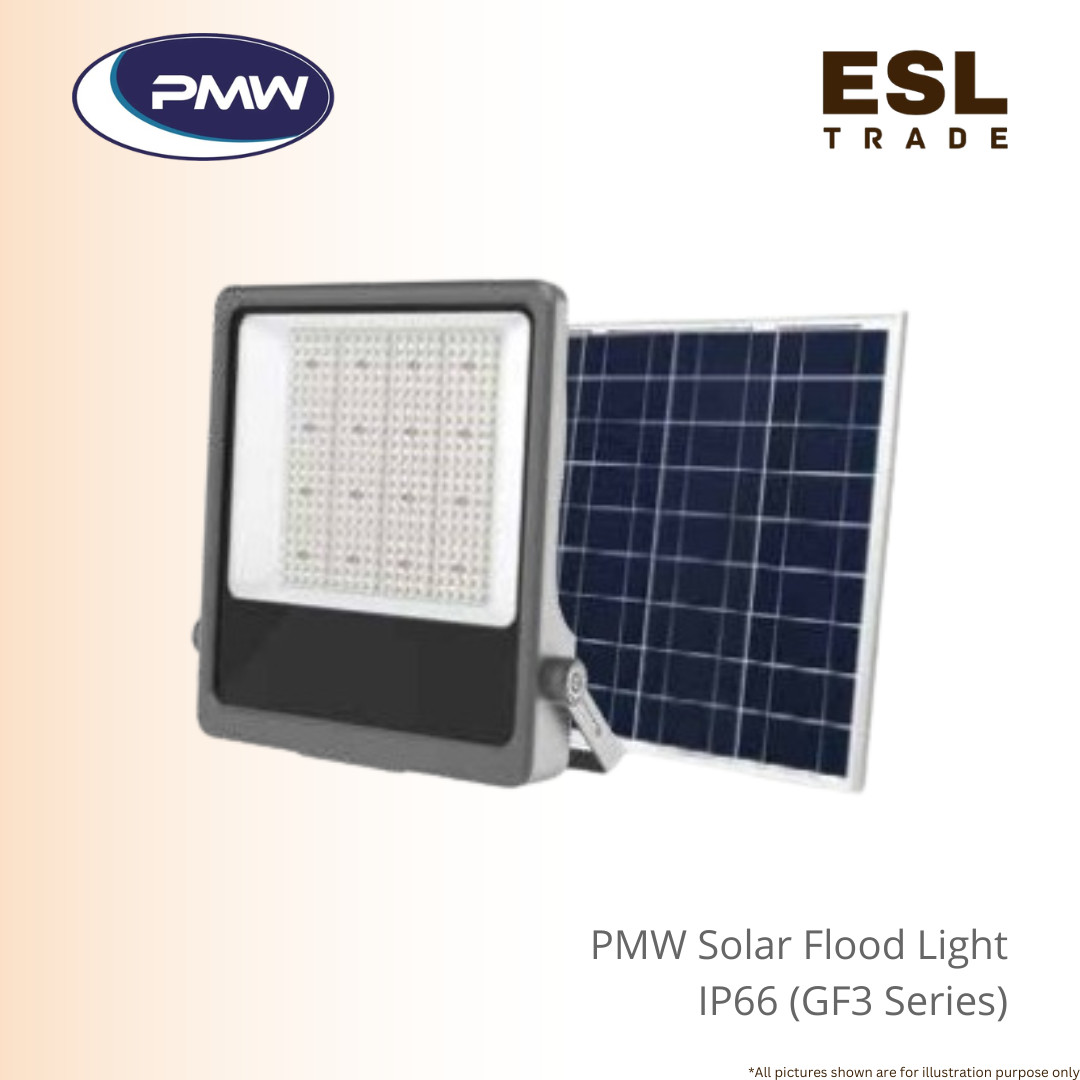

PMW GF3 Series Commercial Solar Flood Light 3030-2D LED & Grey Aluminum Housing 60W-150W Outdoor Security Lighting Reliable
The PMW GF3 Series Commercial Solar Flood Light provides dependable, off-grid illumination for demanding architectural and perimeter installations, including building facades, gardens, garages, and entrance ways.
Built with a heavy-duty grey aluminum alloy housing, the PMW GF3 Series Commercial Solar Flood Light series combines a sleek exterior with reliable protection against harsh environmental elements.
PMW GF3 Series Commercial Solar Flood Light is designed for extreme outdoor durability, the fixture features an IP66 weatherproofing rating and an IK08 impact resistance rating, operating across ambient temperatures from -30°C to +60°C with an LED service life of up to 50,000 hours and Ra70 Color Rendering Index (CRI).
The PMW GF3 Series Commercial Solar Flood Light luminaire utilizes high-efficiency 3030-2D LED chips paired with high-capacity monocrystalline solar panels and heavy-duty 25.6V lithium battery packs.
Ranging in power configurations from 60W up to 150W, the series delivers high-lumen output spanning 10,200 lumens to 25,500 lumens.
Users can select from three standard color temperature options to suit specific application requirements: warm white 3000K, neutral white 4000K, and cool white 6000K.
To optimize overall battery management during multi-day cloud cover, the GF3 series runs an integrated automated dimming cycle:
- 4 hours at 100% maximum brightness,
- 2 hours at 60%,
- followed by 6 hours at 40% output.
This scheduled power management strategy guarantees up to 2 days of continuous operational autonomy.
Featuring monocrystalline panels up to 270W-36V and lithium battery reserves up to 120AH, the PMW GF3 Series offers a low-maintenance, cost-effective solution for zero-grid commercial floodlighting.
Product Detail
PMW GF3 Series Technical
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Mono Solar Panel | Lithium Battery | CCT Options (K) | Lamp Size LxWxH (mm) | Weight (kg) |
| 01.GF3060.00 | GF3-060 | 60W | 10,200 lm | 175W – 36V | 25.6V 45AH | 3000K, 4000K, 6000K | 232 x 288 x 50 | 32.2 kg |
| 01.GF3080.00 | GF3-080 | 80W | 13,600 lm | 200W – 36V | 25.6V 60AH | 3000K, 4000K, 6000K | 257 x 317 x 56 | 34.6 kg |
| 01.GF3100.00 | GF3-100 | 100W | 17,000 lm | 250W – 36V | 25.6V 75AH | 3000K, 4000K, 6000K | 326 x 363 x 56 | 36.5 kg |
| 01.GF3120.00 | GF3-120 | 120W | 20,400 lm | 250W – 36V | 25.6V 90AH | 3000K, 4000K, 6000K | 365 x 427 x 62 | 43.3 kg |
| 01.GF3150.00 | GF3-150 | 150W | 25,500 lm | 270W – 36V | 25.6V 120AH | 3000K, 4000K, 6000K | 435x 473 x 62 | 45.0 kg |
(Note: Operating profile: 4 hrs at 100%, 2 hrs at 60%, 6 hrs at 40% with 2 days autonomy backup. Structural ratings: IP66 weather protection, IK08 impact resistance, Ra70 CRI, -30°C to +60°C working range, 50,000-hour LED lifespan. Housing material: Grey aluminum alloy housing with 3030-2D LED source.)- Refer Catalogue
Frequently Asked Questions (FAQ)
Q: What type of LED light source is utilized in the GF3 series?
A: The GF3 series features high-efficiency 3030-2D LED chips housed inside a grey aluminum alloy fixture body.
Q: What color temperature (CCT) options are available for the GF3 series?
A: The luminaire offers three selectable CCT options: warm white (3000K), neutral white (4000K), and cool white (6000K).
Q: How does the dimming control profile ensure 2 days of autonomy?
A: The GF3 series operates on a preset 12-hour progressive dimming sequence (4 hours at 100%, 2 hours at 60%, and 6 hours at 40%), preserving battery charge to ensure up to 2 days of operational autonomy during bad weather.
Q: What are the durability and protection ratings of the GF3 flood light?
A: The luminaire is rated IP66 for ingress protection, IK08 for impact resistance, and is built to operate reliably in ambient temperatures from -30°C to +60°C
