Description

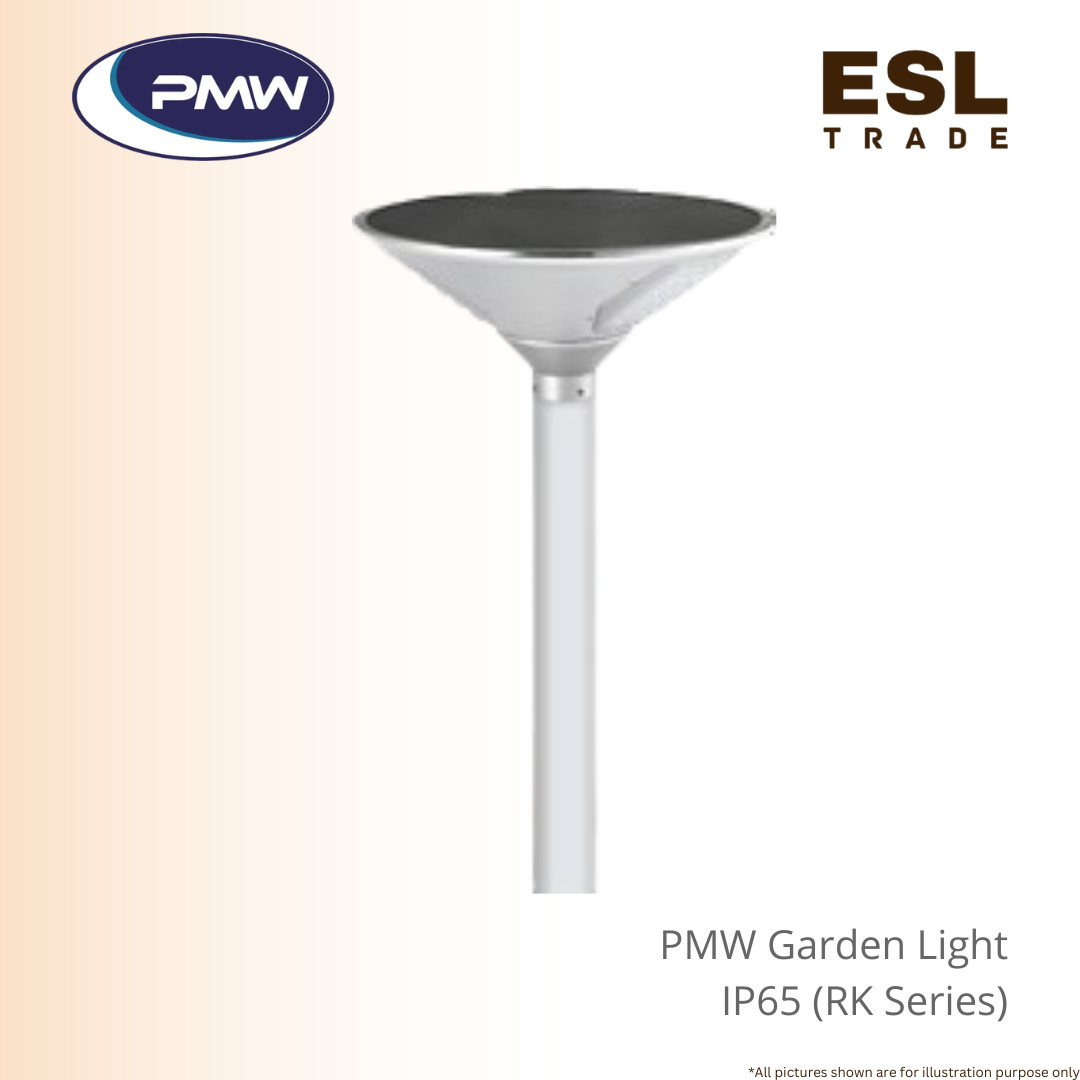

PMW RK Series Solar Light Post Top Aluminum Alloy & Multi-CCT 15W-30W Outdoor Excellent Area Lighting Robust design
The PMW RK Series Post Top Solar Light offers a durable, zero-grid illumination solution designed for residential compounds, public parks, outdoor gardens, living area pathways, and commercial parking lots.
PMW RK Series Post Top Solar Light is constructed with an aluminum alloy case and a thick installation base, the fixture provides exceptional structural stability and long-term weather resistance.
Available in Chrome Silver and Black housing finishes, the luminaire features an IP65 rating against dust and water ingress.
The PMW RK Series Post Top Solar Light system integrates a top-mounted monocrystalline silicon solar panel, a high-capacity 12.8V Li-ion battery pack, and high-efficiency LED drivers.
Offered in 15W, 20W, and 30W models, the RK series produces brightness levels ranging from 2,550 lumens to 5,100 lumens.
Each fixture offers broad color temperature versatility, featuring 5 selectable CCT options: 3000K, 3500K, 4000K, 5000K, and 5700K.
Operating control is fully managed via an included remote controller alongside integrated night sensor and time controller capabilities.
This enables flexible lighting schedules to conserve battery power throughout the night while ensuring consistent illumination when needed.
Depending on the model wattage, the RK series covers mounting heights from 3 meters up to 6 meters with recommended installation spacing between 10 and 20 meters.
This combination of durable housing, multi-CCT options, and smart control features makes the PMW RK Series a reliable choice for zero-grid outdoor lighting applications.
Product Detail
PMW RK Series
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Mono Solar Panel | Li-ion Battery | CCT Options (K) | Lamp Size ∅×H (mm) | Mounting Height (m) | Installation Distance (m) | Weight (kg) |
| 01.STLSRK-15.00 | STLSRK-15 | 15W | 2,550 lm | 30W – 18V | 12.8V 15AH | 3000K, 3500K, 4000K, 5000K, 5700K | Ø 570 x 230 mm | 3 – 4m | 10 – 14m | 6.1 kg |
| 01.STLSRK-20.00 | STLSRK-20 | 20W | 3,400 lm | 40W – 18V | 12.8V 30AH | 3000K, 3500K, 4000K, 5000K, 5700K | Ø 660 x 240 mm | 3 – 5m | 10 – 17m | 8.3 kg |
| 01.STLSRK-30.00 | STLSRK-30 | 30W | 5,100 lm | 50W – 18V | 12.8V 45AH | 3000K, 3500K, 4000K, 5000K, 5700K | Ø 760 x 250 mm | 4 – 6m | 14 – 20m | 10.8 kg |
(Note: Housing finishes: Chrome Silver & Black. Base mounting diameter: Ø 90.5mm spigot connection. Protection rating: IP65 outdoor protection. Controls: Remote control, night sensor, time controller.)-Refer Catalogue
Frequently Asked Questions (FAQ)
Q: What housing finishes and mounting connection sizes are available for the RK series?
A: The RK series features an aluminum alloy case available in Chrome Silver and Black finishes with a heavy-duty mounting base designed for standard Ø 90.5 mm post top spigots.
Q: What color temperature (CCT) options does the RK series offer?
A: All models in the RK series support 5 selectable color temperatures: 3000K, 3500K, 4000K, 5000K, and 5700K.
Q: How is the RK series solar light controlled?
A: The luminaire includes a handheld remote controller, an automatic night dusk-to-dawn sensor, and an integrated time controller to manage operating schedules.
Q: What installation spacing and mounting heights are recommended for the RK series?
A: Recommended pole mounting heights range from 3m to 6m, with suggested installation distances between 10m and 20m depending on the chosen wattage (15W, 20W, or 30W).
