Description

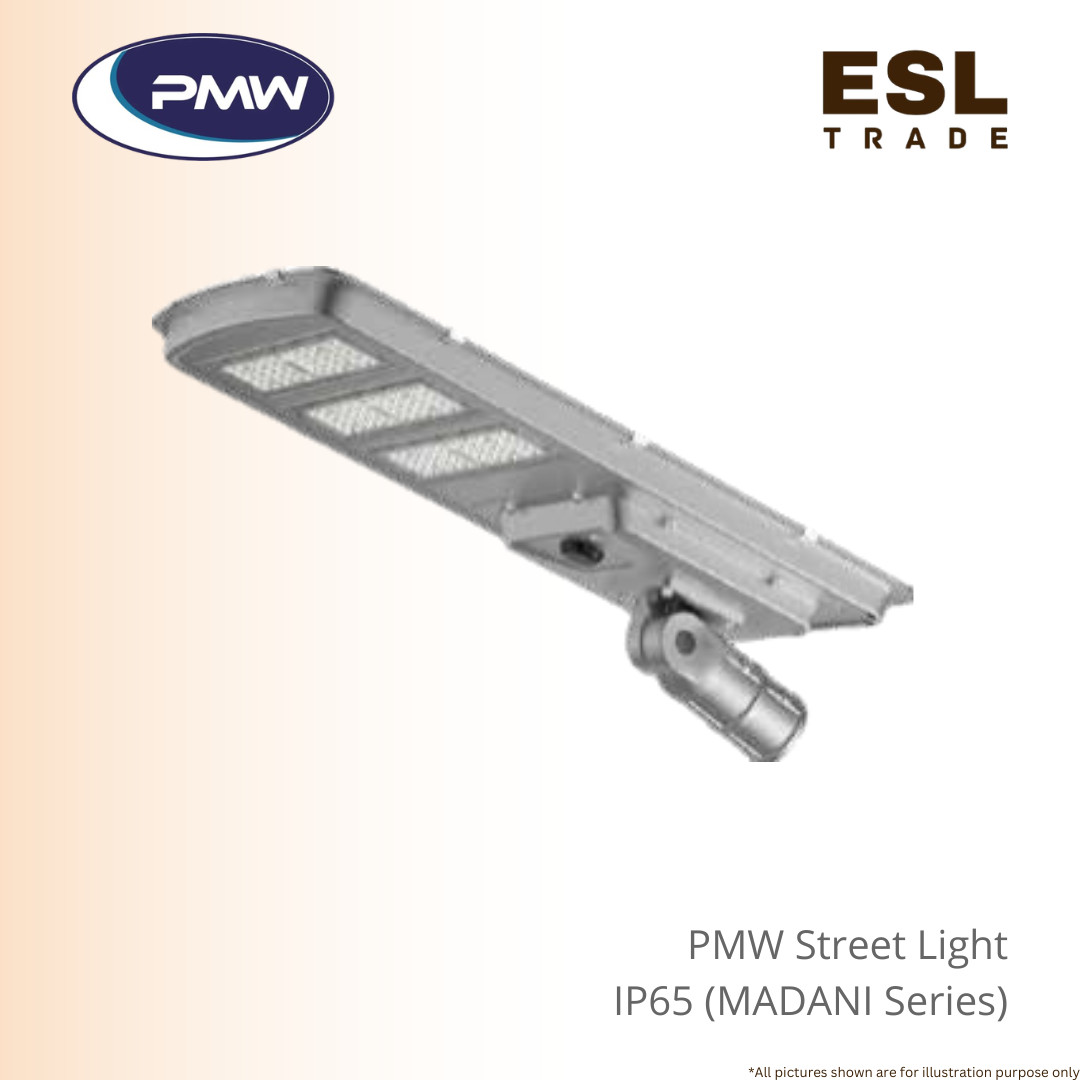

PMW MADANI Series All-in-One Solar Street Light High-Efficiency Mono Solar Panel & LiFePO4 Battery 20W-30W Outdoor Road Lighting Reliable
The PMW MADANI Series All-in-One Solar Street Light offers an energy-independent outdoor lighting solution designed for public roadways, commercial compounds, residential walkways, and parking lots.
PMW MADANI Series All-in-One Solar Street Light is built with an all-in-one integrated housing, this unit simplifies on-site assembly and post-installation positioning adjustments.
Engineered to perform in demanding outdoor conditions, the fixture carries an IP65 ingress protection rating and operates across an ambient temperature range from -20°C to +60°C.
PMW MADANI Series All-in-One Solar Street Light delivers an operational lifetime of up to 50,000 hours with a Color Rendering Index (CRI) rating of Ra70.
The luminaire integrates high-efficiency monocrystalline solar panels alongside a long-lasting LiFePO4 battery pack and high-output LED chips.
PMW MADANI Series All-in-One Solar Street Light is available in 20W and 30W models, the MADANI series provides light outputs of 3,400 lumens and 5,100 lumens respectively, operating at a clean 6500K daylight color temperature.
To balance performance and battery reserve retention throughout the night, the MADANI series utilizes an automated progressive dimming cycle.
PMW MADANI Series All-in-One Solar Street Light is operating for 4 hours at 100% full output, 2 hours at 60%, and 6 hours at 40%, the system provides 2 full days of autonomy during rainy or overcast conditions.
This combination of durable housing, long battery lifecycle, and optimized power management makes the PMW MADANI Series a practical solution for zero-grid lighting applications
Product Detail
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Mono Solar Panel | LiFePO4 Battery | CCT (K) | Lamp Size LxWxH (mm) |
| 01.MADANI020.00 | MDN-020 | 20W | 3,400 lm | 70W – 18V | 12.8V 24AH | 6500K | 910 x 400 x 280 |
| 01.MADANI030.00 | MDN-030 | 30W | 5,100 lm | 90W – 18V | 12.8V 30AH | 6500K | 1168 x 400 x 280 |
(Note: Standard dimming profile across all models: 4 hrs at 100%, 2 hrs at 60%, and 6 hrs at 40% with 2 days autonomy backup. Operating protection: IP65 rating, Ra70 CRI, and 50,000-hour LED lifespan.)
Frequently Asked Questions (FAQ)
Q: What is the benefit of the MADANI series all-in-one design?
A: The integrated all-in-one construction houses the monocrystalline solar panel, LiFePO4 battery, and LED source within one fixture, making installation straightforward while offering easy angle adjustments on light poles.
Q: What dimming schedule and backup autonomy does the MADANI series offer?
A: The fixture operates on a 12-hour preset dimming cycle: 4 hours at 100% full output, 2 hours at 60%, and 6 hours at 40% output, providing up to 2 days of autonomy during rainy or cloudy weather.
Q: What color temperature and illumination output levels are available?
A: The MADANI series comes in 6500K ( daylight white). The 20W model delivers 3,400 lumens, while the 30W model yields 5,100 lumens.
Q: What environmental protection ratings apply to this series?
A: The luminaire carries an IP65 protection rating and is rated to operate reliably in temperatures ranging from -20°C to +60°C with an expected lifespan of 50,000 hours
