Description

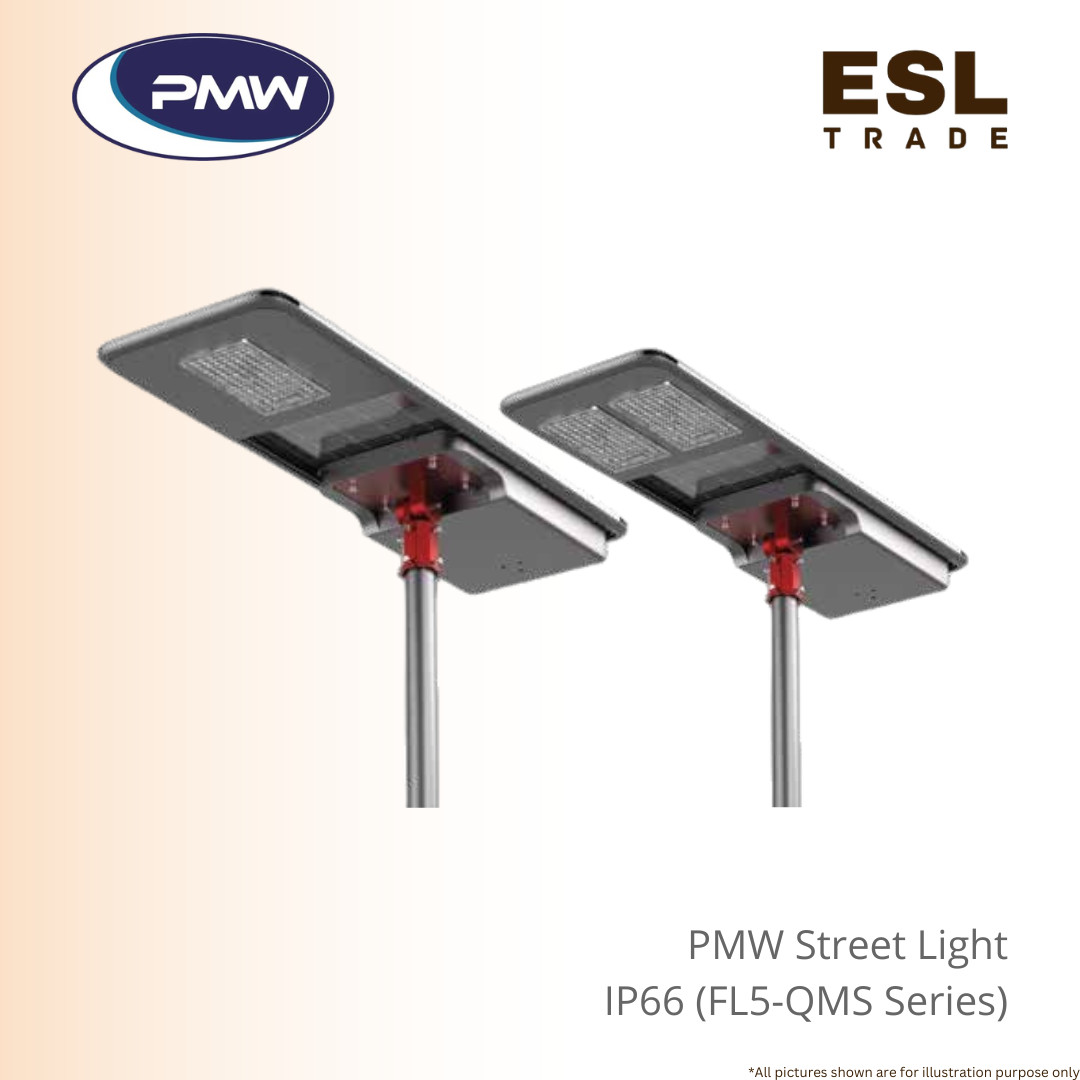

PMW FL5-QMS Series Integrated Solar Street Light High-Efficiency Mono Solar Panel & LiFePO4 Battery 40W-120W Excellent for Industrial Outdoor Lighting Solution
The PMW FL5-QMS Series All-in-One Solar Street Light offers an energy-efficient outdoor illumination system designed specifically for municipal roads, commercial parking lots, residential avenues, and industrial sites.
Manufactured with an aluminum alloy body treated with anodic oxidation, the housing is engineered to resist environmental wear while maintaining an IP66 ingress protection rating and an IK10 impact resistance rating.
Built to perform reliably across variable outdoor climates, it features an operating temperature tolerance ranging from -25°C to +65°C and an expected lifespan of up to 50,000 hours.
The fixture seamlessly integrates a high-efficiency monocrystalline solar panel, long-lasting LiFePO4 battery system, intelligent solar controller, and high-output LED source into a streamlined unit.
Available in power outputs from 40W up to 120W, the FL5-QMS series yields illumination outputs spanning 6,400 lumens to 19,200 lumens with customizable color temperatures (CCT) from 2700K to 6500K.
Designed for optimized energy management, the unit utilizes a scheduled working cycle: 2 hours at 100%, 2 hours at 70%, 2 hours at 50%, followed by 6 hours at 20% output.
This automated dimming schedule balances operational brightness with battery conservation throughout the night.
System management is simplified via a smart remote controller, which supports long-range operation including drone remote compatibility allowing maintenance crews to adjust settings conveniently without manual access to high poles.
With mounting height capabilities extending up to 15 meters and a standard 60mm spigot socket, the PMW FL5-QMS Series provides a dependable off-grid lighting solution for modern infrastructure.
Product Details :
PMW FL5-QMS Series
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Mono Solar Panel | LiFePO4 Battery | CCT Range (K) | Mounting Height (m) | Lamp Size (LxWxH mm) | Weight (kg) |
| 01.FL5-QMS040.00 | FL5-040 | 40W | 6,400 lm | 80W – 18V | 12.8V 30AH | 2700K – 6500K | 6 – 8m | 1014 x 497 x 115 | 14.5 kg |
| 01.FL5-QMS060.00 | FL5-060 | 60W | 9,600 lm | 100W – 18V | 12.8V 42AH | 2700K – 6500K | 6 – 8m | 1174 x 497 x 115 | 18.0 kg |
| 01.FL5-QMS080.00 | FL5-080 | 80W | 12,800 lm | 120W – 18V | 12.8V 48AH | 2700K – 6500K | 10 – 12m | 1374 x 497 x 115 | 20.0 kg |
| 01.FL5-QMS100.00 | FL5-100 | 100W | 16,000 lm | 150W – 36V | 25.6V 30AH | 2700K – 6500K | 10 – 15m | 1719 x 497 x 115 | 28.0 kg |
| 01.FL5-QMS120.00 | FL5-120 | 120W | 19,200 lm | 180W – 36V | 25.6V 36AH | 2700K – 6500K | 10 – 15m | 1904 x 497 x 115 | 33.0 kg |
(Note: Operating profile across all FL5-QMS models is set to 2 Hrs at 100%, 2 Hrs at 70%, 2 Hrs at 50%, and 6 Hrs at 20% brightness.) – Refer Catalogue
Frequently Asked Questions (FAQ)
Q: What is the pre-programmed working schedule for the PMW FL5-QMS series?
A: The FL5-QMS series operates on a 12-hour progressive dimming profile: 2 hours at 100% full power, 2 hours at 70% output, 2 hours at 50% output, and 6 hours at 20% standby brightness to conserve energy while maintaining night-long visibility.
Q: What size pole arm spigot is required for installation?
A: The fixture features a mounting connection designed to fit standard Ø 60mm light pole mounting spigots.
Q: Can the light settings be controlled remotely?
A: Yes. The FL5-QMS series is equipped with smart remote control support, which includes compatibility with drone remote controllers for easy adjustments without needing physical access to the fixture post-installation.
Q: What durability ratings does the FL5-QMS housing feature?
A: The fixture features an IP66 weather resistance rating against water and dust ingress, an IK10 impact resistance rating, and an anodic oxidation treated aluminum alloy body suitable for working temperatures from -25°C to +65°C
