Description

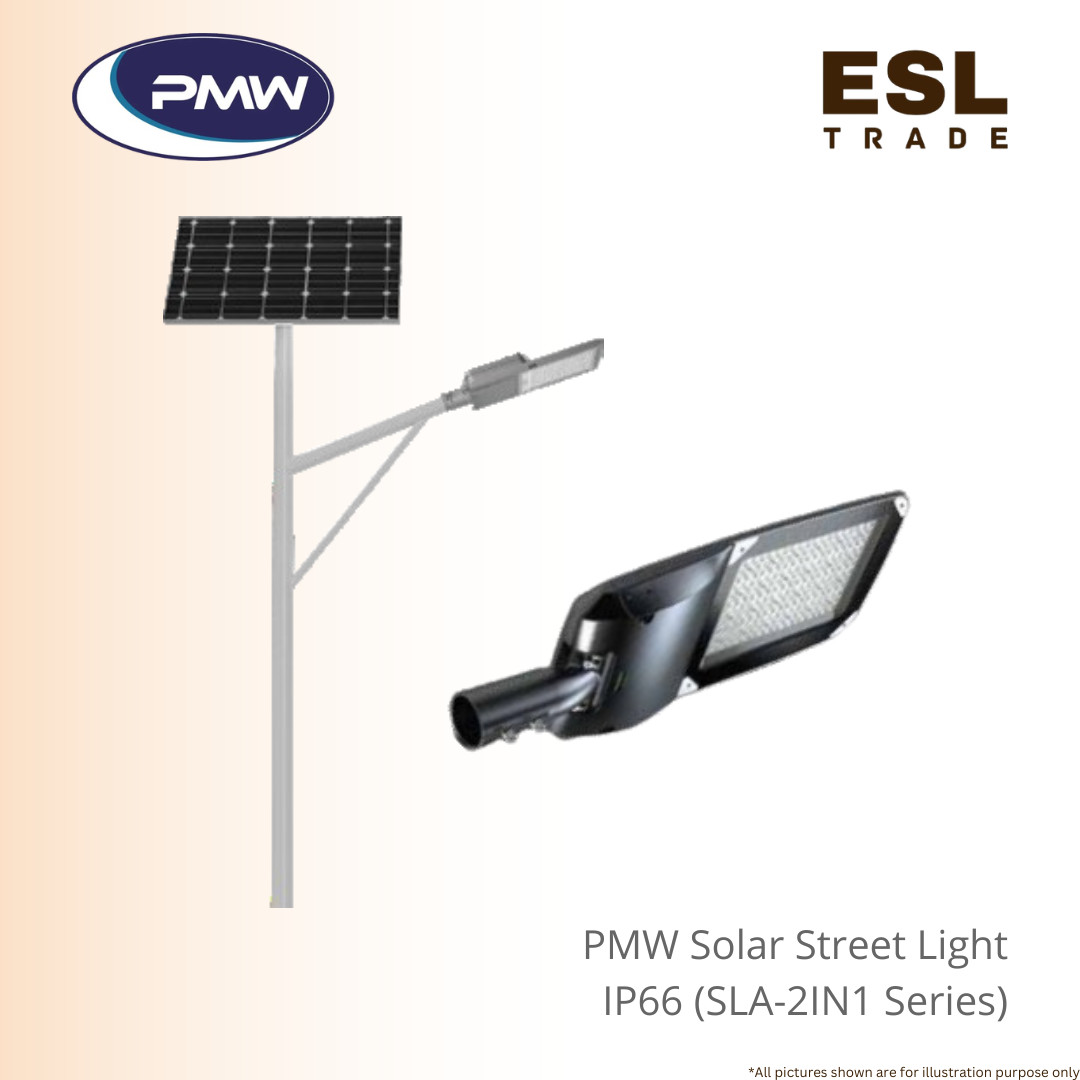

PMW SLA-2IN1 Series Solar Street Light Wind-Proof Cast Aluminum Heavy-Duty Outdoor Infrastructure Lighting Superior
The PMW SLA-2IN1 Series Solar Street Light delivers reliable outdoor illumination engineered for highway, commercial, and industrial infrastructure installations.
PMW SLA-2IN1 Series Solar Street Light is designed with a streamlined aerodynamic body, the fixture offers a wind-proof structural profile that minimizes wind resistance during high-velocity weather conditions.
PMW SLA-2IN1 Series Solar Street Light is constructed from heavy-duty cast aluminum housing finished with protective powder coat paint, it ensures thermal dissipation and resistance against harsh outdoor environments.
The PMW SLA-2IN1 Series Solar Street Light system carries an IP66 weather protection rating and operates reliably across temperature extremes from -20°C to +60°C, delivering an operational lifespan of up to 50,000 hours with a Color Rendering Index (CRI) of Ra70.
Engineered as a 2-in-1 split system, each unit pairs high-output LEDs with external high-efficiency monocrystalline solar panels and long-lifecycle LiFePO4 battery modules.
LED drivers are hard-mounted directly to the die-cast aluminum back casting, providing direct thermal conduction for maximum optical stability.
Power options range from 70W up to 150W, generating output from 10,355 lumens to 22,332 lumens across warm-to-neutral color temperatures (3000K to 4000K).
To optimize power reserves, the SLA-2IN1 series features a pre-programmed dimming schedule: 4 hours at 100% full brightness, 2 hours at 60%, followed by 6 hours at 40% output.
This intelligent energy management profile provides 2 days of continuous autonomy, safeguarding against power failure during overcast weather.
Designed for mounting heights from 4 to 12 meters with pole spacing coverage up to 35 meters, it fits standard Ø 66 mm spigot mounts for parking lots, avenues, main roads, and mining facilities.
Product Detail
PMW SLA-2IN1 Series
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Mono Solar Panel | LiFePO4 Battery | CCT Range (K) | Mounting Height (m) | Mounting Distance (m) | Dimensions LxWxH (mm) | Weight (kg) |
| 01.SLA2IN1070.00 | SLA070 | 70W | 10,355 lm | 175W – 36V | 25.6V 48AH | 3000K – 4000K | 4 – 6m | 15 – 20m | 620 x 272 x 108 | 3.7 kg |
| 01.SLA2IN1080.00 | SLA080 | 80W | 11,651 lm | 200W – 36V | 25.6V 60AH | 3000K – 4000K | 4 – 6m | 15 – 25m | 620 x 272 x 108 | 3.7 kg |
| 01.SLA2IN1100.00 | SLA100 | 100W | 15,469 lm | 250W – 36V | 25.6V 84AH | 3000K – 4000K | 5 – 7m | 20 – 25m | 720 x 108 | 4.5 kg |
| 01.SLA2IN1120.00 | SLA120 | 120W | 18,562 lm | 250W – 36V | 25.6V 96AH | 3000K – 4000K | 5 – 8m | 20 – 30m | 720 x 272 x 108 | 4.5 kg |
| 01.SLA2IN1150.00 | SLA150 | 150W | 22,332 lm | 270W – 36V | 25.6V 120AH | 3000K – 4000K | 8 – 12m | 25 – 35m | 750 x 115 | 5.7 kg |
Note: Standard dimming profile: 4 hrs at 100%, 2 hrs at 60%, and 6 hrs at 40% with 2 days autonomy. Spigot socket size: Ø 66mm.) – Refer Catalogue
Frequently Asked Questions (FAQ)
Q: What dimming schedule does the PMW SLA-2IN1 Series use?
A: The fixture operates on a preset 12-hour dimming cycle: 4 hours at 100% full brightness, 2 hours at 60% brightness, and 6 hours at 40% brightness, providing 2 full days of rainy-day autonomy.
Q: What pole spigot size is required for installation?
A: The SLA-2IN1 series is designed to fit standard light pole mounting spigots with a diameter of
Ø 66mm.
Q: How does the SLA-2IN1 fixture handle high wind conditions and thermal management?
A: The housing features an aerodynamic wind-proof streamlined design. Thermal dissipation is achieved by hard-mounting the LED drivers directly to the heavy-duty die-cast aluminum back casting.
Q: What color temperatures and CRI values are provided by this series?
A: The SLA-2IN1 series offers color temperature options between 3000K (warm white) and 4000K (neutral white) with a Color Rendering Index rating of Ra70.
