Description

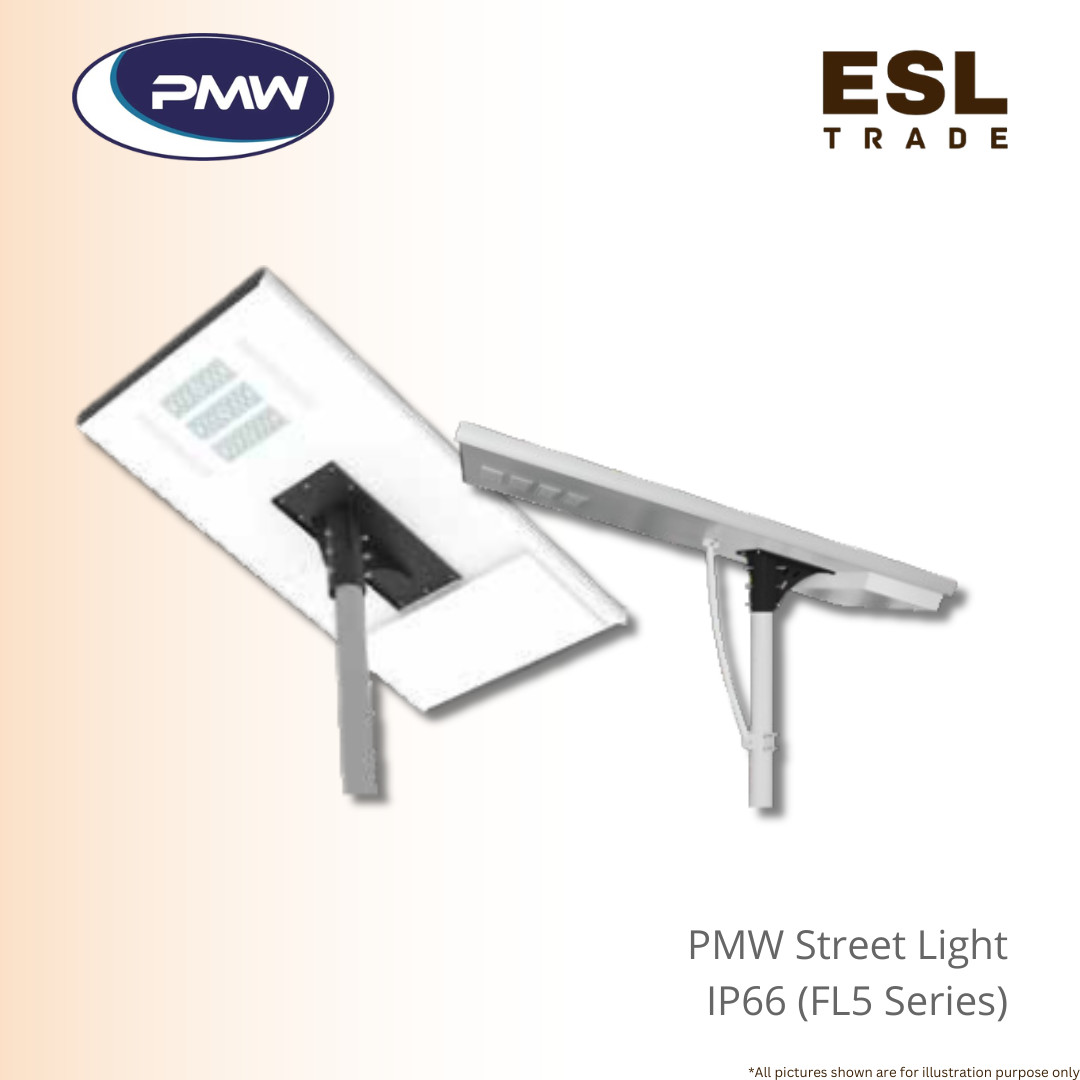

PMW FL5 Series All-in-One Solar Street Light High-Efficiency Mono Solar Panel & LiFePO4 Battery 20W-150W Excellent for Outdoor Industrial Lighting Solutions
The PMW FL5 Series All-in-One Solar Street Light provides high-performance outdoor illumination designed for commercial, residential, and industrial environments.
The PMW FL5 Series All-in-One Solar Street Light is built with a heavy-duty aluminum alloy frame treated with anodic oxidation, the FL5 series Solar Street Light provides reliable durability across challenging outdoor settings while supporting an IP66 weather-resistant rating and an operating temperature range of -25°C to 45°C.
Engineered for optimal solar energy harvesting, each unit integrates high-efficiency monocrystalline solar panels alongside long-lasting LiFePO4 battery storage.
The PMW FL5 Series All-in-One Solar Street Light system offers variable power configurations ranging from 20W up to 150W, delivering light outputs from 3,400 lumens to 26,960 lumens across adjustable CCT ranges from 2700K to 6500K.
Advanced control capabilities include a smart remote controller (compatible with drone-based remote operation) to easily manage brightness settings and operational modes.
Depending on your installation needs, the PMW FL5 Series All-in-One Solar Street Light supports multiple dimming profiles and autonomy configurations ranging from 2-day to 3-day backup autonomy to maintain lighting continuity during overcast weather.
The fixture features a standard 96mm spigot mounting connection and offers three customizable installation methods to fit various pole designs.
Whether lighting main avenues, residential streets, mining areas, courtyards, or commercial parking lots, the PMW FL5 Series provides a dependable energy-independent lighting solution.
Product Detail
PMW FL5 Series Technical Specifications
| Model Code | Wattage (W) | Lumens (lm) | Mono Solar Panel | LiFePO4 Battery | CCT Range (K) | Mounting Height (m) | Lamp Size (LxWxH mm) | Weight (kg) |
| FL5-020 | 20W | 3,400 lm | 50W – 18V | 12.8V 15AH | 2700K – 6500K | 7 – 8m | 796 x 505 x 60 | 13.2 kg |
| FL5-040 | 40W | 6,800 – 7,600 lm | 65W–90W (18V) | 12.8V 30AH–60AH | 2700K – 6500K | 4 – 8m | 990 x 405 x 60 / 1230 x 405 x 60 | 13.5 – 27.0 kg |
| FL5-050 | 50W | 8,500 lm | 90W – 18V | 12.8V 45AH | 2700K – 6500K | 7 – 8m | 1230 x 405 x 60 | 18.4 kg |
| FL5-060 | 60W | 12,090 lm | 120W–280W (18V/36V) | 12.8V 45AH / 25.6V 48AH–105AH | 2700K – 6500K | 7 – 9m | 1580 x 780 x 60 / 1615 x 600 x 60 | 24.2 – 45.0 kg |
| FL5-080 | 80W | 15,587 lm | 180W–300W (18V/36V) | 12.8V 75AH / 25.6V 60AH–140AH | 2700K – 6500K | 7 – 12m | 1530 x 760 x 60 / 1800 x 900 x 60 | 32.2 – 50.0 kg |
| FL5-100 | 100W | 19,105 lm | 200W–300W (36V) | 25.6V 45AH–176AH | 2700K – 6500K | 7 – 12m | 1580 x 780 x 60 / 1795 x 1110 x 60 | 34.6 – 60.0 kg |
| FL5-120 | 120W | 22,365 lm | 200W–400W (36V) | 25.6V 60AH–210AH | 2700K – 6500K | 7 – 12m | 1580 x 780 x 60 / 1795 x 1110 x 60 | 40.8 – 70.0 kg |
| FL5-150 | 150W | 26,960 lm | 270W–400W (36V) | 25.6V 120AH–270AH | 2700K – 6500K | 10 – 12m | 1800 x 900 x 60 / 1795 x 1110 x 60 | 54.1 – 84.0 kg |
(Note: Solar panel wattages, battery capacities, sizes, and weights vary based on chosen dimming and autonomy profiles.) – Detail refer Catalogue
Frequently Asked Questions (FAQ)
Q: What installation options and pole spigot sizes are supported by the PMW FL5 series?
A: The PMW FL5 Series comes standard with a Ø 96mm spigot connection and supports 3 different customizable mounting installation methods to fit various pole structures and site requirements.
Q: How long can the FL5 series operate during rainy or cloudy weather?
A: Depending on the specific configuration and dimming profile chosen (preset dimming, 12-hour 100% continuous lighting, or motion sensor standby mode), the unit provides either 2 days or 3 days of autonomy backup.
Q: Can the light settings be controlled remotely after installation?
A: Yes. The FL5 series includes smart remote control capabilities, including support for drone remote controllers for convenient adjustment on elevated light poles.
Q: What color temperatures (CCT) are available for the FL5 series?
A: All models support an adjustable CCT range from 2700K (warm white) to 6500K (cool daylight).
