Description

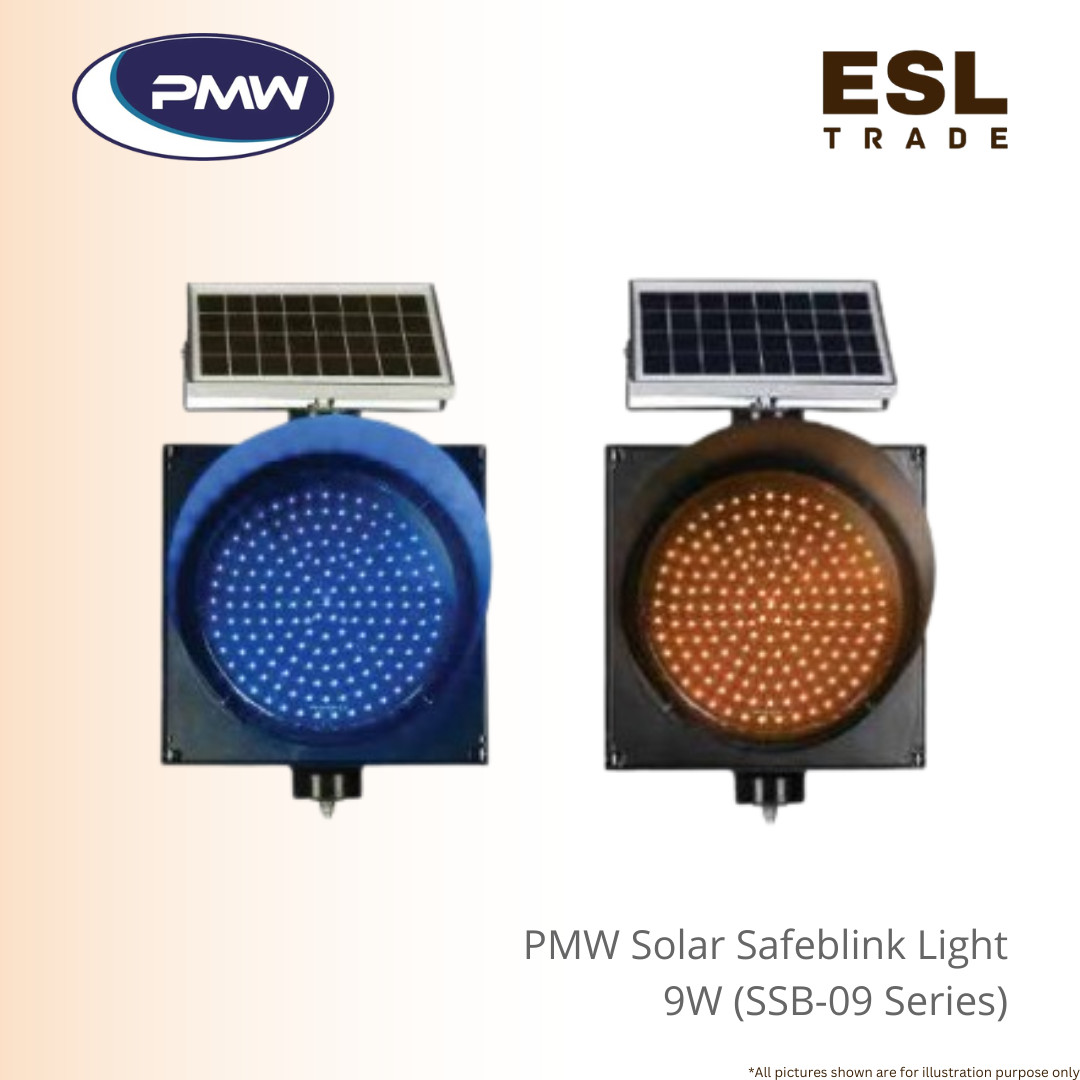

PMW SOLAR SAFEBLINK LIGHT 300MM Series 9W Solar Traffic Flashing Warning Light Blue/Yellow 500m Visual Distance Road Safety Reliable
The PMW SOLAR Traffic SAFEBLINK LIGHT-300MM Series provides off-grid traffic control and hazard warning capability for roadways, construction sites, pedestrian crossings, and industrial perimeters.
Housed in a durable UV-resistant polycarbonate (PC) casing, the signal fixture features an IP55 ingress protection rating and operates within ambient temperatures ranging from -40°C to +80°C.
It has an expected LED service lifespan of 50,000 hours and a battery service life exceeding 2 years.
The luminaire features a 300mm optical lens equipped with 99 LEDs, delivering high-visibility signal illumination with a light intensity exceeding 400cd and a 30° viewing angle (Left/Right/Allow).
The PMW SOLAR Traffic SAFEBLINK LIGHT-300MM is available in two signal colors Blue (470±5mm wavelength) and Yellow the system provides a visual warning distance of up to 500 meters.
PMW SOLAR Traffic SAFEBLINK LIGHT-300MM is powered is supplied by an integrated 8W-16V solar panel (0.5A peak current) paired with a 12.8V 3000mAh Li-ion battery pack.
Operating at 9W power consumption, the fixture pulses at a standard flashing frequency of 45±5 times per minute.
To optimize energy usage, it features an automatic four-grade dimming function that adapts output based on ambient light conditions.
This power management enables up to 6 continuous days of backup autonomy during overcast or rainy conditions.
Weighing 6.45 kg (including mounting spigot) and measuring 350 x 350 x 180mm (with a 220mm visor hood), the PMW SOLAR Traffic SAFEBLINK LIGHT-300MM Series offers a dependable safety warning solution for critical traffic zones.
Product Detail
PMW SOLAR SAFEBLINK LIGHT-300MM
| Product Code | Model Code | Signal Color | Wattage (W) | Solar Panel | Li-ion Battery | LED Count / Intensity | Wavelength / Visual Dist. | Flashing Frequency | Continuous Working (Cloudy) | Dimensions LxWxH (mm) | Weight (incl. Spigot) |
| 01.SSB-B-300-09.00 | SSB-09 | Blue | 9W | 8W – 16V | 12.8V 3000mAh | 99 pcs / >400cd | 470±5mm / 500m | 45±5 Times/Min | ~6 Days | 350 x 350 x 180 | 6.45 kg |
| 01.SSB-Y-300-09.00 | SSB-09 | Yellow | 9W | 8W – 16V | 12.8V 3000mAh | 99 pcs / >400cd | Standard Yellow / 500m | 45±5 Times/Min | ~6 Days | 350 x 350 x 180 | 6.45 kg |
Note: Material:
- Polycarbonate (PC) housing with visor hood depth of 220mm.
- Viewing angle: 30° Left/Right/Allow.
- Dimming feature: Automatic dimming including 4 grades.
- Solar Peak Current: 0.5A.
- Environmental ratings: IP55, -40°C to +80°C
- operating temperature, 50,000-hour LED life, >2-year battery lifespan.
Frequently Asked Questions (FAQ)
Q: What signal colors are available for the PMW SOLAR SAFEBLINK 300MM series?
A: The series is available in Blue (470±5mm wavelength) and Yellow LED signal configurations.
Q: What is the visibility range and flashing rate of this traffic warning light?
A: It provides a visual warning distance of up to 500 meters at a standard flashing rate of 45±5 times per minute.
Q: How long can the light operate during continuous rainy or cloudy days?
A: Driven by its integrated 4-grade automatic dimming system and Li-ion battery, the unit provides roughly 6 days of continuous operation during overcast conditions.
Q: What are the physical dimensions and protection ratings of the unit?
A: The main signal box measures 350 x 350 x 180mm (with a 220mm visor hood), weighs 6.45 kg including the mounting spigot, and features IP55 weather resistance with an operating range of -40°C to +80°C.
