BSLight Eco Series LED Street Light IP65 IK08 Rated with 10KV Surge Protection for Pathways and Parking Areas (100W-200W) Unmatched Efficiency

Description

BSLight Eco Series LED Street Light IP65 IK08 Rated with 10KV Surge Protection for Pathways and Parking Areas (100W-200W) Unmatched Efficiency

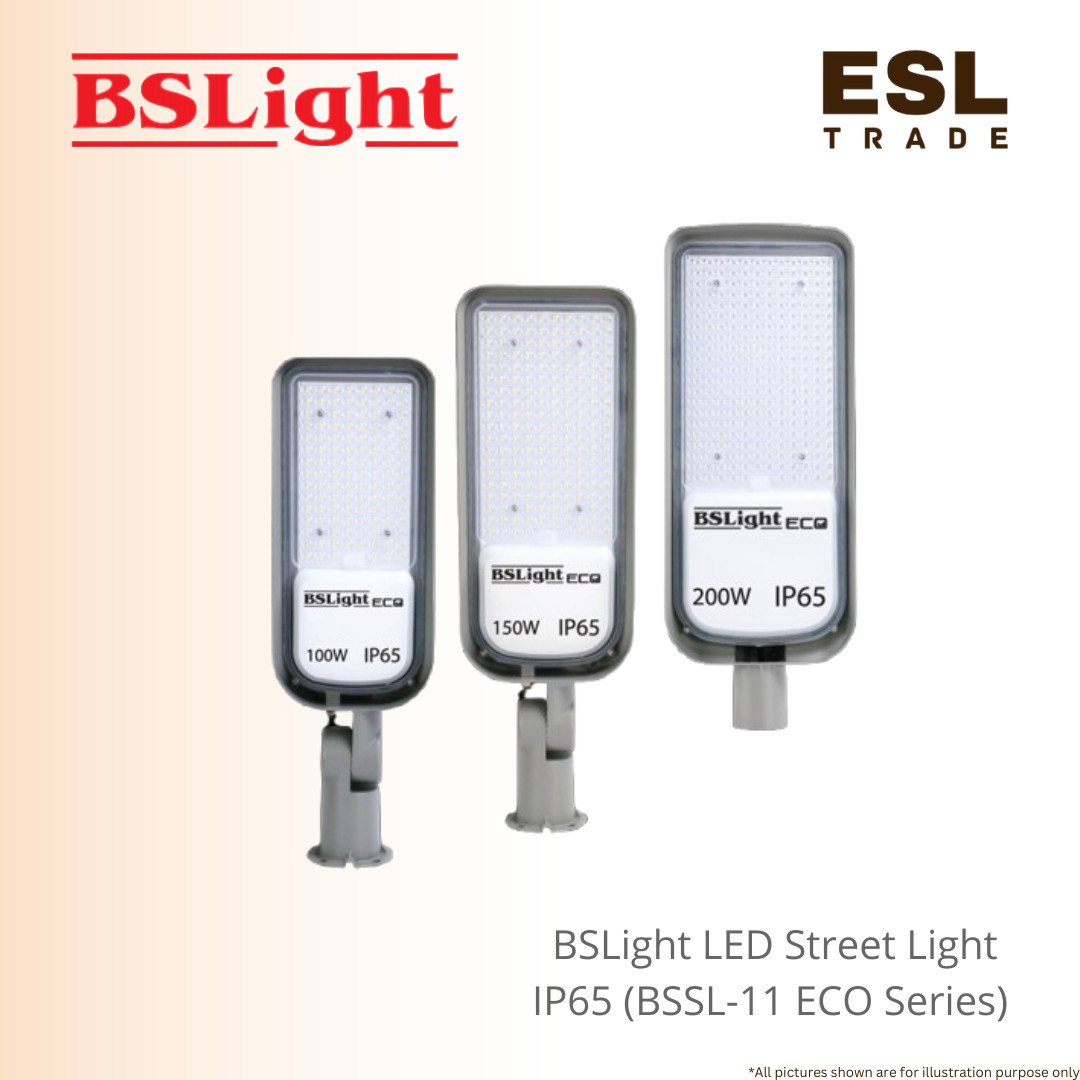

Upgrade your public and commercial infrastructure with the premium BSLight Eco Series LED Street Light.

Meticulously engineered to balance robust outdoor durability with high-system luminosity, this commercial-grade exterior luminaire is the ultimate choice for pathways, stadiums, parking areas, gardens, and diverse residential or commercial zones.

Constructed using a heavy-duty solid aluminum die-casting housing coupled with a high-grade polycarbonate material diffuser, the Eco Series provides superior structural integrity and optimal thermal management to combat harsh outdoor environments.

Safety and long-term electrical reliability stand at the forefront of this street lighting system.

Each fixture comes fully integrated with a robust 10KV surge protector, insulating the sensitive interior electronics from severe lightning strikes and power grid fluctuations.

Operating smoothly across a standard voltage window of AC100-240V (50/60Hz), the system maintains an ultra-efficient 0.95 power factor, reducing operational electricity waste for large-scale municipal or corporate deployments.

Furthermore, it features high-brightness LED chips rated for a 30,000-hour operational lifespan, minimizing routine maintenance and replacement cycles.

The Eco Series delivers exceptional illumination coverage via an advanced 70°/140° asymmetric beam angle, spreading light evenly across wide lanes while maintaining a Color Rendering Index of CRI >70 for crisp nighttime visibility.

Engineered for adaptability, the 100W and 150W variations support both Post Top and Side Entry mounting with up to a 180° adjustable angle mechanism, ensuring simple alignment for contractors.

Available in scalable outputs from 100W (12,000 LM) to a massive 200W (24,000 LM) structure, the Eco Series represents a sophisticated, future-proof solution for sustainable outdoor area lighting.

Product Details

• Brand & Product Series : BSLight LED Street Light <<ECO SERIES>>
• Housing Construction : Solid Aluminium Die-Casting Housing | Polycarbonate Material Diffuser
• Primary Target Applications : Parking Areas, Stadiums, Pathways, Gardens, Commercial & Residential Areas
• Mechanical Protections : IP65 Ingress Protection (Waterproof) | IK08 Mechanical Impact Rated
• Surge Protection Rating : Integrated 10KV Surge Protector
• Color Rendering Index (CRI) : Color Rendering Index: CRI > 70
• Optical Distribution : 70° / 140° Specialized Asymmetric Street Beam Angle
• Luminous Lifespan : High Brightness and Long Life LED Chips (30,000 Hours)
• Input AC Operating Range : AC 100 – 240V | 50/60Hz Utility Grid Compatible
• Power Factor / Efficiency : High Performance Power Factor (PF): 0.95
• Compatible Pole Diameters : Fits 45mm ~ 60mm Street Light Arms / Poles
• Operating Temperature Threshold : Engineered to Endure -20°C ~ 50°C Environmental Conditions
• Model: BSSL-1100-1/ECO : 100W | 3000K & 5000K | 12,000 LM | 567×179×99 mm | Post Top & Side Entry (180° Adj.) | Install Height: 5~7m
• Model: BSSL-1150-1/ECO : 150W | 3000K & 5000K | 18,000 LM | 633×203×99 mm | Post Top & Side Entry (180° Adj.) | Install Height: 7~9m
• Model: BSSL-1200-1/ECO : 200W | 3000K & 5000K | 24,000 LM | 624×234×92 mm | Side Entry Only (90° Fixed) | Install Height: 9~11m

Common FAQs for BSLight Eco Series LED Street Lights

Q1: What does the combination of IP65 and IK08 ratings mean for outdoor durability?

A: These ratings mean the street light is heavily armored against natural elements and vandalism. The IP65 rating ensures the housing is dust-tight and completely protected against heavy rainfall and water jets. The IK08 rating indicates high resistance to mechanical impacts, meaning the polycarbonate diffuser won’t shatter easily if struck by external forces like rocks or branches.

Q2: What mounting options are available, and can the angle be adjusted during installation?

A: The mounting configuration depends slightly on the wattage model chosen:

• 100W & 150W Models: Support both Post Top and Side Entry mounting layouts, and offer a 180° angle adjustable mechanism to precisely line up your lighting footprint.

• 200W Model: Dedicated for high-output Side Entry mounting with a standard 90° fixed configuration.

• All models perfectly match standard industrial pole/arm diameters spanning 45mm to 60mm.

Q3: How does the 10KV surge protector benefit public or commercial roadways?

A: Outdoor street light poles act as massive ground conductors, making them prime targets for lightning strikes and utility line voltage spikes. The integrated 10KV surge protector isolates the system’s interior circuits, capturing high-voltage transients before they can damage the LED chips, saving you thousands in early replacement costs.

Q4: What color temperatures (CCT) are offered in the Eco Series?

A: The Eco Series is manufactured with dual color-temperature choices depending on your layout preference. You can opt for 3000K (Warm White) ideal for reducing glare in residential settings or architectural landscapes or 5000K (Cool/Daylight White) to maximize visibility on fast commercial roadways and active parking perimeters.

Q5: What are the recommended mounting heights for the different wattages?

A: To hit professional lux levels on the ground, follow these recommended guidelines:

• 100W Model: Best suited for a mounting height of 5 to 7 meters.

• 150W Model: Best suited for a mounting height of 7 to 9 meters.

• 200W Model: Best suited for elevated industrial applications from 9 to 11 meters
