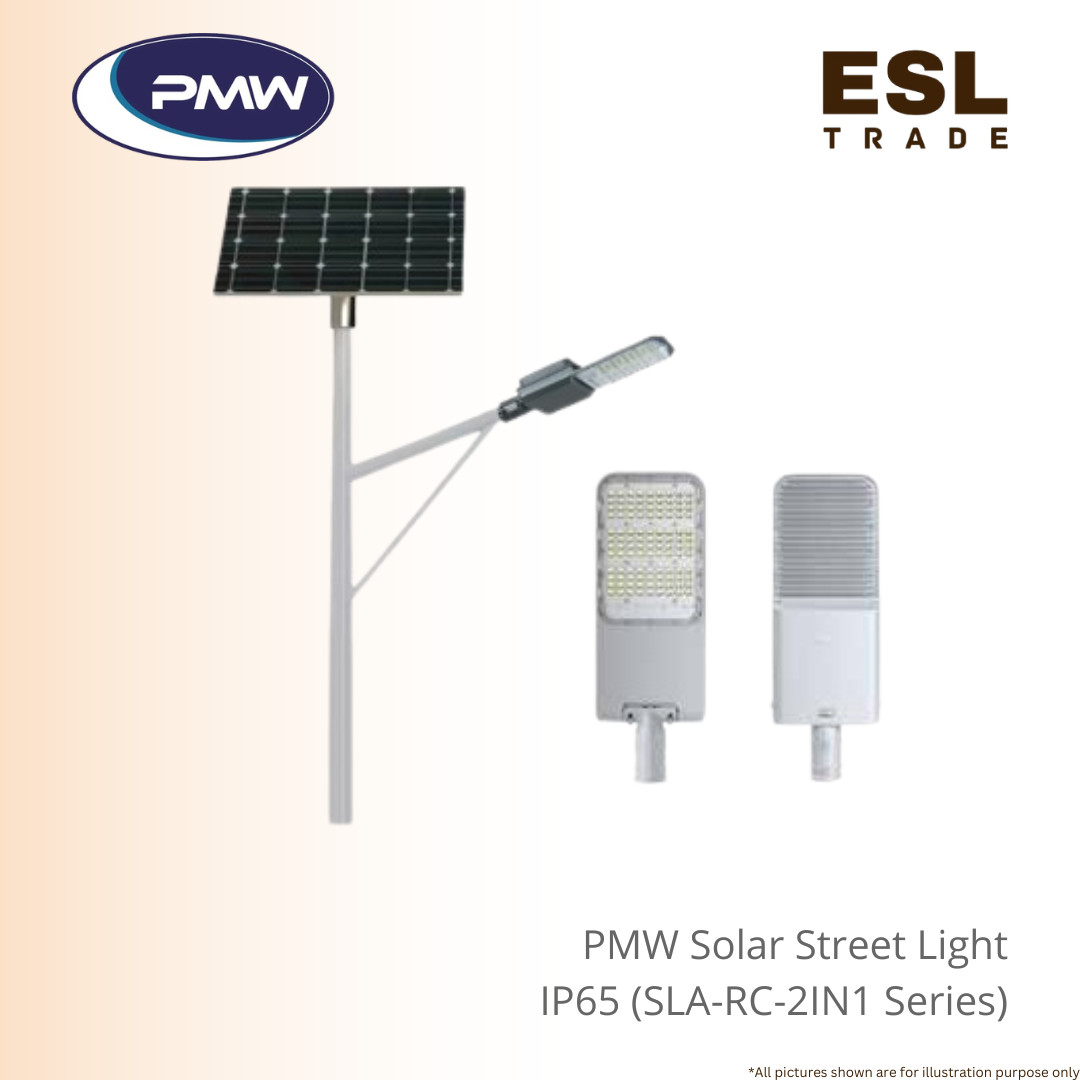

PMW SLA-RC-2IN1 Series Solar Street Light High-Output Bridgelux LED & Integrated Lithium Battery 40W-150W Industrial Outdoor Lighting Solution Reliable
The PMW SLA-RC-2IN1 Series Solar Street Light delivers energy-independent outdoor lighting designed for municipal avenues, industrial parks, parking lots, residential streets, and mining areas.
PMW SLA-RC-2IN1 Series Solar Street Light is constructed from durable die-cast aluminum housing, the fixture features an integrated assembly that houses the lithium battery storage system, intelligent solar controller, and high-output Bridgelux LED light engine within a compact footprint.
PMW SLA-RC-2IN1 Series Solar Street Light is Engineered with safe low-voltage operation, the system requires zero utility wiring and operates completely off-grid with 0 electricity costs, ensuring compliance with international safety standards.
The SLA-RC-2IN1 series is rated IP65 for dust and moisture protection and operates across working temperatures from -20°C to +60°C with an expected lifespan of 50,000 hours and a Color Rendering Index (CRI) of Ra70.
Available in models ranging from 40W to 150W, the fixtures generate system luminous flux from 6,800 lumens up to 25,500 lumens across a selectable CCT range of 3000K to 6500K.
To optimize energy management and preserve battery capacity through extended period of overcast weather, the system uses a preset automated dimming profile:
- 4 hours at 100% brightness,
- 2 hours at 60%, and
- 6 hours at 40%.
This controlled power management profile guarantees up to 2 days of backup autonomy.
Paired with dedicated monocrystalline solar panels ranging from 120W to 270W, the PMW SLA-RC-2IN1 Series provides a cost-effective, durable lighting solution for large-scale outdoor infrastructure projects.
Product Detail
PMW SLA-RC-2IN1 Series
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Mono Solar Panel | Lithium Battery | CCT Range (K) | Dimensions LxWxH (mm) |
| 01.SLARC2IN1040.00 | SLA040 | 40W | 6,800 lm | 120W – 18V | 12.8V 60AH | 3000K – 6500K | 520 x 240 x 79 |
| 01.SLARC2IN1060.00 | SLA060 | 60W | 10,200 lm | 175W – 18V | 12.8V 90AH | 3000K – 6500K | 605 x 240 x 79 |
| 01.SLARC2IN1080.00 | SLA080 | 80W | 13,600 lm | 200W – 18V | 12.8V 120AH | 3000K – 6500K | 605 x 240 x 79 |
| 01.SLARC2IN1100.00 | SLA100 | 100W | 17,000 lm | 250W – 36V | 25.6V 75AH | 3000K – 6500K | 690 x 240 x 79 |
| 01.SLARC2IN1120.00 | SLA120 | 120W | 20,400 lm | 250W – 36V | 25.6V 90AH | 3000K – 6500K | 690 x 240 x 79 |
| 01.SLARC2IN1150.00 | SLA150 | 150W | 25,500 lm | 270W – 36V | 25.6V 120AH | 3000K – 6500K | 775 x 240 x 79 |
(Note: Operating profile across all models: 4 hrs at 100%, 2 hrs at 60%, and 6 hrs at 40% with 2 days autonomy backup.) – Refer Catalogue
Frequently Asked Questions (FAQ)
Q: What LED chip set is used in the PMW SLA-RC-2IN1 series?
A: The SLA-RC-2IN1 series utilizes high-performance Bridgelux LEDs integrated within a die-casting aluminum fixture housing.
Q: Is external electrical wiring required for installation?
A: No. The system features zero grid electricity consumption and a completely wire-free installation design operating on safe low-voltage power in compliance with international safety standards.
Q: What is the automated dimming profile and backup autonomy for this series?
A: The fixture is programmed for a 12-hour cycle: 4 hours at 100%, 2 hours at 60%, and 6 hours at 40% brightness, providing 2 days of backup autonomy.
Q: What IP rating and temperature operating range does this product support?
A: The SLA-RC-2IN1 series carries an IP65 protection rating and operates in temperatures ranging from -20°C to +60°C
