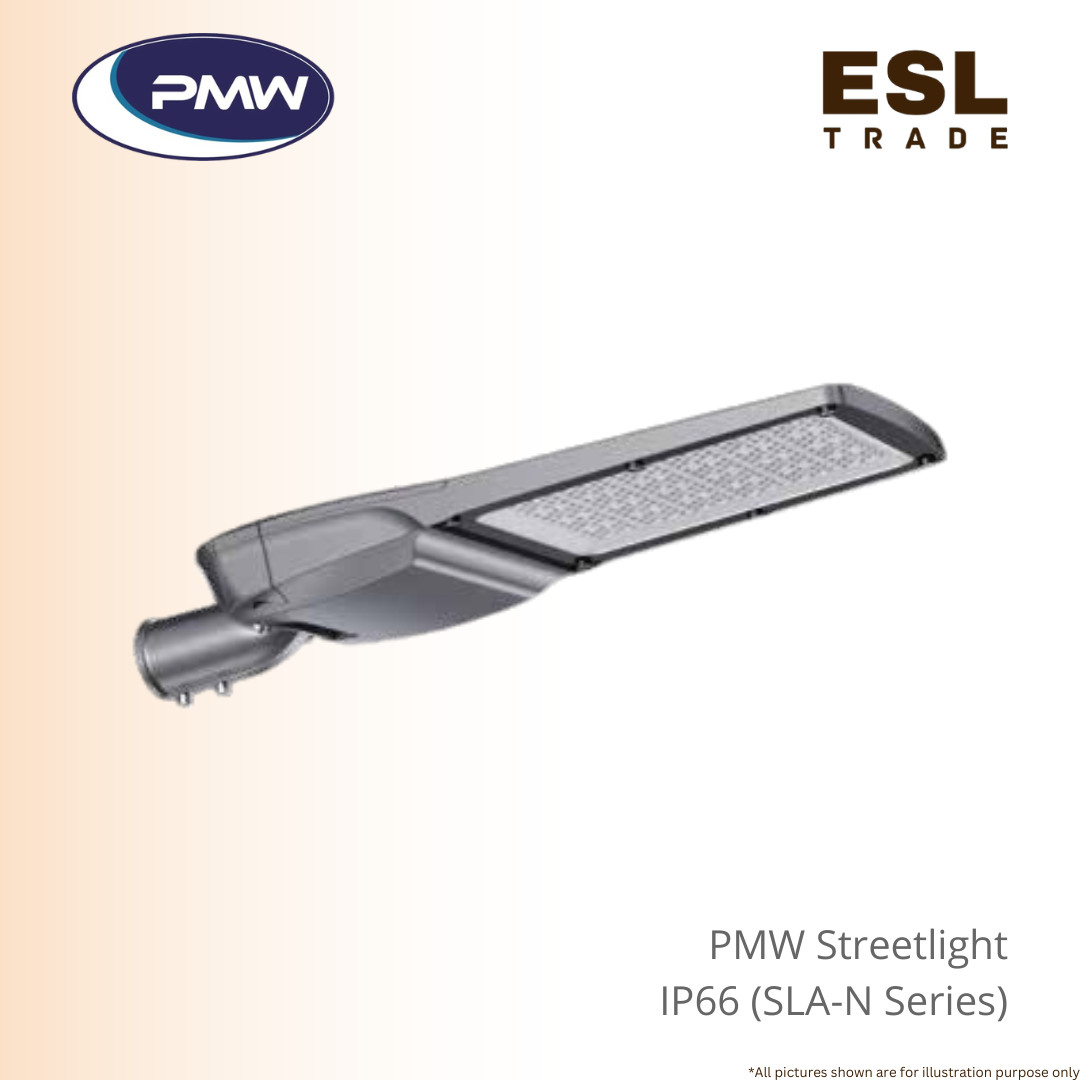

PMW SLA-N Series LED Street Light 70W-200W Tool-Free IP66 IK09 Excellent for Outdoor Parking & Walkway
The PMW SLA-N Series LED Street Light delivers high-performance illumination tailored for municipal streets, commercial parking areas, public walkways, and urban roadways.
Engineered with a heavy-duty, corrosion-resistant die-cast aluminum casing and finished with an electrostatic powder coating, this luminaire withstands demanding outdoor environments.
Protecting the internal optical components is a tempered safety glass lens combined with high-strength imported PC optical lenses.
The fixture carries an IP66 ingress protection rating and an IK09 mechanical impact resistance rating, operating effectively in ambient temperatures from -30°C to +50°C.
Designed to minimize maintenance downtime, the SLA-N Series features a tool-free latch mechanism and a spacious internal chamber for LED drivers, allowing quick field inspection and servicing.
The light engine provides a Color Rendering Index of Ra70 and maintains an operational LED lifespan of 50,000 hours.
The product line offers six distinct wattage options to suit different mounting heights and roadway illumination levels:
- 70W (10,355 lm),
- 100W (15,469 lm),
- 120W (18,562 lm),
- 150W (22,332 lm),
- 180W (27,213 lm), and
- 200W (29,286 lm).
Each wattage variant supports a broad, adaptable correlated color temperature (CCT) range from 2200K warm white to 6500K daylight.
By integrating high-strength optical lenses, robust die-cast aluminum construction, and tool-free accessibility, the PMW SLA-N Series provides a durable lighting solution for municipal and commercial outdoor projects
Product Detail
PMW SLA-N Series
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Color Temp Range (CCT) | Dimensions L x W x H (mm) | Ingress / Impact Rating | CRI / Lifespan | Working Temp Range | Body Material / Optics | Maintenance Feature |
| 01.SLAN070.00 | SLA070 | 70W | 10,355 lm | 2200K – 6500K | 575 x 204 x 118 | IP66 / IK09 | Ra70 / 50,000H | -30°C to +50°C | Corrosion Resistant Die-Cast Aluminum,
Tempered Glass, Imported PC Lens |
Tool-free operation,
large driver space |
| 01.SLAN100.00 | SLA100 | 100W | 15,469 lm | 2200K – 6500K | 575 x 204 x 118 | IP66 / IK09 | Ra70 / 50,000H | -30°C to +50°C | Corrosion Resistant Die-Cast Aluminum,
Tempered Glass, Imported PC Lens |
Tool-free operation,
large driver space |
| 01.SLAN120.00 | SLA120 | 120W | 18,562 lm | 2200K – 6500K | 675 x 240 x 108 | IP66 / IK09 | Ra70 / 50,000H | -30°C to +50°C | Corrosion Resistant Die-Cast Aluminum,
Tempered Glass, Imported PC Lens |
Tool-free operation,
large driver space |
| 01.SLAN150.00 | SLA150 | 150W | 22,332 lm | 2200K – 6500K | 675 x 240 x 108 | IP66 / IK09 | Ra70 / 50,000H | -30°C to +50°C | Corrosion Resistant Die-Cast Aluminum,
Tempered Glass, Imported PC Lens |
Tool-free operation,
large driver space |
| 01.SLAN180.00 | SLA180 | 180W | 27,213 lm | 2200K – 6500K | 795 x 306 x 119 | IP66 / IK09 | Ra70 / 50,000H | -30°C to +50°C | Corrosion Resistant Die-Cast Aluminum,
Tempered Glass, Imported PC Lens |
Tool-free operation,
large driver space |
| 01.SLAN200.00 | SLA200 | 200W | 29,286 lm | 2200K – 6500K | 795 x 306 x 119 | IP66 / IK09 | Ra70 / 50,000H | -30°C to +50°C | Corrosion Resistant Die-Cast Aluminum,
Tempered Glass, Imported PC Lens |
Tool-free operation,
large driver space |
Note: Finish: Electrostatic powder coating. Please refer to driver data sheet for circuit breaker/MCB looping details prior to installation
Frequently Asked Questions (FAQ)
Q: What materials are used in the construction and lens assembly of the SLA-N series?
A: The luminaire is constructed with a corrosion-resistant die-cast aluminum housing finished in electrostatic powder coating, protected by tempered safety glass and high-strength imported PC optical lenses.
Q: How does the SLA-N series simplify field maintenance?
A: It features a tool-free opening system and a large internal driver compartment, allowing maintenance technicians to inspect and service drivers without tools.
Q: What weather protection and impact resistance ratings does this series hold?
A: The fixture is rated IP66 for dust and water protection and IK09 for physical impact resistance, operating within a temperature range of -30°C to +50°C.
Q: What color temperature (CCT) options are available for the PMW SLA-N Series?
A: The series supports a full CCT selection range spanning from 2200K (warm amber/white) to 6500K (cool daylight).
