Description

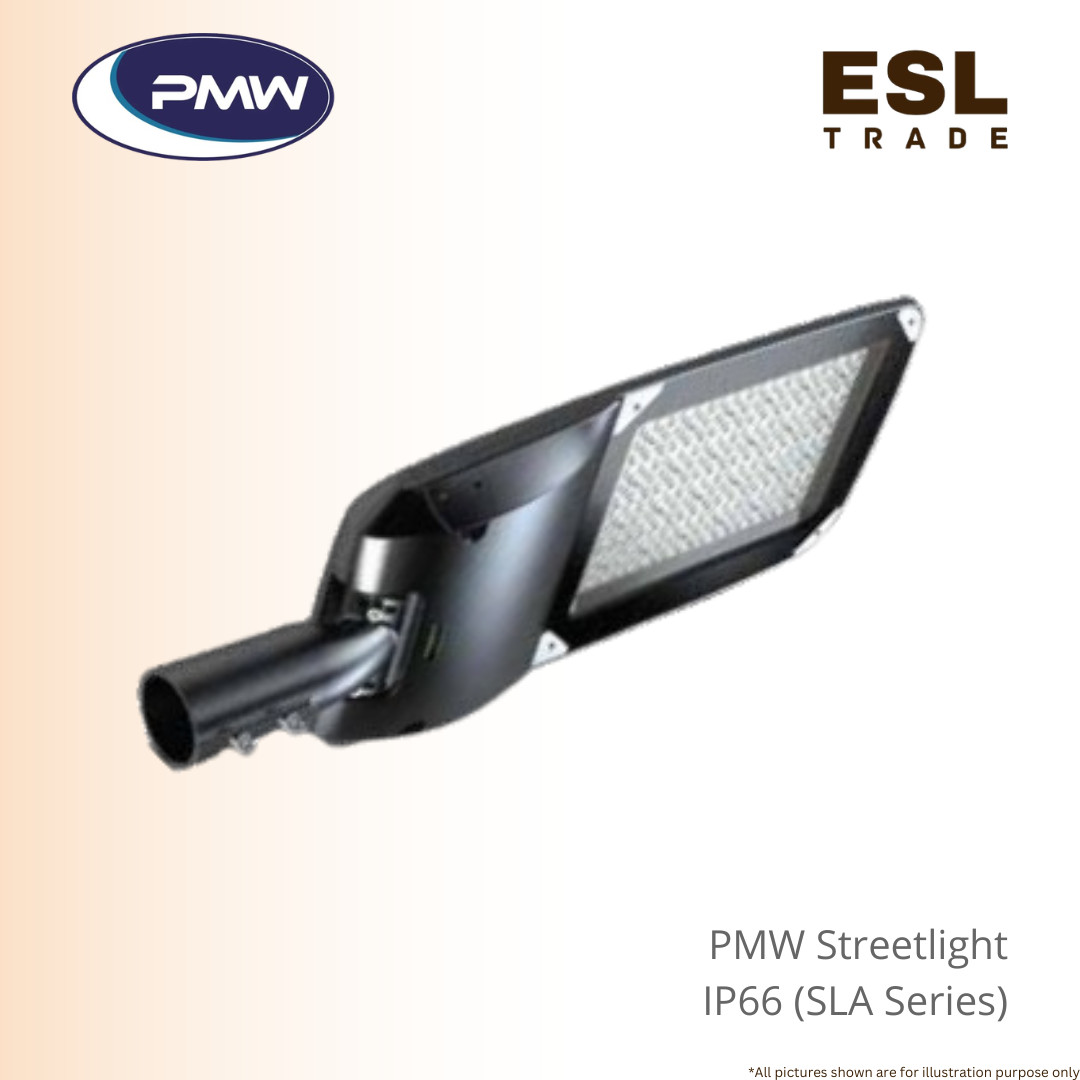

PMW SLA Series LED Street Light 70W-240W Tool-Free IP66 Excellent Heavy-Duty Outdoor Parking & Walkway
The PMW SLA Series LED Street Light delivers commercial-grade roadway and perimeter illumination engineered for municipal streets, parking areas, public walkways, and highway infrastructure.
Built with a heavy-duty cast aluminum housing finished in durable powder coat paint, the fixture features an aerodynamic, wind-proof streamlined shape that minimizes wind load resistance.
Manufactured in Malaysia with SIRIM QAS certification, the fixture holds an IP66 ingress protection rating against heavy rain and dust intrusion, alongside a rated operational LED lifespan of 50,000 hours.
Thermal management is directly integrated into the body engineering: the LED drivers are hard-mounted directly to the die-cast aluminum back casing, ensuring optimal heat sinking and extended component longevity.
To reduce operational downtime and maintenance expenses, the SLA Series features a tool-free housing access system and a spacious internal driver compartment, enabling straightforward field inspections and component servicing.
The luminaire operates on a standard voltage supply of 220VAC–240VAC at 50/60Hz.
The product line offers eight wattage configurations to meet varying pole spacing and mounting height requirements:
- 70W (10,355 lm),
- 80W (11,651 lm),
- 100W (15,469 lm),
- 120W (18,562 lm),
- 150W (22,332 lm),
- 180W (27,213 lm),
- 200W (29,286 lm), and
- 240W (35,389 lm).
Across all power options, users can select from three correlated color temperatures:
- 3000K warm white,
- 3500K neutral white, or
- 4000K cool white.
Mounting spigots accommodate standard 66mm diameter street light entry arms. Combining local SIRIM certification, tool-free access, and efficient thermal sinking, the PMW SLA Series provides a reliable outdoor lighting solution.
Product Detail
PMW SLA Series
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Color Temperature (CCT) | Dimensions L x W x H (mm) | Weight (kg) | Input Voltage | Spigot Dia. | IP Rating / Lifespan | Body Material / Feature | Certifications |
| 01.SLA070.00 | SLA070 | 70W | 10,355 lm | 3000K, 3500K, 4000K | 620 x 272 x 108 | 3.7 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Cast Aluminum / Tool-free | SIRIM QAS, Buatan Malaysia |
| 01.SLA080.00 | SLA080 | 80W | 11,651 lm | 3000K, 3500K, 4000K | 620 x 272 x 108 | 3.7 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Cast Aluminum / Tool-free | SIRIM QAS, Buatan Malaysia |
| 01.SLA100.00 | SLA100 | 100W | 15,469 lm | 3000K, 3500K, 4000K | 720 x 272 x 108 | 4.5 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Cast Aluminum / Tool-free | SIRIM QAS, Buatan Malaysia |
| 01.SLA120.00 | SLA120 | 120W | 18,562 lm | 3000K, 3500K, 4000K | 720 x 272 x 108 | 4.5 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Cast Aluminum / Tool-free | SIRIM QAS, Buatan Malaysia |
| 01.SLA150.00 | SLA150 | 150W | 22,332 lm | 3000K, 3500K, 4000K | 750 x 333 x 115 | 5.7 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Cast Aluminum / Tool-free | SIRIM QAS, Buatan Malaysia |
| 01.SLA180.00 | SLA180 | 180W | 27,213 lm | 3000K, 3500K, 4000K | 850 x 333 x 115 | 7.7 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Cast Aluminum / Tool-free | SIRIM QAS, Buatan Malaysia |
| 01.SLA200.00 | SLA200 | 200W | 29,286 lm | 3000K, 3500K, 4000K | 850 x 333 x 115 | 7.7 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Cast Aluminum / Tool-free | SIRIM QAS, Buatan Malaysia |
| 01.SLA240.00 | SLA240 | 240W | 35,389 lm | 3000K, 3500K, 4000K | 850 x 333 x 115 | 7.7 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Cast Aluminum / Tool-free | SIRIM QAS, Buatan Malaysia |
Note: Features streamline shape wind-proof design, powder coat finish, large internal driver chamber, and hard-mounted driver back casting for thermal heat sinking. Please refer to driver data sheet for circuit breaker/MCB looping details prior to installation
Frequently Asked Questions (FAQ)
Q: What maintenance features does the PMW SLA Series offer?
A: The fixture is built with a tool-free housing latch system and a large internal cavity, allowing maintenance personnel to access drivers and wiring without requiring specialized tools.
Q: How is thermal heat managed inside the luminaire?
A: The internal LED drivers are hard mounted directly to the die-cast aluminum back casing, providing direct contact heat sinking to dissipate heat away from critical electronics.
Q: What certifications and manufacturing standards apply to the SLA Series?
A: The PMW SLA Series is SIRIM QAS certified, made in Malaysia (Buatan Malaysia), and holds an IP66 ingress protection rating against dust and water.
Q: What pole arm entry size is compatible with this street light?
A: The luminaire entry spigot is designed to fit standard 66mm diameter mounting arms.
