Description

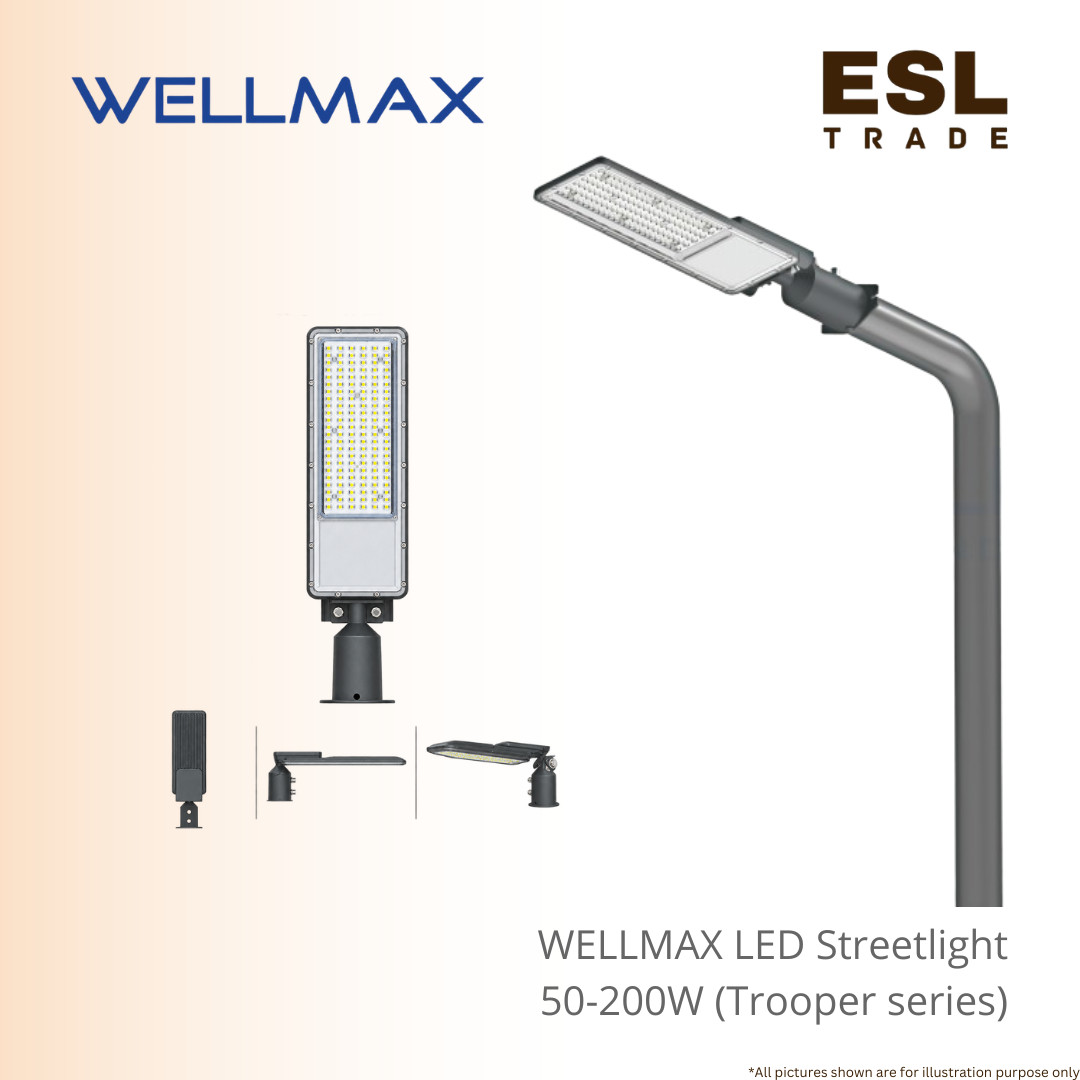

WELLMAX Trooper Series IP65 IK08 Multi-Application LED Street Light 120lm/W Pole & Wall Mount Reliable Exterior Roadway Luminaire
The WELLMAX Trooper Series LED Street Light delivers a versatile, heavy-duty exterior illumination solution engineered to replace legacy metal halide and high-pressure sodium street lamps.
Constructed with a high-strength body featuring IP65 ingress protection against driving rain and dust accumulation, as well as an IK08 impact-resistant rating, this fixture resists harsh weather and physical wear.
It is designed for multi-application deployment across urban roadways, industrial parks, building facades, canopies, and commercial parking areas.
Engineered with flexible mounting options, the Trooper series supports direct installation on standard lighting poles or flat vertical wall surfaces, simplifying retrofit upgrades for contractors.
The luminaire features an asymmetric 70° x 120° optical light distribution, which casts wide, uniform illumination along driving lanes and footpaths while minimizing unwanted light spill and visual glare.
Operating on universal 100–240V AC power supplies, the series achieves a luminous efficacy of 120 lm/W across a wide range of power options:
- 30W (3600 lm),
- 50W (6000 lm),
- 100W (12,000 lm),
- 150W (18,000 lm), and
- 200W (24,000 lm).
Supporting multiple color temperatures including Neutral White (4000K), Cool White (5000K), and Daylight (6500K) it provides crisp light rendition with a Color Rendering Index (CRI ≥ 80) and a high power factor (PF ≥ 0.9).
ated for 30,000 hours of continuous service life, the Trooper street light satisfies international quality standards with full CE, LVD, RoHS, ErP, and EMC certifications.
Product Details
| Item / Model Series | Wattage (W) | Input Voltage (V) | Luminous Flux (lm) | Luminous Efficacy | Power Factor (PF) | Fixture Dimensions (L×W×H) | CCT Options | Beam Angle | CRI | Ingress Protection | Impact Rating | Nominal Lifetime (Hrs) | Compliance |
| URO/TROOPER | 30W | 100–240V | 3600 lm | 120 lm/W | ≥ 0.9 | 445mm x 155mm x 49mm | 4000K / 5000K / 6500K | 70° x 120° | ≥ 80 | IP65 | IK08 | 30,000h | CE, LVD, RoHS,
ErP, EMC |
| URO/TROOPER | 50W | 100–240V | 6000 lm | 120 lm/W | ≥ 0.9 | 445mm x 155mm x 49mm | 4000K / 5000K / 6500K | 70° x 120° | ≥ 80 | IP65 | IK08 | 30,000h | CE, LVD, RoHS,
ErP, EMC |
| URO/TROOPER | 100W | 100–240V | 12,000 lm | 120 lm/W | ≥ 0.9 | 497mm x 181mm x 49mm | 4000K / 5000K / 6500K | 70° x 120° | ≥ 80 | IP65 | IK08 | 30,000h | CE, LVD, RoHS,
ErP, EMC |
| URO/TROOPER | 150W | 100–240V | 18,000 lm | 120 lm/W | ≥ 0.9 | 565mm x 181mm x 49mm | 4000K / 5000K / 6500K | 70° x 120° | ≥ 80 | IP65 | IK08 | 30,000h | CE, LVD, RoHS,
ErP, EMC |
| URO/TROOPER | 200W | 100–240V | 24,000 lm | 120 lm/W | ≥ 0.9 | 565mm x 181mm x 49mm | 4000K / 5000K / 6500K | 70° x 120° | ≥ 80 | IP65 | IK08 | 30,000h | CE, LVD, RoHS,
ErP, EMC |
Frequently Asked Questions (FAQ)
Q : How can the WELLMAX Trooper street light be installed?
A : The Trooper series features a versatile mounting structure that supports direct installation on standard outdoor lighting poles or vertical exterior wall surfaces.
Q : Is the Trooper street light suitable for outdoor weather conditions?
A : Yes, featuring an IP65 protection rating against water jet ingress and dust accumulation, along with IK08 impact resistance, the luminaire withstands rain and harsh outdoor environments.
Q : What light distribution angle does the Trooper light use?
A : It incorporates an asymmetric 70° x 120° roadway beam spread designed to cover wide roads, footpaths, and parking bays.
Q : What color temperature options are available?
A : The fixture comes in three color temperatures: 4000K (Neutral White), 5000K (Cool White), and 6500K (Daylight).
Q : What wattage range and light outputs does the Trooper series offer?
A : The series spans five wattages from 30W (3600lm) to 200W (24,000lm) operating at an energy efficiency of 120 lm/W
