AURORE Theben TBN SUL 181D 240V Analogue Timer Switch DIN Rail Panel Mount Reliable used for Commercial and Residential

Description

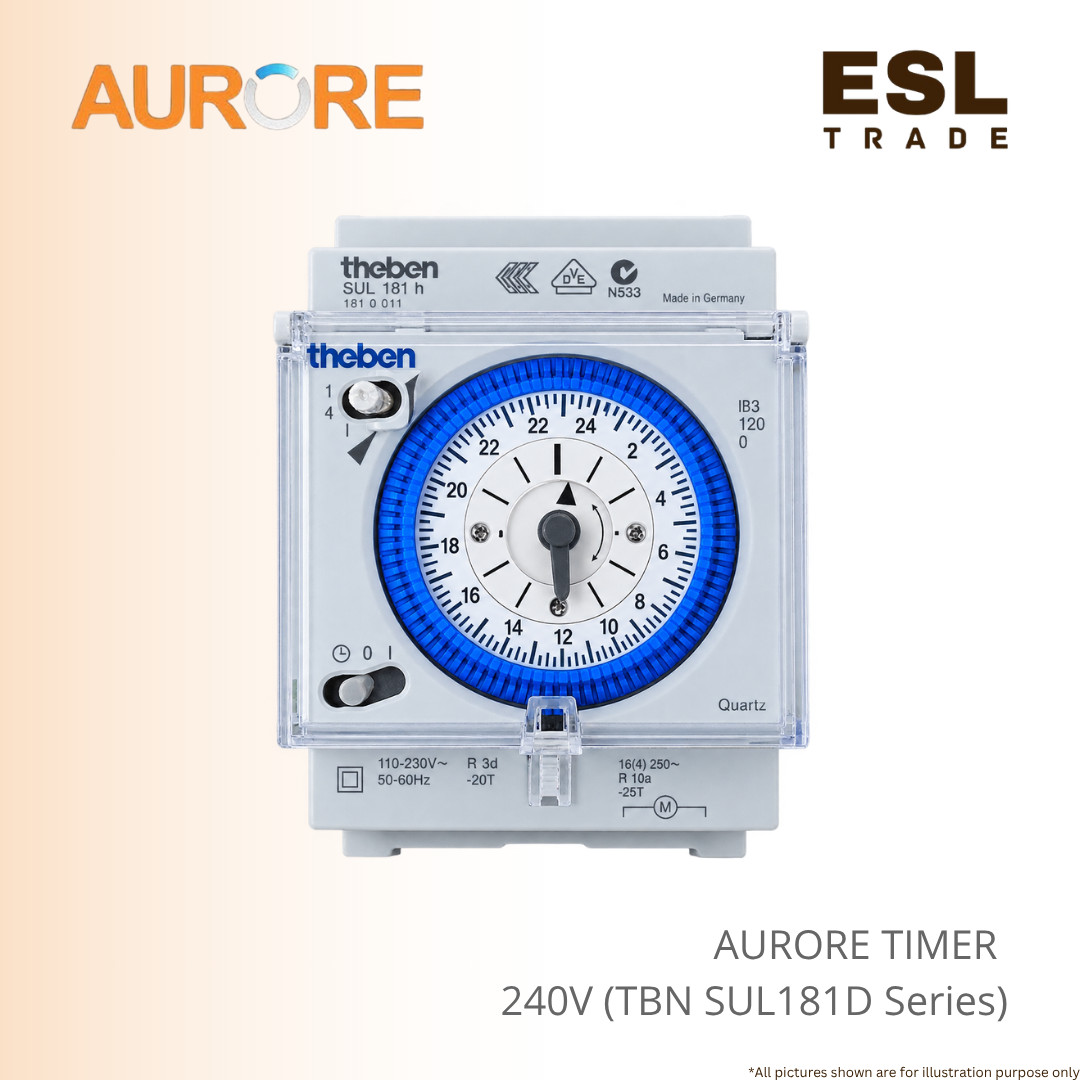

AURORE Theben TBN SUL 181D 240V Analogue Timer Switch DIN Rail Panel Mount Reliable used for Commercial and Residential

Automate your electrical circuits with high accuracy and consistency using the Theben TBN SUL 181D 240V Analogue Timer Switch.

Engineered by Theben, a global leader in time control technology, this mechanical 24-hour time switch provides automated scheduled switching for lighting systems, industrial machinery, ventilation fans, pump controls, and signage illumination.

Operating on a standard 240V AC supply voltage, the SUL 181D model features a prominent 24-hour analogue dial equipped with easy-to-set switching segments (switching pins).

This mechanical design allows electrical installers and facility managers to configure daily ON and OFF operational cycles with complete visual clarity.

Designed for standard 35mm DIN rail mounting, the timer unit seamlessly integrates into distribution boards, main switchboards, and electrical control panels.

The compact modular enclosure protects internal quartz movement components while saving valuable rail space inside panel enclosures.

Additionally, the unit features a clear front protective cover that guards the timer dial against dust, debris, and accidental setting adjustments.

The switch features a manual override switch on the front faceplate, enabling quick toggling between automatic scheduled operation and continuous ON/OFF states for testing or maintenance routines without disrupting preset dial schedules.

For electrical contractors, panel builders, and wholesale hardware stockists, the product comes packaged in master wholesale cartons containing 100 pieces per carton (1CTN = 100PCS).

Product Details : Theben TBN SUL 181D 240V Timer

Common Product FAQs

Q: How do you program switching times on the Theben SUL 181D timer?

A: Switching times are set manually on the 24-hour analogue dial by pushing the outer switching segments inward or outward to designate desired ON and OFF time blocks throughout the day.

Q: Is the Theben SUL 181D designed for DIN rail panel mounting?

A: Yes, the modular housing is specifically designed for quick snap-on mounting onto standard 35mm DIN rails inside electrical distribution boards and control panels.

Q: What operating voltage does this timer switch support?

A: The model shown is rated for standard 240V AC main supply input.

Q: Does it feature a manual override option for testing?

A: Yes, the front panel includes a manual override toggle switch that allows users to switch connected circuits ON or OFF manually without losing the programmed daily schedule.

Q: How many units are included in a wholesale carton?

A: The Theben TBN SUL 181D timer switch is packed in master cartons of 100 pieces per carton (1CTN = 100PCS).
