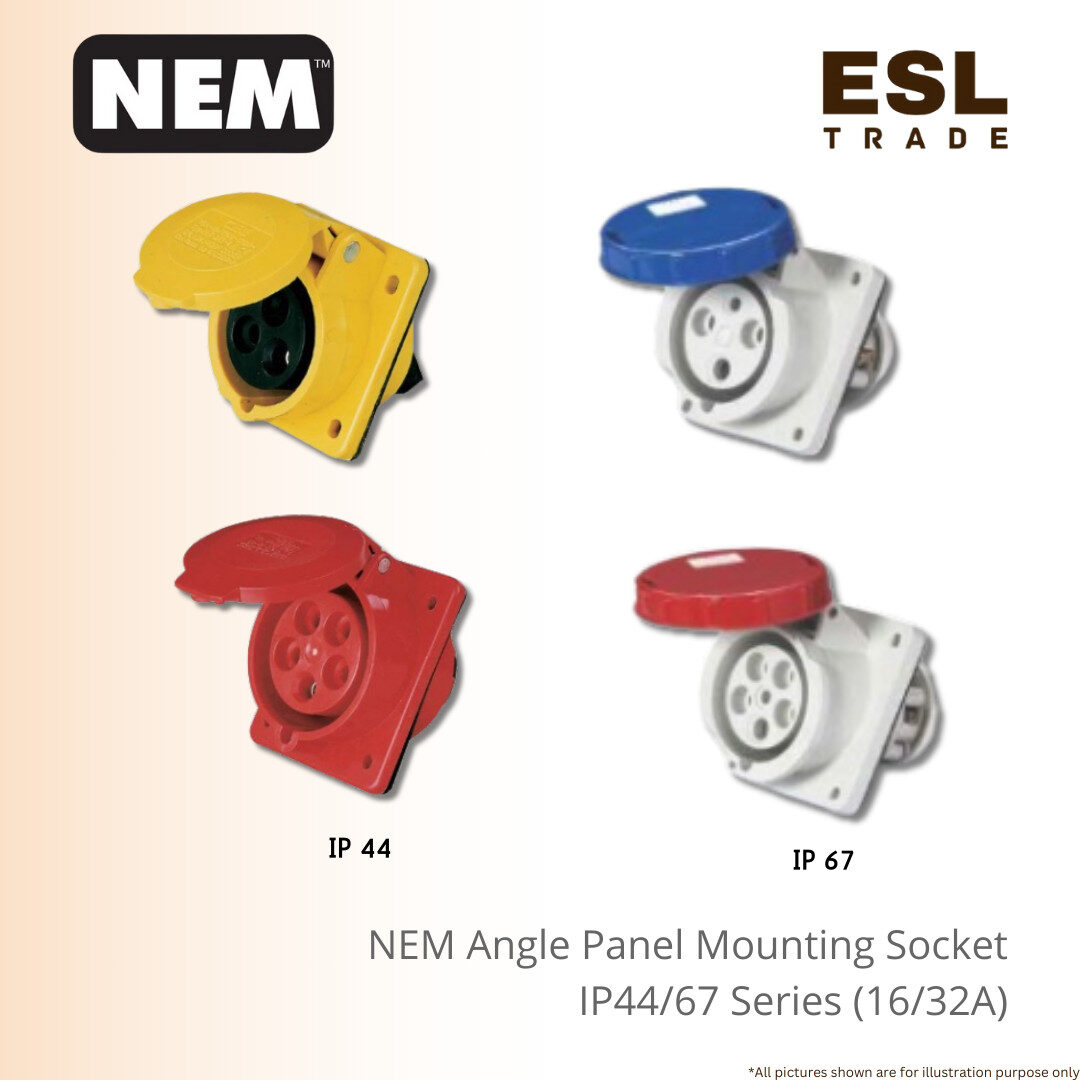

NEM Angle Panel Mounting Socket IP Rating IP44/ IP67 – Excellent Industrial Power Outlet
The NEM Angle Panel Mounting Socket is engineered to provide a secure and reliable electrical connection in the most challenging industrial and outdoor settings.
With its versatile range of IP44 (splash-proof) and IP67 (waterproof) ratings, this professional-grade socket can be used in a wide variety of environments, from workshops to outdoor construction sites.
Its angled design provides a convenient and space-saving solution for mounting on electrical panels and machinery.
This industrial panel mounting socket is available in configurations for 3, 4, and 5 poles with rated currents from 16A to a massive 125A, meeting a wide range of power requirements.
The robust construction and precise dimensions ensure a durable and safe connection that will withstand heavy-duty use.
The NEM Angle Panel Mounting Socket is an essential component for machinery, control panels, and any application where a reliable, durable, and secure power outlet is non-negotiable.
Product Specification

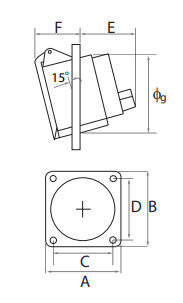

- IP Rating : IP 44
| Poles | Current (A) | Cat. No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | ϕg (mm) |
| 3 | 16A | FA313-4 | 62 | 68 | 47 | 48 | 36 | 37 | 55 |
| 3 | 16A | FA313-6 | 62 | 68 | 47 | 48 | 36 | 37 | 55 |
| 4 | 16A | FA314-6 | 76 | 86 | 60 | 61 | 47 | 37 | 64 |
| 5 | 16A | FA315-6 | 76 | 86 | 60 | 61 | 47 | 37 | 72 |
| 3 | 32A | FA323-4 | 80 | 96 | 60 | 70 | 42 | 43 | 75 |
| 3 | 32A | FA323-6 | 80 | 96 | 60 | 70 | 42 | 43 | 75 |
| 4 | 32A | FA324-6 | 80 | 96 | 60 | 70 | 42 | 42 | 75 |
| 5 | 32A | FA325-6 | 80 | 96 | 60 | 70 | 42 | 47 | 81 |

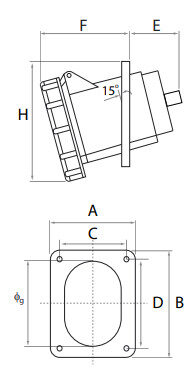

- IP Rating : IP 67
| Poles | Current (A) | Cat. No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | ϕg (mm) | H (mm) |
| 3 | 63A | FA3332-6 | 100 | 113 | 80 | 92 | 73 | 83 | 90 | 124 |
| 4 | 63A | FA3342-6 | 100 | 113 | 80 | 92 | 73 | 83 | 90 | 124 |
| 5 | 63A | FA3352-6 | 100 | 113 | 80 | 92 | 73 | 83 | 90 | 124 |
| 3 | 125A | FA3432-6 | 120 | 130 | 100 | 108 | 92 | 96 | 102 | 135 |
| 4 | 125A | FA3442-6 | 120 | 130 | 100 | 108 | 92 | 96 | 102 | 135 |
| 5 | 125A | FA3452-6 | 120 | 130 | 100 | 108 | 92 | 96 | 102 | 135 |
