Description

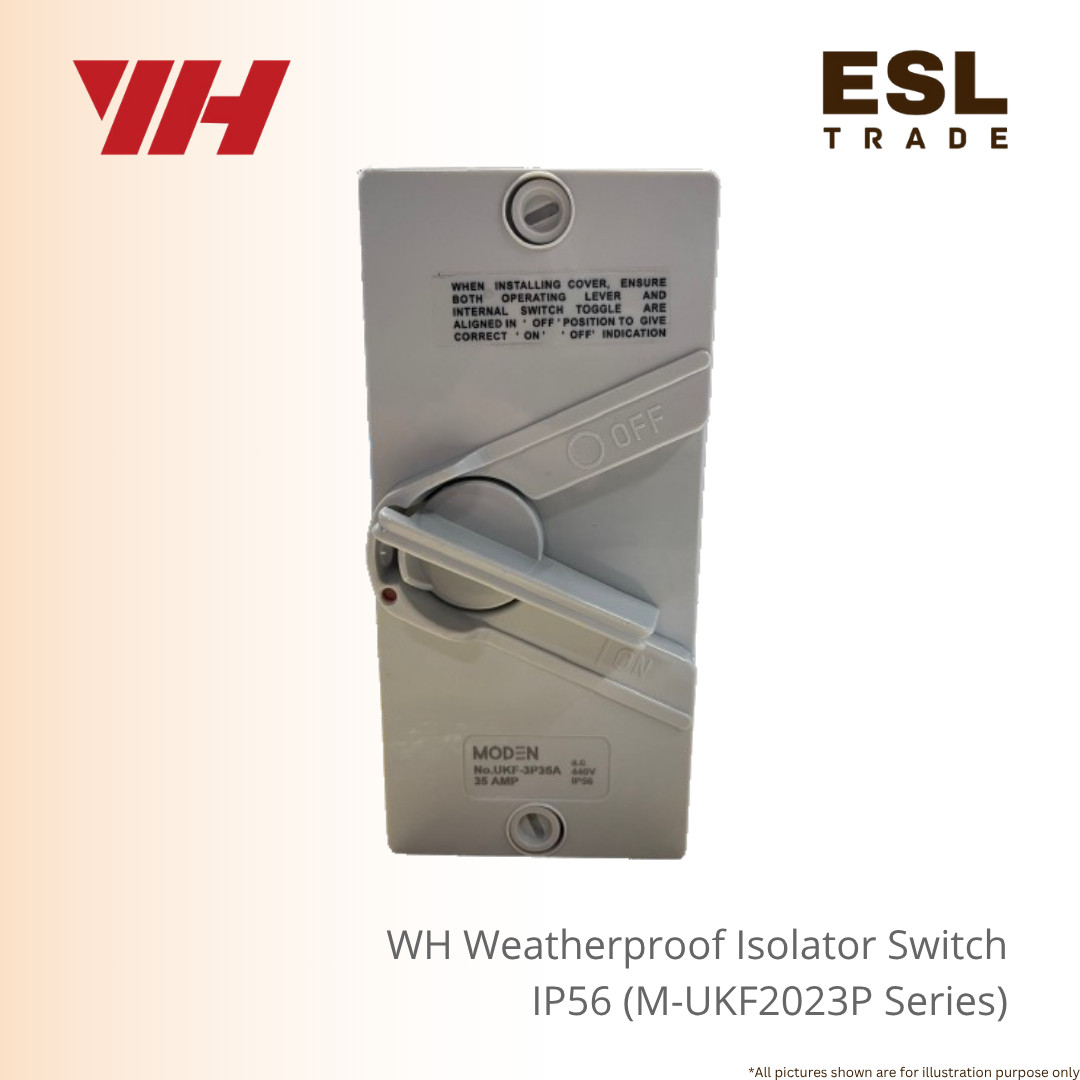

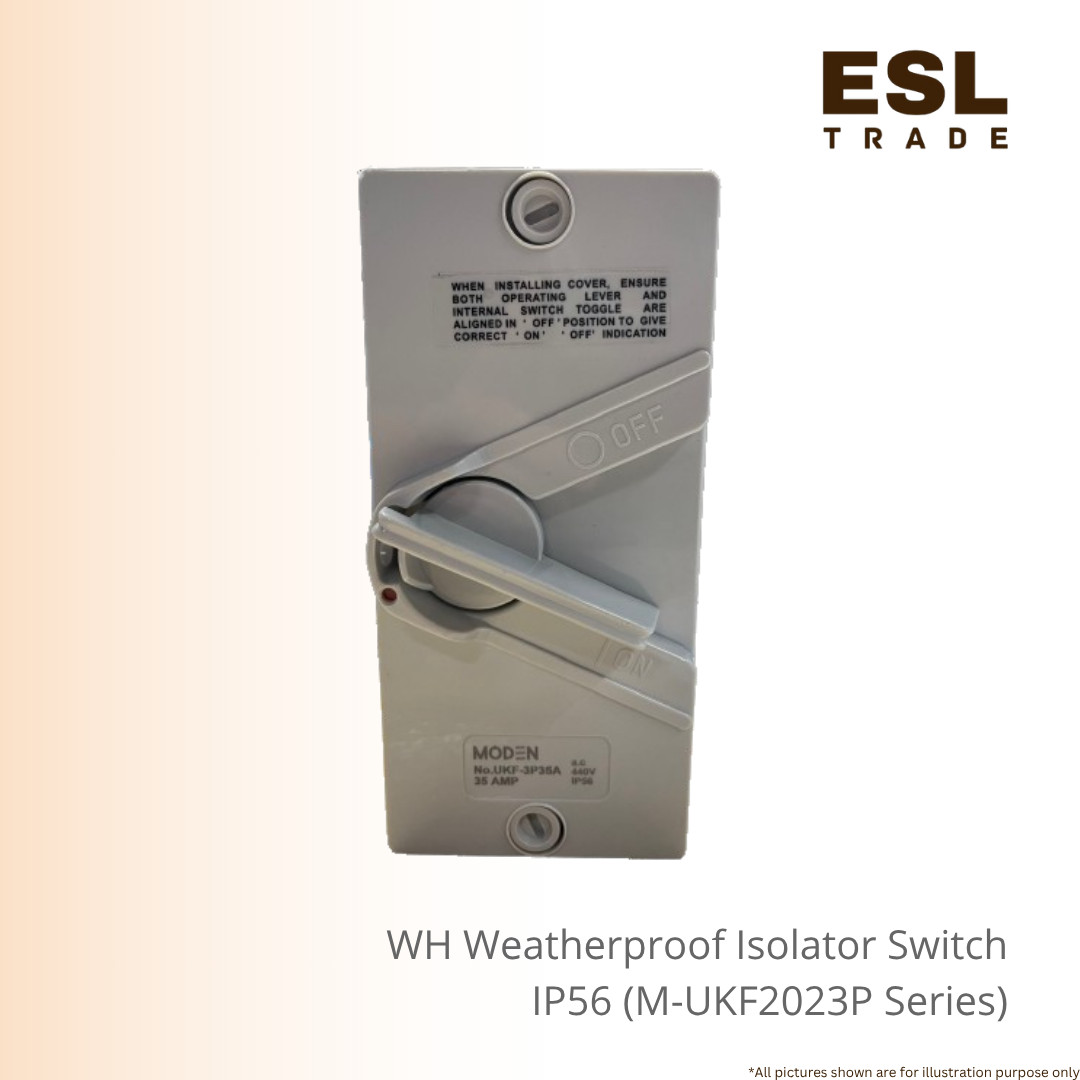

WIN MODDEN IP56 Weatherproof 3-Pole Isolator Switch (20A / 35A / 63A) Outdoor Power Disconnect Switch Reliable Heavy-Duty Protection
The MODDEN IP56 Weatherproof 3-Pole Isolator Switch Series provides outdoor power isolation and electrical disconnect safety across residential, commercial, and industrial facilities.
Built with an IP56-rated weatherproof enclosure, this surface-mounted isolating switch protects internal contacts against heavy water splashes, rainfall, and dust ingress, making it suitable for exposed exterior walls, plant rooms, and industrial sites.
Designed to control 3-phase machinery and heavy motor loads safely, the MODDEN M-UKF series features an rotary operating lever that clearly indicates the “ON” and “OFF” contact states.
For safe cover installation and maintenance, the front housing explicitly instructs that both the exterior operating lever and internal switch toggle must be aligned in the “OFF” position during cover assembly to guarantee correct indicator alignment.
The MODDEN IP56 3-Pole Isolator line is available in three current ratings to match various equipment loads:
-
MODDEN 20A 3-Pole Isolator (M-UKF203P): Designed for light-to-medium motor loads, residential air conditioning condensing units, water pumps, and small commercial exhaust fans.
-
MODDEN 35A 3-Pole Isolator (M-UKF353P): Ideal for larger multi-split air conditioning compressors, commercial refrigeration units, and workshop equipment.
-
MODDEN 63A 3-Pole Isolator (M-UKF633P): Built for heavy-duty industrial machinery, main commercial air handling units (AHU), distribution boards, and heavy electrical motor circuits.
Featuring a durable impact-resistant casing with top and bottom conduit entry knockouts, the MODDEN M-UKF series delivers safety, straightforward wiring access, and reliable circuit isolation performance in harsh environments
Product Detail
| Description | Order Code |
|
MODEN 20A 3 POLE ISOLATOR
|
M-UKF203P
|
|
MODEN 35A 3 POLE ISOLATOR
|
M-UKF353P
|
|
MODEN 63A 3 POLE ISOLATOR
|
M-UKF633P
|
Frequently Asked Questions (FAQ)
Q1: What does the IP56 rating on the MODDEN isolator switch mean?
A : An IP56 rating indicates that the unit is protected against harmful dust deposits and powerful water jets, making it suitable for exterior installations exposed to rain and weather elements.
Q2: What is the crucial step when installing or reassembling the front cover?
A : When installing the front cover, make sure both the outer operating lever and the internal switch toggle are aligned in the “OFF” position. This ensures the “ON” and “OFF” indicators function correctly on the outer cover.
Q3: Which amperage rating (20A, 35A, or 63A) should I select for my air conditioner?
-
20A (M-UKF203P): Suitable for standard residential and small commercial air conditioning compressor units.
-
35A (M-UKF353P): Recommended for larger multi-split air conditioning systems or medium commercial units.
-
63A (M-UKF633P): Ideal for heavy commercial air handling units, large industrial chillers, and high-power motor circuits.
Q4: Can this 3-pole isolator switch be used for 3-phase power setups?
A : Yes, the 3-pole configuration is designed to simultaneously isolate all three live phase conductors (L1, L2, L3) in 3-phase electrical installations.
Q5: What hardware materials are used for the outer casing?
A : It features a high-impact, UV-stabilized polycarbonate enclosure engineered to withstand direct sunlight exposure and harsh outdoor conditions.
