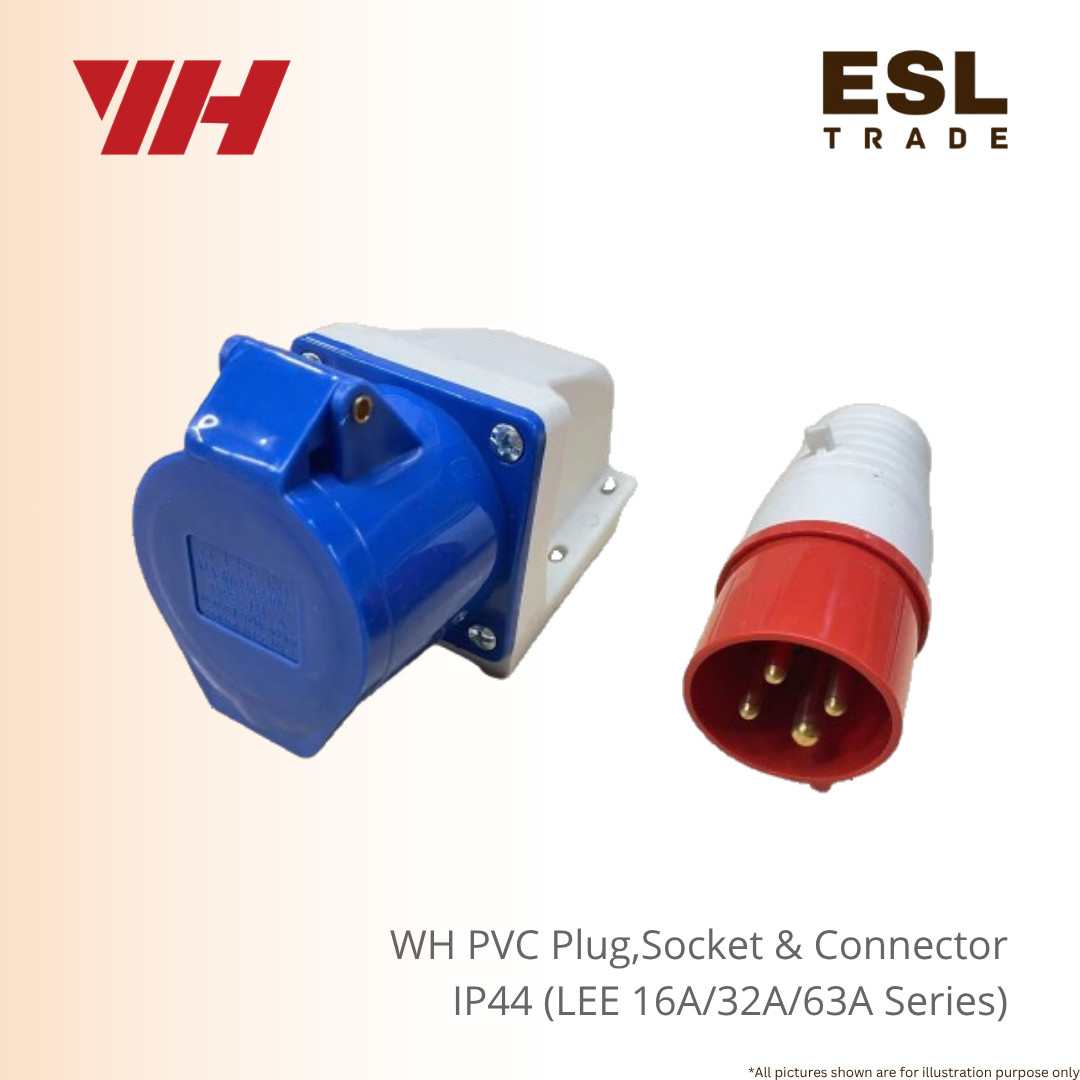

WH LEE Industrial PVC Plug, Wall Socket & Cable Connector IP44 Weatherproof Excellent for Heavy-Duty Power Distribution Premium Durability
The LEE Industrial PVC Plug, Wall Socket, and Cable Connector series provides a versatile, heavy-duty electrical connection solution engineered for safe power distribution across commercial, industrial, and outdoor site environments.
Built to comply with international CEE standard pin configurations, this series ensures reliable 3-phase and single-phase electrical connectivity across a broad range of currents and equipment power loads.
Constructed from high-impact, flame-retardant PVC and insulated engineering polymer, each component features IP44 splash-proof protection against splashing water from all directions and ingress of solid objects larger than 1 mm.
The wall sockets and inline connectors are equipped with spring-loaded protective flip covers to safeguard pin receptacles when disconnected, preventing dust accumulation, moisture ingress, and accidental physical contact.
Key structural and functional advantages of the LEE IP44 Industrial Plug & Socket series include:
-
IP44 Weatherproof Protection: Reliable protection against splashing water and dust intrusion for indoor workshops, factory floors, and sheltered outdoor construction sites.
-
Comprehensive Current & Pin Matrix: Offered in 16A, 32A, and 63A amperage ratings across 3-pin (2P+E), 4-pin (3P+E), and 5-pin (3P+N+E) configurations.
-
Impact-Resistant PVC Construction: Durable housing withstands mechanical stress, chemical exposure, and continuous industrial handling without cracking.
-
Secure Locking & Contact Integrity: Precision brass pin contacts ensure optimal electrical conductivity, low resistance, and stable mechanical retention during continuous heavy-duty operation.
Whether powering portable generators, welding units, industrial machinery, or temporary distribution boxes on site, the LEE IP44 Industrial series delivers exceptional safety and long-term operating durability.
Product Details :
| Description | Order Code |
|
16A 3 PIN PLUG
|
LEE-013
|
|
16A 4 PIN PLUG
|
LEE-014
|
|
16A 5 PIN PLUG
|
LEE-015
|
|
16A 3 PIN WALL SOCKET
|
LEE-113
|
|
16A 4 PIN WALL SOCKET
|
LEE-114
|
|
16A 5 PIN WALL SOCKET
|
LEE-115
|
|
16A 3 PIN CONNECTOR
|
LEE-213
|
|
16A 4 PIN CONNECTOR
|
LEE-214
|
|
16A 5 PIN CONNECTOR
|
LEE-215
|
|
32A 3 PIN PLUG
|
LEE-023
|
|
32A 4 PIN PLUG
|
LEE-024
|
|
32A 5 PIN PLUG
|
LEE-025
|
|
32A 3 PIN WALL SOCKET
|
LEE-123
|
|
32A 4 PIN WALL SOCKET
|
LEE-124
|
|
32A 5 PIN WALL SOCKET
|
LEE-125
|
|
32A 3 PIN CONNECTOR
|
LEE-223
|
|
32A 4 PIN CONNECTOR
|
LEE-224
|
|
32A 5 PIN CONNECTOR
|
LEE-225
|
|
63A 3 PIN PLUG
|
LEE-033
|
|
63A 4 PIN PLUG
|
LEE-034
|
|
63A 5 PIN PLUG
|
LEE-035
|
|
63A 3 PIN WALL SOCKET
|
LEE-133
|
|
63A 4 PIN WALL SOCKET
|
LEE-134
|
|
63A 5 PIN WALL SOCKET
|
LEE-135
|
|
63A 3 PIN CONNECTOR
|
LEE-233
|
|
63A 4 PIN CONNECTOR
|
LEE-234
|
|
63A 5 PIN CONNECTOR
|
LEE-235
|
Frequently Asked Questions (FAQ)
Q1: How do I understand the model numbering logic for LEE industrial plugs and sockets?
A : The LEE part numbers follow a structured pattern:
-
First 3 Digits: Component & Amperage type
-
LEE-0= Male Plug (01 = 16A, 02 = 32A, 03 = 63A) -
LEE-1= Wall Socket (11 = 16A, 12 = 32A, 13 = 63A) -
LEE-2= Cable Connector / Coupler (21 = 16A, 22 = 32A, 23 = 63A)
-
-
Last Digit: Number of Pins (
3= 3 Pin,4= 4 Pin,5= 5 Pin).(Example: LEE-124 = 32A 4 Pin Wall Socket).
Q2: What is the difference between a Wall Socket and a Cable Connector?
-
Wall Socket (LEE-1xx Series): Designed for rigid mounting onto walls, machines, or distribution panels.
-
Cable Connector / Coupler (LEE-2xx Series): Designed as a flexible trailing female socket attached to an extension cable end, mating with a male plug (LEE-0xx).
Q3: What voltage/phase systems do the 3-pin, 4-pin, and 5-pin configurations represent?
-
3-Pin (2P+E): Single-phase AC power (typically 220V–250V).
-
4-Pin (3P+E): 3-Phase power without neutral conductor (typically 380V–415V).
-
5-Pin (3P+N+E): 3-Phase power with dedicated neutral line (typically 220V/380V–240V/415V).
Q4: What does the IP44 protection rating mean for this product line?
A : IP44 rating guarantees that the housing prevents entry of solid objects larger than $1\text{ mm}$ and protects against water splashes coming from any direction. It is ideal for indoor industrial sites and sheltered outdoor locations.
Q5: Can a 16A male plug be inserted into a 32A wall socket?
A : No. Standard industrial plugs and sockets are dimensionally keyed according to their current rating (16A, 32A, 63A) to prevent accidental plugging of mismatched equipment, ensuring total system electrical safety.
