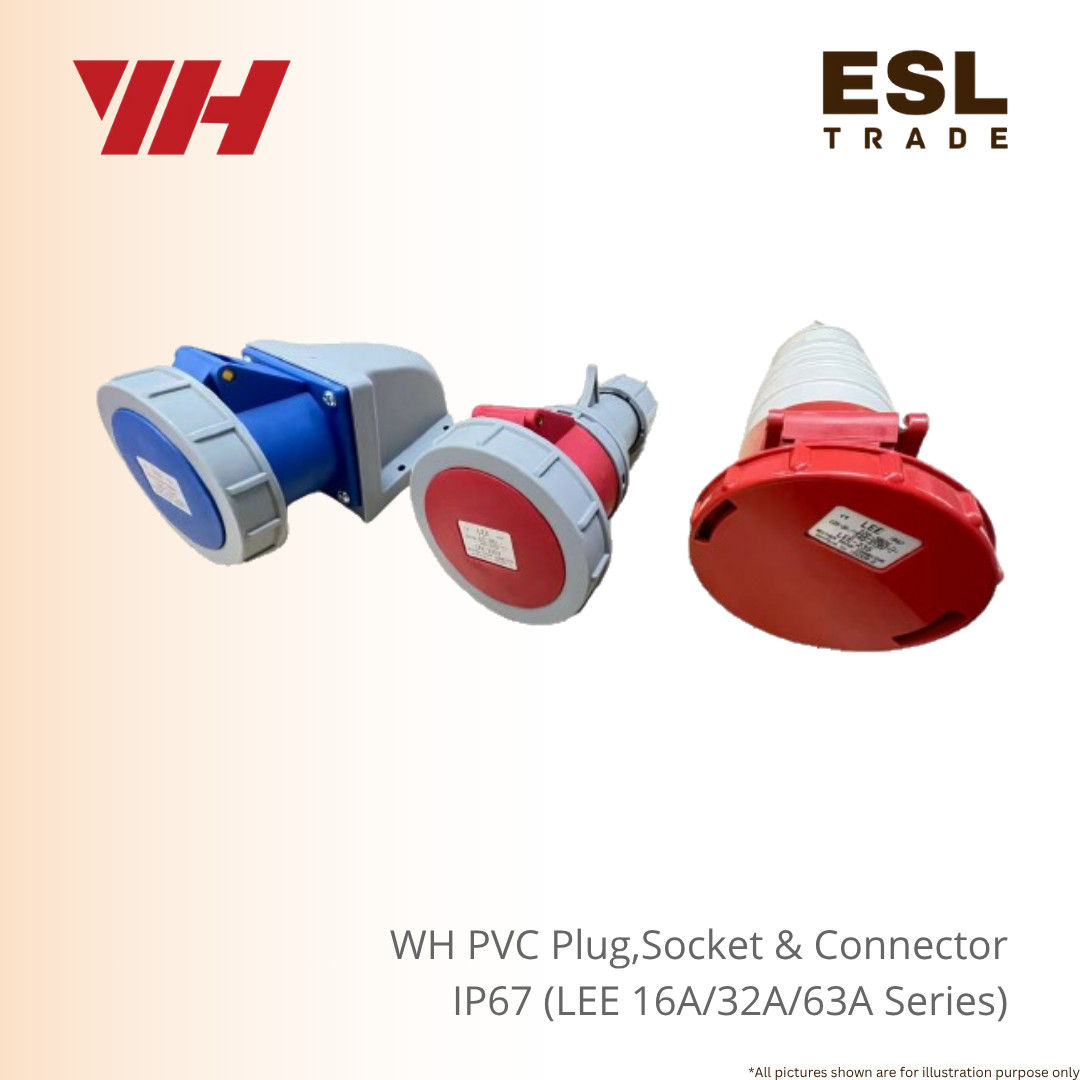

WH LEE Industrial PVC Plug, Wall Socket & Cable Connector IP67 Waterproof Excellent Heavy-Duty Power Distribution for Maximum Protection

Description

WH LEE Industrial PVC Plug, Wall Socket & Cable Connector IP67 Waterproof Excellent Heavy-Duty Power Distribution for Maximum Protection

The LEE Industrial PVC Plug, Wall Socket, and Cable Connector IP67 series provides a heavy-duty, completely waterproof electrical connection solution engineered for demanding environments and harsh outdoor power distribution applications.

Built to international CEE standards, this series ensures safe single-phase and 3-phase electrical power transmission across challenging industrial facilities, marine environments, and construction sites.

Constructed from high-impact, flame-retardant PVC and insulated engineering polymers, every unit achieves an IP67 protection rating.

Featuring a precision screw-locking protective ring and gasket-sealed hinged covers, the IP67 housing prevents dust accumulation and protects internal brass terminals against continuous water immersion up to specified depths.

This robust sealing makes the entire line ideal for outdoor sites exposed to heavy rain, washdown areas, and chemical environments.

Key structural and functional advantages of the LEE IP67 Industrial Plug & Socket series include:

• IP67 Waterproof & Dust-Tight Protection: Threaded locking collars and heavy-duty rubber seals safeguard internal contacts against water jet spray, heavy rain, and temporary water submersion.

• Comprehensive Range of Ratings & Poles: Available in 16A and 32A current capacities across 3-pin (2P+E), 4-pin (3P+E), and 5-pin (3P+N+E) configurations.

• Impact & Chemical Resistant PVC Housing: Durable thermoplastic outer shell resists physical shocks, UV degradation, and chemical splatters without cracking.

• High Conductivity Contacts: Solid brass pins ensure low contact resistance, minimal heat generation, and consistent power delivery during continuous operation.

Whether powering site generators, heavy machinery, outdoor events, or industrial pumps, the LEE IP67 series delivers reliable electrical safety and long-term operating performance.

Product Details :

Q1: How do I understand the model numbering logic for LEE IP67 industrial plugs and sockets?

A : The LEE IP67 part numbers follow a structured pattern ending with the digit 2 to denote the IP67 waterproof design:

• First 3 Digits: Component & Amperage type

  • LEE-0 = Male Plug (01 = 16A, 02 = 32A)

  • LEE-1 = Wall Socket (11 = 16A, 12 = 32A)

  • LEE-2 = Cable Connector / Coupler (21 = 16A, 22 = 32A)

• 4th Digit: Number of Pins (3 = 3 Pin, 4 = 4 Pin, 5 = 5 Pin)

• 5th Digit: Protection rating (2 = IP67 Waterproof).

  (Example: LEE-1242 = 32A 4 Pin Wall Socket, IP67 Waterproof).

Q2: What is the main difference between IP44 and IP67 industrial plugs/sockets?

• IP44 (Splash-proof): Protects against water splashes from any direction. Suitable for general indoor workshops and sheltered outdoor areas.

• IP67 (Waterproof): Completely dust-tight and equipped with a bayonet/threaded screw collar that seals the connection tightly against heavy rain, high-pressure water jets, and temporary water immersion.

Q3: What electrical systems do the 3-pin, 4-pin, and 5-pin configurations support?

• 3-Pin (2P+E): Single-phase AC power lines (220V–250V).

• 4-Pin (3P+E): 3-Phase power lines without neutral (380V–415V).

• 5-Pin (3P+N+E): 3-Phase power lines with neutral conductor (220V/380V–240V/415V).

Q4: Do IP67 plugs mate with IP44 sockets?

A : While pin layouts follow CEE standardization, IP67 male plugs require the matching IP67 female socket/connector to engage the threaded locking ring and establish the full waterproof seal. Mating IP67 with IP44 reduces the overall system protection rating to IP44.

Q5: What applications require IP67 plugs and sockets over standard IP44 units?

IP67 units are recommended for open construction sites exposed to heavy rain, food processing and washdown areas, outdoor stage and event lighting, shipyards, agricultural farms, and power connections near water hazards.
