PMW VEGAS 2L Series Twin T8 LED Bare Channel Light Fitting IP20 Excellent for Commercial Warehouse

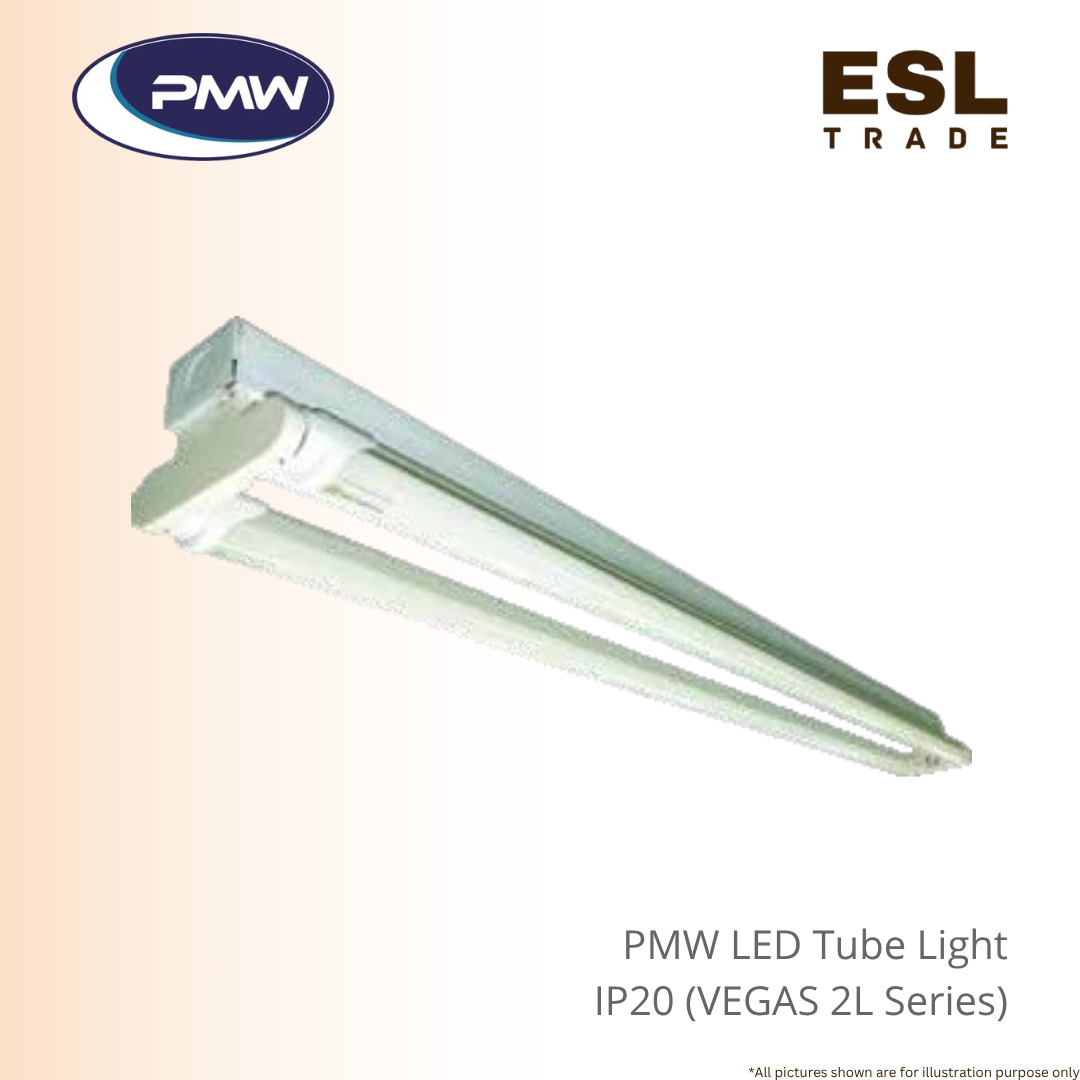

The PMW VEGAS 2L Series Twin T8 Bare Channel Luminaire is a compact dual-tube batten fitting engineered for commercial, industrial, and retail environments.
Built with a channel body and cover plate formed from cold-rolled steel, the fitting delivers structural rigidity for long-term daily operation.
Its profile features a 40mm base width with a 100mm lamp footprint width to host two linear T8 LED lamps in parallel.
Designed to accommodate direct-wire T8 LED tubes, the VEGAS 2L series provides operational flexibility by allowing users to select their preferred T8 LED tube specifications for lumen output, wattage, and color temperature.
The fixture carries an IP20 rating for indoor protection and comes manufactured with a “No Starter Hole” configuration, eliminating legacy starter cutouts to suit modern T8 LED direct wiring layouts.
The VEGAS 2L Series is available in two standard architectural length footprints:
-
610mm (2ft) Twin Model (VE220T8-M5): Compact 2ft frame with a 40mm housing width, 100mm lamp span width, and 75mm overall height.
-
1230mm (4ft) Twin Model (VE240T8-M5): Standard 4ft linear frame with a 40mm housing width, 100mm lamp span width, and 75mm overall height.
Engineered for surface mounting, the PMW VEGAS 2L Series offers a functional solution across retail outlets, corporate offices, storage warehouses, manufacturing plants, and product display areas.
Product Detail PMW VEGAS 2L
| Product Code | Model Code | Description | Tube Capacity | Length L (mm) | Base Width W (mm) | Lamp Span W1 (mm) | Height H (mm) | Protection Rating | Body Material | Applications |
| 01.VE220T8-M5.00 | VE220T8-M5 | VEGAS 2XTLED BARE CHANNEL METAL AND FITTING (NO STARTER HOLE) | 2 TUBE (2ft) | 610 mm | 40 mm | 100 mm | 75 mm | IP20 | Cold-Rolled Steel | Retail, Commercial,
Warehouse, Manufacturing, Display |
| 01.VE240T8-M5.00 | VE240T8-M5 | VEGAS 2XTLED BARE CHANNEL METAL AND FITTING (NO STARTER HOLE) | 2 TUBE (4ft) | 1230 mm | 40 mm | 100 mm | 75 mm | IP20 | Cold-Rolled Steel | Retail, Commercial,
Warehouse, Manufacturing, Display |
Note: Specifications and dimensions are subject to change without notice. Wattage and lumen outputs depend on the selected T8 LED tubes
Frequently Asked Questions (FAQ)
Q: Are LED tubes included with the VEGAS 2L bare channel fitting?
A: No, these fittings are supplied as bare metal channels designed to hold two standard T8 LED tubes. Wattage and total light output depend on the specific T8 LED lamps selected.
Q: What does the “NO STARTER HOLE” feature indicate?
A: “No Starter Hole” means the cold-rolled steel channel is produced without cutouts for traditional fluorescent starters, reflecting a modern design meant specifically for direct-wire LED T8 tubes.
Q: What material is used for the channel housing?
A: The channel body and matching cover plate are manufactured from cold-rolled sheet steel.
Q: What is the main difference between the VEGAS IL and VEGAS 2L series?
A: The VEGAS IL series is a single-tube (1xT8}) fitting with a 25mm tube span width, whereas the VEGAS 2L series is a double-tube (2xT8) fitting designed with a wider 100mm lamp span width. Both share the same 40mm base housing width and 75mm profile height.
