Description

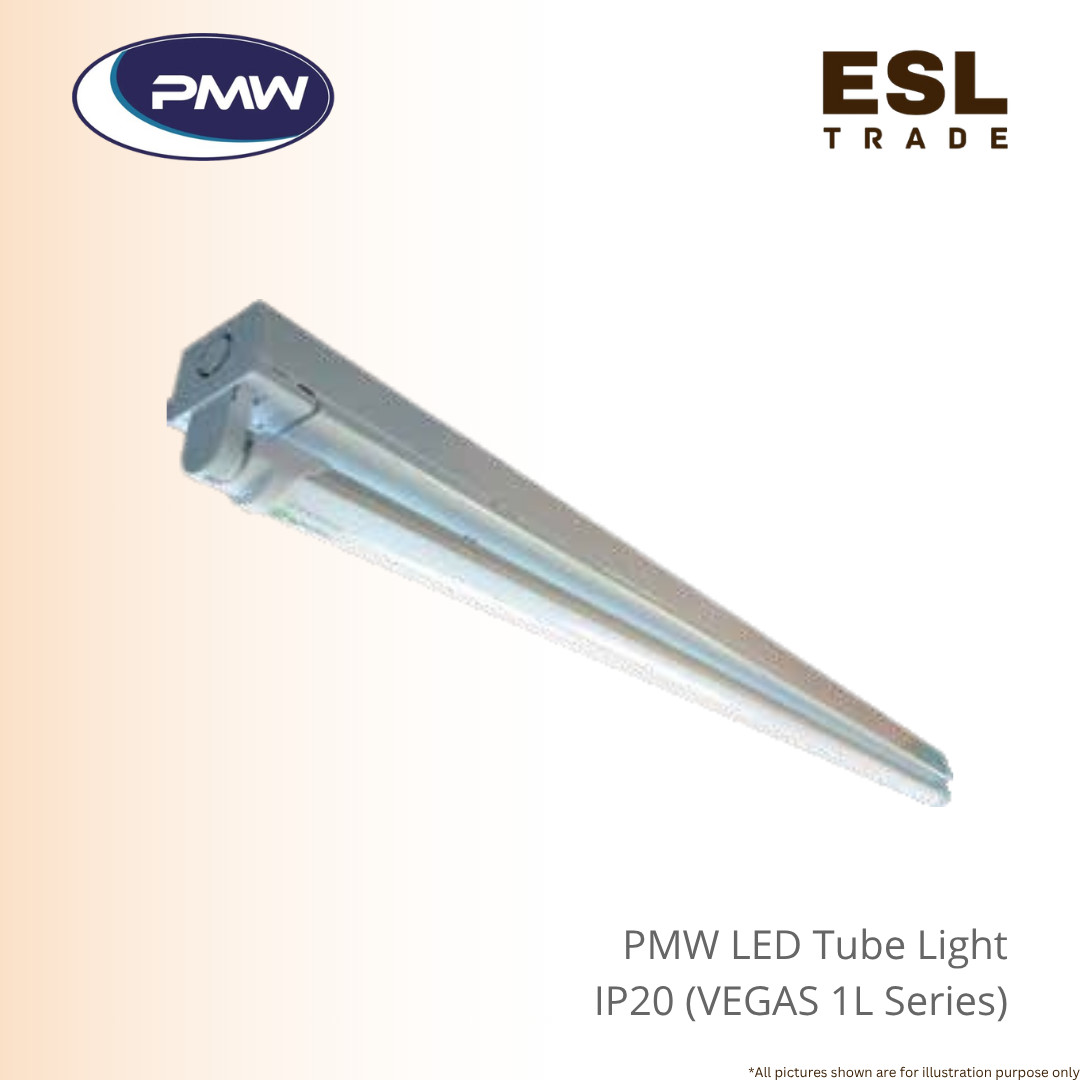

PMW VEGAS IL Series T8 LED Bare Channel Light Fitting IP20 Excellent for Commercial Warehouse Durable used
The PMW VEGAS IL Series T8 Bare Channel Luminaire is a compact linear light fitting designed for interior commercial, retail, and industrial illumination.
Constructed with a precision-formed channel housing and cover made from high-quality cold-rolled steel, this fitting delivers structural strength and durability for daily operational demands.
Its streamlined frame presents a clean profile that integrates smoothly into ceilings, storage areas, and display coves.
Engineered to operate with standard T8 LED tubes, the VEGAS IL series allows users to customize light output, color temperature, and energy efficiency according to their preferred T8 LED tube specifications.
Rated IP20 for indoor environments, the fixture features a “No Starter Hole” configuration, eliminating legacy starter cutouts to suit direct-wire T8 LED lamp installations.
The VEGAS IL Series offers single-tube configurations across two core architectural length footprints:
-
610mm (2ft) Model: Compact frame with a 40mm housing width and 75mm total height.
-
1230mm (4ft) Model: Elongated linear frame with a 40mm housing width and 75mm total height.
Designed for straightforward surface mounting, the PMW VEGAS IL Series serves as a practical lighting solution across retail stores, commercial offices, storage warehouses, manufacturing plants, and product display areas
Product Detail : PMW VEGAS IL
| Product Code | Model Code | Description | Tube Capacity | Length L (mm) | Housing Width W (mm) | Tube Diameter W1 (mm) | Height H (mm) | Protection Rating | Body Material | Applications |
| 01.VE120T8-M5.00 | VE120T8-M5 | VEGAS 1XTLED BARE CHANNEL METAL AND FITTING (NO STARTER HOLE) | 1 TUBE (2ft) | 610 mm | 40 mm | 25 mm | 75 mm | IP20 | Cold-Rolled Steel | Retail, Commercial,
Warehouse, Manufacturing, Display |
| 01.VE140T8-M5.00 | VE140T8-M5 | VEGAS 1XTLED BARE CHANNEL METAL AND FITTING (NO STARTER HOLE) | 1 TUBE (4ft) | 1230 mm | 40 mm | 25 mm | 75 mm | IP20 | Cold-Rolled Steel | Retail, Commercial,
Warehouse, Manufacturing, Display |
Note: Specifications and dimensions are subject to change without notice. Wattage and lumen outputs depend on the selected T8 LED tubes.
Frequently Asked Questions (FAQ)
Q: Are T8 LED tubes included with the VEGAS IL bare channel fitting?
A: No, the fitting is supplied as an empty metal bare channel housing designed to accept standard T8 LED tubes. Wattage and light output are determined by the T8 LED tubes selected.
Q: What does “NO STARTER HOLE” mean for this model?
A: “No Starter Hole” signifies that the housing is manufactured without cutouts for legacy fluorescent starters, making it ideal for direct-wire T8 LED lamps.
Q: What construction materials are used for the VEGAS IL channel?
A: The body channel and cover plate are formed from high-quality cold-rolled steel for structural rigidity.
Q: What are the primary differences between the two available models?
A: Both models share the same 40mm housing width and 75mm height profile. The primary difference is the overall length: the VE120T8-M5 measures 610mm (2ft) while the VE140T8-M5 measures 1230mm (4ft).
