Description

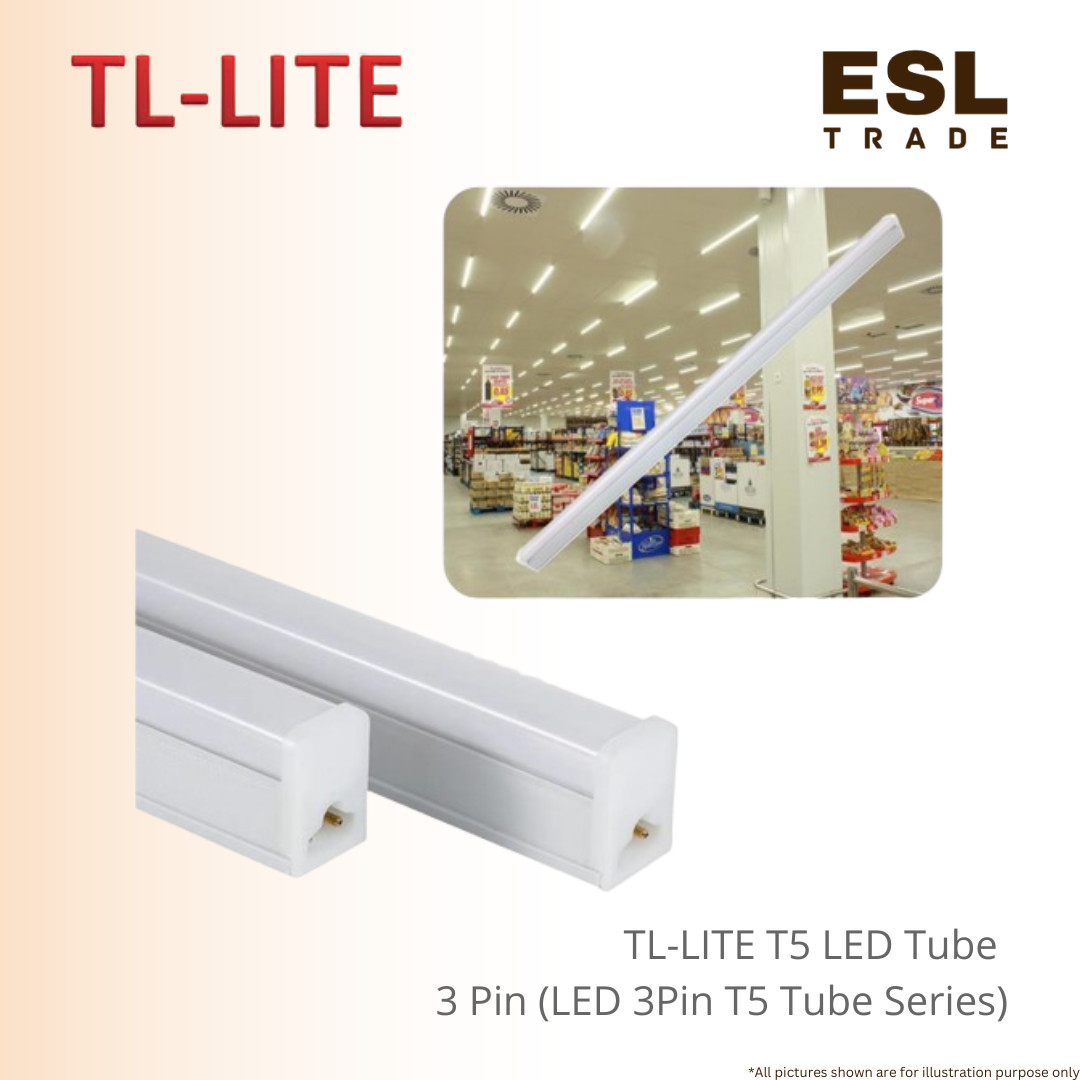

TL-LITE 3-Pin LED T5 Tube Multi-Connect Light Linkable Ceiling Cove Lighting (5W / 10W / 15W / 20W) Excellent for Residential & Commercial Setting
Achieve flawless, continuous lighting layers across any residential or commercial setting with the professional TL-LITE LED 3-Pin T5 Tube Multi-Connect series.
Masterfully designed for high-end interior applications, this ultra-versatile integrated batten system is the ultimate choice for plaster ceiling cove troughs, under-cabinet kitchen task zones, retail display shelving, wardrobe backlighting, and supermarkets.
Traditional batten lights often leave awkward dark patches at the connection points; however, this advanced Multi-Connect system allows you to joint up to 15 sets end-to-end, creating a perfectly continuous, shadow-free line of crisp light that beautifully accentuates modern architectural elements.
The collection provides absolute project flexibility by offering four tailored length and power options to suit small alcoves or expansive commercial corridors alike:
- choose from the compact 5W (300mm),
- standard 10W (600mm),
- intermediate 15W (900mm), or
- the high-output 20W (1200mm) model.
Engineered to boost brightness while reducing electricity bills, these highly efficient tubes deliver strong, clear luminous performance ranging from 400 lumens up to 1800 lumens.
Operating smoothly on standard 220-240V power grids with a reliable 0.5 Power Factor (PF), these plug-and-play fittings feature built-in internal drivers that completely eliminate the need for external ballasts.
To satisfy any design palette, the series is available in standard color temperatures 6500K Daylight, 4000K Cool White, and 3000K Warm White as well as dynamic, vibrant decorative options including Red, Blue, and Green.
Elevate your space with the reliability and seamless aesthetic of the TL-LITE multi-connect T5 range.
Product Details :
| Specification | 5W Model | 10W Model | 15W Model | 20W Model |
| Brand | TL-LITE (TL Electric & Lighting) | TL-LITE | TL-LITE | TL-LITE |
| Product Type | LED 3-Pin T5 Tube (Multi Connect) | LED 3-Pin T5 Tube | LED 3-Pin T5 Tube | LED 3-Pin T5 Tube |
| Connectivity | Can Joint Up to 15 Sets | Can Joint Up to 15 Sets | Can Joint Up to 15 Sets | Can Joint Up to 15 Sets |
| Power Consumption | 5W | 10W | 15W | 20W |
| Length / Size | 300mm (1 Foot approx.) | 600mm (2 Feet approx.) | 900mm (3 Feet approx.) | 1200mm (4 Feet approx.) |
| Luminous Flux | 400 LM | 960 LM | 1450 LM | 1800 LM |
| Available CCT / Colors | 6500K / 4000K / 3000K / Red / Blue / Green | 6500K / 4000K / 3000K / Red / Blue / Green | 6500K / 4000K / 3000K / Red / Blue / Green | 6500K / 4000K / 3000K / Red / Blue / Green |
| Input Voltage | AC 220 – 240V | AC 220 – 240V | AC 220 – 240V | AC 220 – 240V |
| Power Factor (PF) | PF 0.5 | PF 0.5 | PF 0.5 | PF 0.5 |
| Application | Cove Troughs, Under Cabinets, Retail Shelves | Supermarkets, Plaster Ceilings, Display Trays | Kitchen Cabinets, Showrooms, Display cases | Large Cove Trays, Commercial Valances |
| Standard Carton Qty | 50 PCS | 50 PCS | 50 PCS | 50 PCS |
