Description

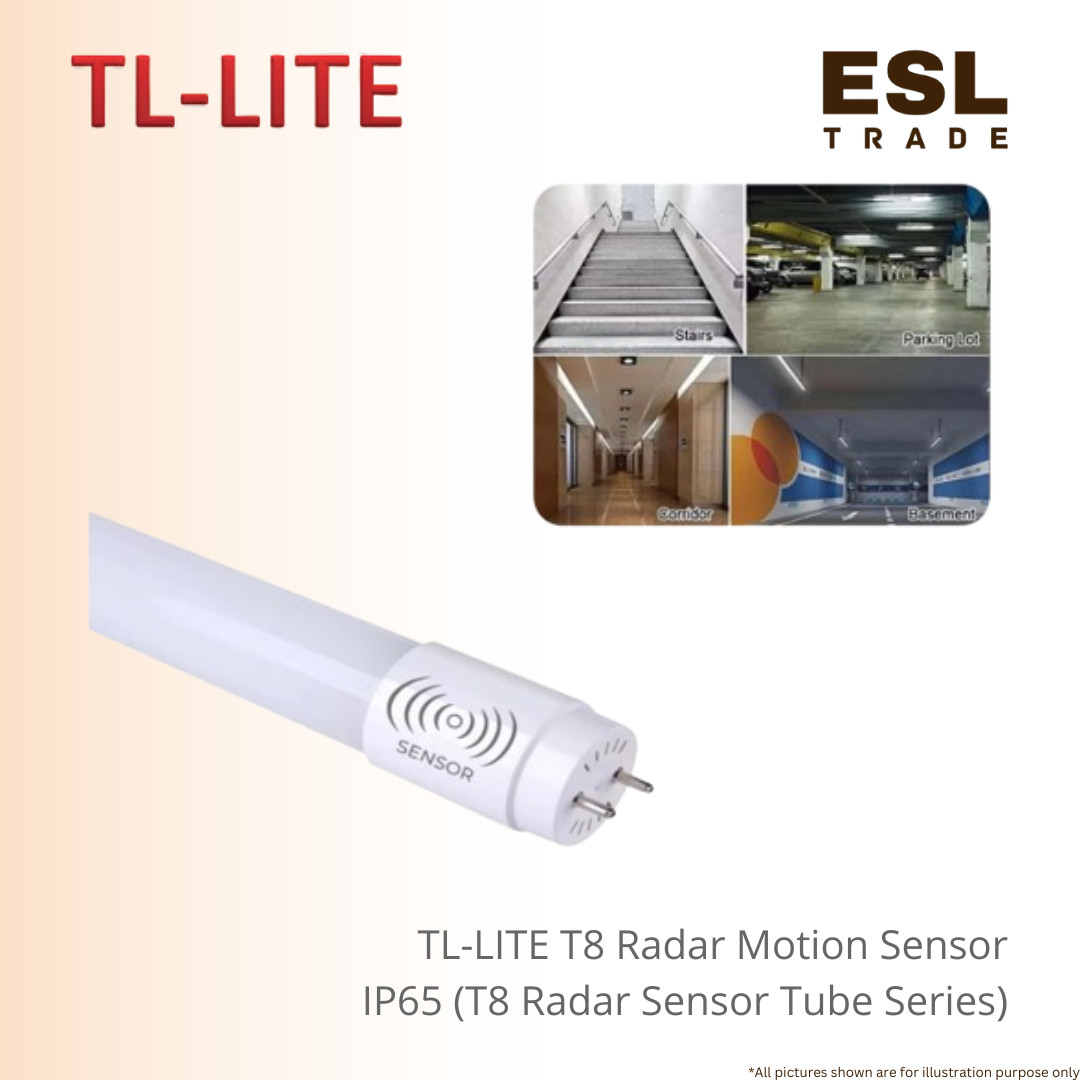

TL-LITE T8 Radar Motion Sensor LED Tube 9W 600mm / 20W 1200mm Excellent Smart Energy Saving Automated Parking & Corridor Batten Light
Drastically cut operational overhead and modernize your commercial facility infrastructure with the intelligent TL-LITE T8 Radar Motion Sensor LED Tube series.
Specially engineered for high-volume public zones characterized by intermittent pedestrian or vehicular traffic, this highly advanced smart lighting solution with Motion Sensor is the perfect upgrade for underground parking lots, industrial warehouses, apartment corridors, stairwells, basements, and commercial bathrooms.
Equipped with an integrated, high-frequency radar sensor, the fixture automatically shifts to a brilliant 100% full brightness the moment motion is detected, ensuring immediate visual clarity and maximum occupant safety.
The primary advantage of this smart fixture lies in its exceptional power management. After an area remains clear for 0 to 120 seconds, the tube automatically scales down into a highly efficient energy-saving standby mode.
During this dim state, it consumes an ultra-low 2.5W to 3W, providing a continuous 10% to 30% ambient glow to maintain general security surveillance rather than turning completely dark.
This brilliant automation cuts down unnecessary electrical drag, making it highly preferred by facility managers running round-the-clock operations.
Built to deliver a massive 270° beam angle, the fixture blankets open floor grids evenly to eliminate dangerous shadows.
The collection offers flexible options to match varying ceiling heights and layouts:
- a compact 9W (600mm) model pushing 900 lumens and
- a heavy-duty 20W (1200mm) version delivering 1800 lumens.
Running seamlessly on an AC 220-265V input voltage with a solid power factor of PF 0.6, this highly reliable series boasts an impressive operational lifespan of 25,000 hours, ensuring years of maintenance-free automation.
Product Details
| Specification | 9W Model Details | 20W Model Details |
| Brand | TL-LITE (TL Electric & Lighting) | TL-LITE (TL Electric & Lighting) |
| Product Type | Radar Motion Sensor T8 LED Tube | Radar Motion Sensor T8 LED Tube |
| Power Consumption (Full) | 9W | 20W |
| Standby Power Consumption | 2.5W – 3W (Energy-Saving State) | 2.5W – 3W (Energy-Saving State) |
| Length / Dimension | 600mm (2 Feet) | 1200mm (4 Feet) |
| Luminous Flux (Lumen) | 900 LM | 1800 LM |
| Color Temperature (CCT) | 6500K / 4000K / 3000K | 6500K / 4000K / 3000K |
| Beam Angle | 270° Wide Angle | 270° Wide Angle |
| Power Factor (PF) | PF 0.6 | PF 0.6 |
| Rated Operational Hours | 25,000 Hours | 25,000 Hours |
| Input Voltage | AC 220 – 265V | AC 220 – 265V |
| Sensor Delay Time | 0 – 120 Seconds (Auto Shut-Off/Dim) | 0 – 120 Seconds (Auto Shut-Off/Dim) |
| Standby Brightness Level | 10% – 30% Glow when people leave | 10% – 30% Glow when people leave |
| Standard Box Qty | 30 PCS | 30 PCS |
| Ideal Applications | Stairs, Bathrooms, Narrow Corridors | Underground Parking Lots, Warehouses, Basements |
