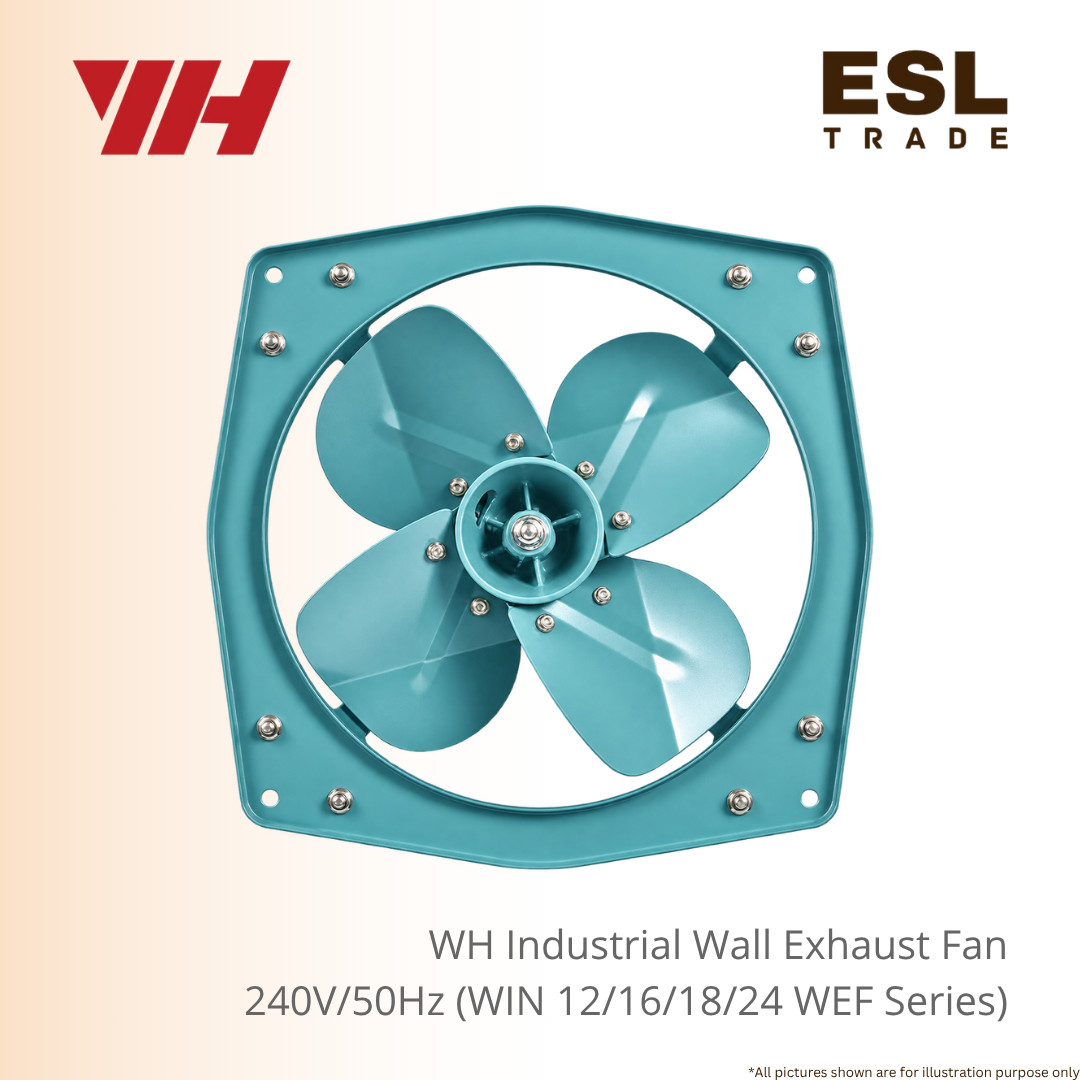

WIN Heavy Duty Industrial Wall Exhaust Fan with High Airflow Ventilation Excellent for Commercial & Workshop Use Superior Quality
The WIN Industrial Wall Exhaust Fan series (WIN-WEF) delivers powerful air extraction and ventilation engineered specifically for commercial, industrial, and workshop environments.
Available in four distinct sizing configurations 300mm (12″), 400mm (16″), 450mm (18″), and 600mm (24″) this versatile exhaust fan line caters to various room dimensions and airflow requirements.
Operating on a standard 240V/50Hz power supply, each unit is built with a heavy-duty metal frame and four robust fan blades designed to move high volumes of air efficiently.
Performance specs across the lineup balance motor efficiency with strong extraction power.
The 12″ model draws 200W to deliver 32m³/Min airflow at 1350 RPM with a noise level of 60 dB(A).
The 16″ model provides 83m³/Min airflow while pulling 120W at 1350 RPM with a quiet 56 dB(A) acoustic profile.
For larger spaces, the 18″ variant pulls 300W at 1350 RPM to discharge 108m³/Min at 65 dB(A), while the heavy-duty 24″ flagship model operates at a lower 900 RPM speed with a 500W motor to push a massive 160m³/Min air volume.
Designed for long-term wall-mounted installation, unit net weights range from 8 kg for the 16″ model up to 28 kg for the heavy-duty 24″ frame.
Every unit in the WIN WEF series comes backed by a 1-year manufacturer warranty, offering dependable daily operation for factories, warehouses, commercial kitchens, and agricultural facilities.
Product Details :
| Product code | Size | Dimension | Voltage (V) | Power (W) | Speed (RPM) | Airflow (M3/Min) | Noise – db (A) | Weight |
|
WIN 12 | WEF
|
300mm / 12″
|
39*39*24cm
|
240v / 50HZ
|
120
|
1350
|
32
|
56
|
8KG
|
|
WIN 16 | WEF
|
400mm / 16″
|
48*48*30cm
|
240v / 50HZ
|
200
|
1350
|
83
|
60
|
11KG
|
|
WIN 18 | WEF
|
450mm / 18″
|
56*56*34cm
|
240v / 50HZ
|
300
|
1350
|
108
|
65
|
15KG
|
|
WIN 24 | WEF
|
600mm / 24″
|
70*70*41.5cm
|
240v / 50HZ
|
500
|
900
|
160
|
70
|
28KG
|
Frequently Asked Questions (FAQ)
Q1: What sizes are available for the WIN Industrial Wall Exhaust Fan series?
A : The WIN WEF series comes in four sizes: 12″ (300mm), 16″ (400mm), 18″ (450mm), and 24″ (600mm).
Q2: What electricity supply is required to run these fans?
A : All models in the WIN WEF series run on a standard single-phase 240V / 50Hz electrical connection.
Q3: Which size provides the highest airflow capacity?
A : The WIN 24 WEF (24-inch model) provides the highest airflow extraction capacity at 160 m³/Min.
Q4: Can these exhaust fans be installed in commercial kitchens or workshops?
A : Yes, the heavy-duty metal frame and high airflow capacity make them suitable for commercial kitchens, workshops, factories, and warehouses.
Q5: What is the warranty coverage for the WIN Industrial Exhaust Fan series?
A : All models in the WIN WEF catalog include a 1-year manufacturer warranty.
