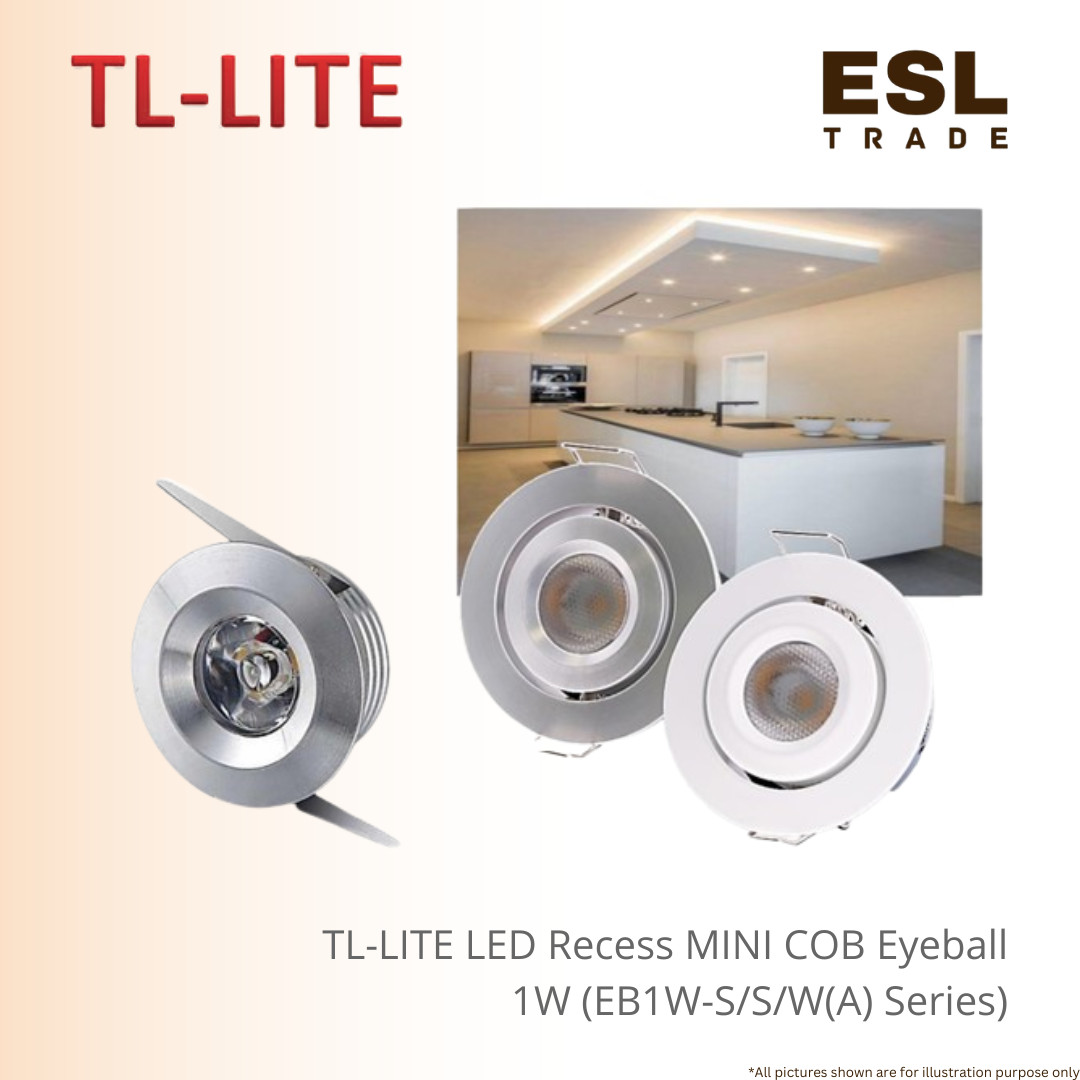

TL-LITE LED Recess Mini COB Eyeball Downlight 1W with Silver Aluminium Fitting, 24° Spot Beam, and Adjustable Options for Cabinets & Display Niches (Outstanding Brilliance)

Description

TL-LITE LED Recess Mini COB Eyeball Downlight 1W with Silver Aluminium Fitting, 24° Spot Beam, and Adjustable Options for Cabinets & Display Niches (Outstanding Brilliance)

Precision Accent Micro-Illumination with TL-LITE Mini COB Series

When designing high-end spatial environments, luxury retail showrooms, or modern residential kitchens, grand lighting gestures often need to be supported by highly localized accentuation.

Standard-sized downlights are simply too large and intense to mount inside compact shelving, glass showcase cabinets, or shallow wall niches.

The TL-LITE LED Recess Mini COB Eyeball 1W is engineered specifically to fill this niche, shrinking professional architectural lighting performance down to a micro-scale footprint.

This premium series allows lighting designers, contractors, and furniture builders to seamlessly integrate micro-spots directly into millwork, creating beautifully layered focal points without cluttering the ceiling line or structure.

Dual Configuration Engineering: Rigid Precision vs. Flexible Adjustment

To meet varying structural demands across commercial and residential layouts, the TL-LITE 1W series offers two distinct structural housing options:

• 1W Non-Adjustable (Model EB1W-S): Features an ultra-compact body measuring 36 x 28mm with a tiny

  ø32mm cutout requirement. This variant locks the light engine flat inside its high-purity silver frame, making it the premier choice for down-firing linear grids inside wardrobes, display shelving, and under-cabinet configurations.

• 1W Adjustable (Model EB1W-S/W (A)): Measures 52 x 18mm and drops into a ø44mm cutout. Equipped with an internal dual-axis pivoting ring mechanism, this model allows users to manually tilt and steer the light beam. It provides the flexibility required to adapt to changing product layouts or target specific artwork inside gallery walls and retail cases.

High Efficacy COB Technology with a Tight 24° Focus

Despite its incredibly small size, this mini eyeball makes no compromises on internal electrical hardware.

It uses a high-density Chip-on-Board (COB) module that packs multiple light-emitting diodes together onto a single substrate.

This creates a clean, solid light stream that eliminates the pixelated, multiple shadows common with older multi-diode SMD bulbs.

The optical lens focus is set to a crisp 24° narrow beam angle, ensuring a tight, high-contrast spotlight circle that highlights fine textures and metallic reflections.

In terms of brightness yield, the non-adjustable 3000K variant achieves an impressive 110LM (110 lumens) output, while the adjustable multi-CCT variant outputs a clean 85LM (85 lumens), maximizing local contrast while drawing minimal power.

Premium Silver Aluminium Materials and Seamless Integration

To guarantee long-term performance under continuous commercial use, the outer trims are made from high-purity silver aluminium.

Aluminum acts as a highly efficient heat sink, drawing heat rapidly away from the sensitive COB chip junctions and venting it safely inside the structural cabinet panel or ceiling board.

This prevents premature chip degradation and protects nearby wood or veneer finishes from thermal discoloration.

Operating safely on standard mains networks of AC220-240V, the internal solid-state driver delivers stable, flicker-free performance under continuous operation.

To match different interior color schemes, the collection supports two critical color temperatures (CCT):

• 3000K (Warm White): Available across both models, this provides a luxurious, inviting amber glow perfect for high-end residential bars, kitchen niches, and boutique leather or jewelry showcases.

• 6500K (Daylight): Available on the adjustable model, this delivers an ultra-sharp, high-contrast white beam that maximizes focus on modern silver pieces, technical instrumentation, and modern commercial offices.

Equipped with heavy-duty side retention spring clips, these mini eyeballs lock securely into place for a clean finish. Invest in micro-architectural design, rugged aluminum durability, and energy-saving COB performance.

Choose the TL-LITE 1W Mini Eyeball series today to secure an outstanding brilliance finish for your next project.
