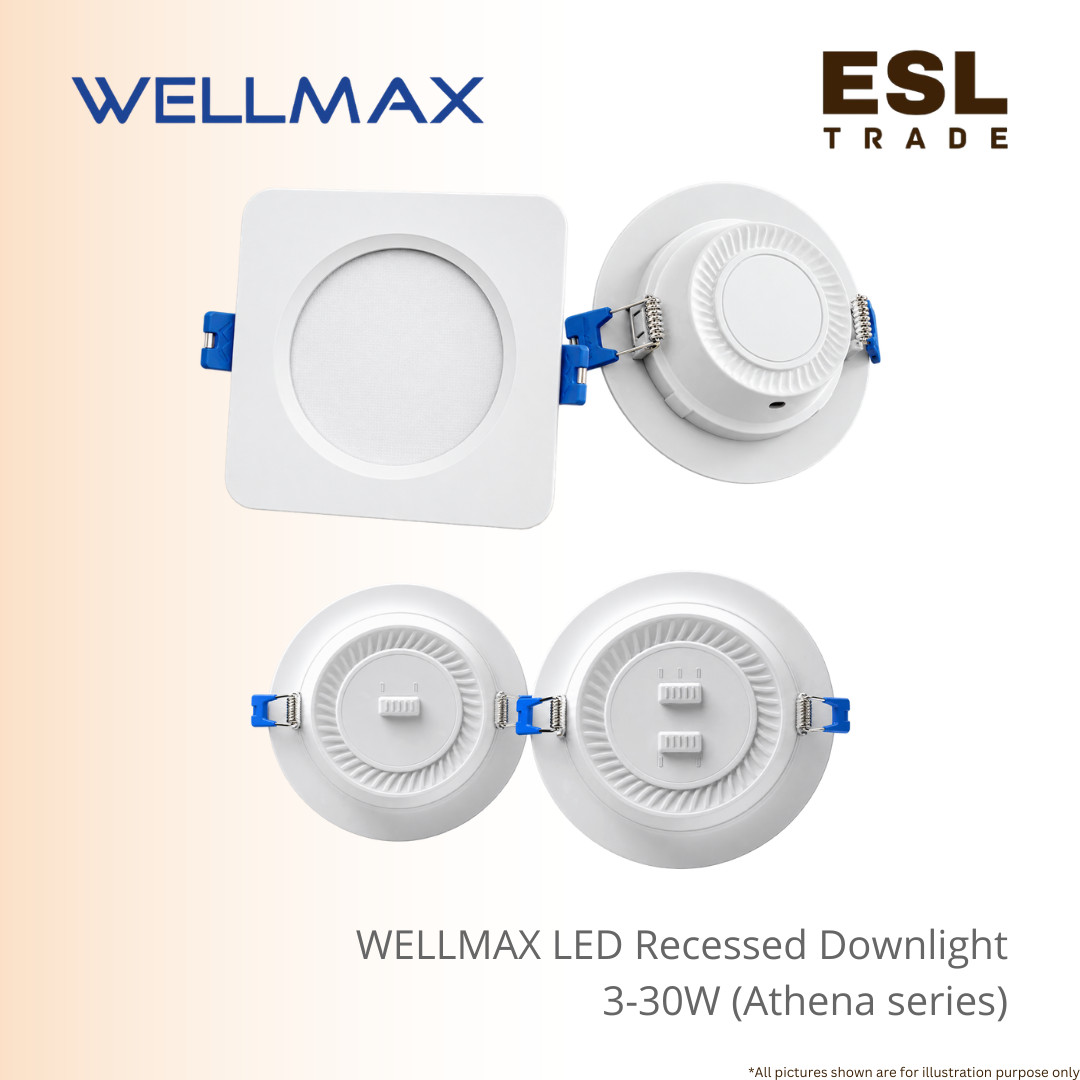

WELLMAX Athena Series CCT & Wattage Switchable LED Downlight 100lm/W Anti-Glare (3W-30W) Versatile Architectural Recessed Spotlight
The WELLMAX Athena Series CCT & Wattage Switchable LED Downlight provides an adaptable, high-efficiency lighting solution engineered for residential spaces, commercial offices, and modern interior environments.
Designed with built-in toggle controls, the Athena series allows users and installers to easily adjust wattage levels (such as 12W/18W or 18W/24W) and switch between 3000K, 4000K, and 6500K color temperatures directly on the fixture.
This multi-configuration capability significantly reduces SKU inventory requirements while offering ultimate on-site installation flexibility.
Engineered to operate at a high luminous efficacy of 100 lm/W, the series generates bright, clear illumination with low power consumption.
The integrated anti-glare optic structure distributes light smoothly across the room, protecting visual comfort without causing harsh glares or hotspots.
The fixture is available in both Round (UDR/AT/0/1/0/RD & UDS/AT/DIM/1/3C/RD) and Square (UDR/AT/0/1/0/SQ & UDS/AT/DIM/1/3C/SQ) profiles, offering white, black, golden, and silver decorative trim options to match distinct architectural finishes.
The fixed and switchable wattage lineup covers power ranges from 3W (240 lm) up to 30W (3000 lm), fitting standard ceiling cutouts from Ø 65–80 mm up to Ø 195–210mm.
Operating across 100–240V and 220–240V mains supplies, the Athena downlight is built with non-flicker drivers, a color rendering index (CRI > 80), and a 25,000-hour rated operating life supporting 15,000 switching cycles.
Tested for IP20 performance within -20°C to +40°C environments, the series fully complies with international CE, LVD, RoHS, ErP, and EMC quality standards.
Product Details
| Shape / Model Type | Item Number | Wattage (W) | Voltage (V) | Luminous Flux (lm) | Efficacy | Power Factor (PF) | Cutout Hole Size | Dimensions (W×L×H or Φ×H) | Features / Color Trims | CRI | Lifetime (Hrs) |
| Round (Standard) | UDR/AT/0/1/0/RD | 3W | 100–240V / 220–240V | 240 lm | 80–100 lm/W | 0.4 | Ø 65–80mm | Ø 90mm x 33mm | Fixed CCT / Anti-Glare | >80 | 25,000h |
| Round (Standard) | UDR/AT/0/1/0/RD | 6W | 100–240V / 220–240V | 600 lm | 100 lm/W | 0.5 | Ø 95–110mm | Ø 118mm x 33mm | Fixed CCT / Anti-Glare | >80 | 25,000h |
| Round (Standard) | UDR/AT/0/1/0/RD | 9W | 100–240V / 220–240V | 900 lm | 100 lm/W | 0.5 | Ø 125–135mm | Ø 145mm x 33mm | Fixed CCT / Anti-Glare | >80 | 25,000h |
| Round (Standard) | UDR/AT/0/1/0/RD | 12W | 100–240V / 220–240V | 1200 lm | 100 lm/W | 0.5 | Ø 140–160mm | Ø 168mm x 33mm | Fixed CCT / Anti-Glare | >80 | 25,000h |
| Round (Standard) | UDR/AT/0/1/0/RD | 18W | 100–240V / 220–240V | 1800 lm | 100 lm/W | 0.5 | Ø 195–210mm | Ø 223mm x 33mm | Fixed CCT / Anti-Glare | >80 | 25,000h |
| Round (Standard) | UDR/AT/0/1/0/RD | 24W | 100–240V / 220–240V | 2400 lm | 100 lm/W | 0.5 | Ø 195–210mm | Ø 223mm x 33mm | Fixed CCT / Anti-Glare | >80 | 25,000h |
| Round (Standard) | UDR/AT/0/1/0/RD | 30W | 100–240V / 220–240V | 3000 lm | 100 lm/W | 0.9 | Ø 195–210mm | Ø 223mm x 33mm | Fixed CCT / Anti-Glare | >80 | 25,000h |
| Round (Switchable) | UDS/AT/DIM/1/3C/RD | 12W / 18W | 100–240V / 220–240V | 1200 lm / 1800 lm | 100 lm/W | 0.5 | Ø 140–160mm | Ø 168mm x 36mm | Dual Wattage + 3 CCT Switchable | >80 | 25,000h |
| Round (Switchable) | UDS/AT/DIM/1/3C/RD | 18W / 24W | 100–240V / 220–240V | 1800 lm / 2400 lm | 100 lm/W | 0.5 | Ø 195–210mm | Ø 223mm x 36mm | Dual Wattage + 3 CCT Switchable | >80 | 25,000h |
| Square (Standard) | UDR/AT/0/1/0/SQ | 3W–30W | 100–240V / 220–240V | 240 lm–3000 lm | 80–100 lm/W | 0.4–0.9 | Range Ø 65–210mm | 90 mm–223mm x 35mm | White, Black, Golden, Silver | >80 | 25,000h |
| Square (Switchable) | UDS/AT/DIM/1/3C/SQ | 12W/18W & 18W/24W | 100–240V / 220–240V | 1200 lm / 2400 lm | 100 lm/W | 0.5 | Range Ø 140–210mm | 168mm–223mm x 36mm | Dual Wattage + 3 CCT Switchable | >80 | 25,000h |
Frequently Asked Questions (FAQ)
Q : How do the wattage and CCT switches work on the Athena Downlight?
A : The switchable Athena models feature back-mounted toggle switches that allow installers to manually choose the wattage (e.g., 12W or 18W) and select the color temperature (3000K Warm White, 4000K Neutral White, or 6500K Cool White) before or during installation.
Q : What frame/trim colors are available for the Square Athena model?
A : The square series offers four distinct rim finishes: White, Black, Golden, and Silver.
Q : Does the Athena Series downlight flicker during operation?
A : No, the entire series is equipped with non-flicker driver technology to ensure stable, eye-comfortable light.
Q : What ceiling cutout size is needed for the 18W/24W model?
A : The 18W, 24W, and 18W/24W switchable models fit ceiling cutouts ranging from Ø 195mm to Ø 210mm.
Q : What is the luminous efficacy of the Athena series?
A : The series achieves up to 100 lm/W, delivering energy-efficient lighting across all wattage options.
