Description

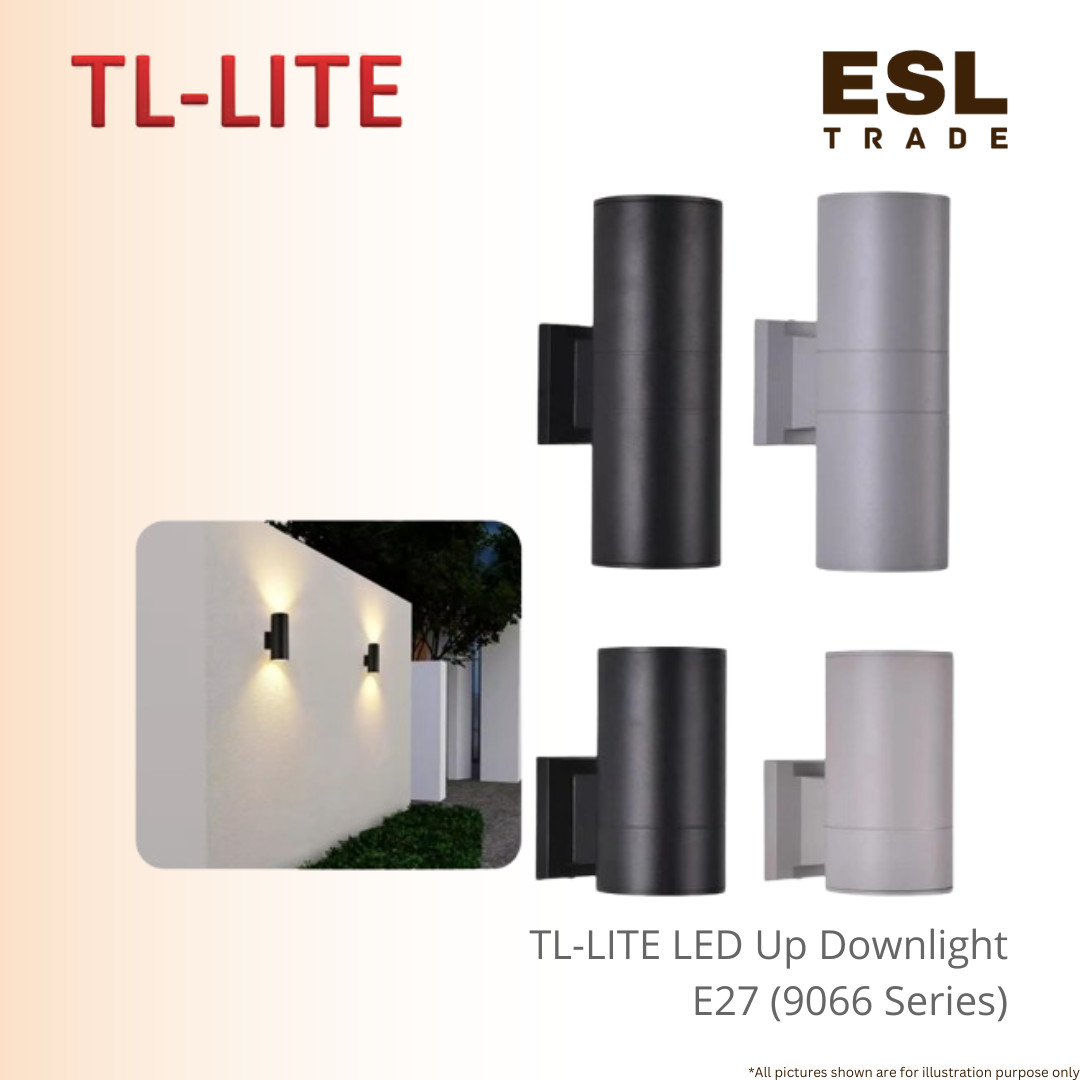

TL-LITE 9066 E27 Outdoor Up Down Light IP65 Excellent Waterproof Die-Cast Aluminum Wall Sconce Fit to PAR20 Black & Grey Exterior Cylinder Pillar Lamp
Elevate your property’s nighttime architectural appeal with the modern sophistication of the TL-LITE 9066 E27 Up Down Light collection.
Precision-engineered by TL-LITE 9066 E27 Up Down Light to deliver premium decorative and security illumination, this heavy-duty cylindrical wall sconce series is an outstanding choice for luxury residential facades, commercial entryway pillars, perimeter gate walls, and outdoor patios.
TL-LITE 9066 E27 Up Down Light is featuring a seamless, sleek cylinder silhouette, these fixtures project defined columns of structural light against vertical surfaces.
This TL-LITE 9066 E27 Up Down Light is accents raw brick, concrete, or stone textures while significantly upgrading visibility and safety across external pathways.
Designed to give you ultimate creative control, the series features a standard E27 holder specifically tailored to fit to PAR20 reflector bulbs.
This lets you select your own preferred LED bulb wattage, beam angle, and color temperature, such as a cozy warm white or a bright daylight tone (bulbs are not included inside).
Built to operate flawlessly across standard electrical lines, the system supports a wide input voltage range of 85-265V, protecting your lighting arrangement from power surges or unexpected voltage drops.
Crafted strictly for demanding climates, the rugged chassis is made from high-impact Die-Cast Aluminum (Aluminium Black / Grey), ensuring exceptional thermal heat release and lifelong rust protection.
Sealed with a verified IP65 weatherproofing rating, it completely blocks out torrential rain, airborne dust, and high humidity.
The collection offers two practical layouts: the compact single-head model (9066/1) measuring 108 x 200 x 170mm, and the dual up-and-down model (9066/2) measuring 108 x 300 x 170mm with a standard 108mm cylinder diameter, mounting flush to any wall for an upscale finish.
Product Details:
| Feature | Technical Specification Details |
| Brand | TL-LITE™ (TL Electric & Lighting) |
| Product Category | LED UP DOWN LIGHT (PAR20) / 9066 UP DOWN LIGHT |
| Lampholder Base Type | E27 Holder (Specially Configured to Fit to PAR20 Bulbs) |
| Input Operating Voltage | 85-265V (Wide-Voltage Protected Path) |
| Housing Material | Heavy-Duty Die-Cast Aluminum (Aluminium) |
| Body Color Finishes | Black / Grey |
| Ingress Protection Rating | IP65 (Waterproof / Weatherproof / Dustproof) |
| Cylinder Outer Diameter | 108mm |
| Bulb Inclusion Note | WITHOUT BULB NOT INCLUDING INSIDE (PAR20 Bulbs sold separately) |
Model Variant Breakdown
| Model Code | Lighting Direction | Physical Dimensions (Width×Height×Depth) |
| 9066/1 | Single Direction (Downlight / Uplight) | 108 x 200 x 170mm |
| 9066/2 | Dual Direction (Symmetrical Up & Down) | 108 x 300 x 170mm |
Key Structural Features
-
Optimized PAR20 Fitment: Engineered with a specialized inner chamber and an E27 base to comfortably house PAR20 directional lamps, maximizing light throw distance up and down the facade
-
Die-Cast Aluminum Casing: Forged from structural-grade aluminum to ensure maximum heat dissipation, preventing internal components from overheating and stopping rust or UV fading
-
Wide-Voltage Grid Protection: Driven by an advanced 85-265V input channel, safeguarding your choice of high-performance LED lamps against electrical spikes and current drops
-
Flexible Scalable Sizing: Offers matching architectural options across your property use the compact 200mm fixture for tight entrance headers, or select the elongated 300mm barrel to bring a luxury presence to main pillars and columns
