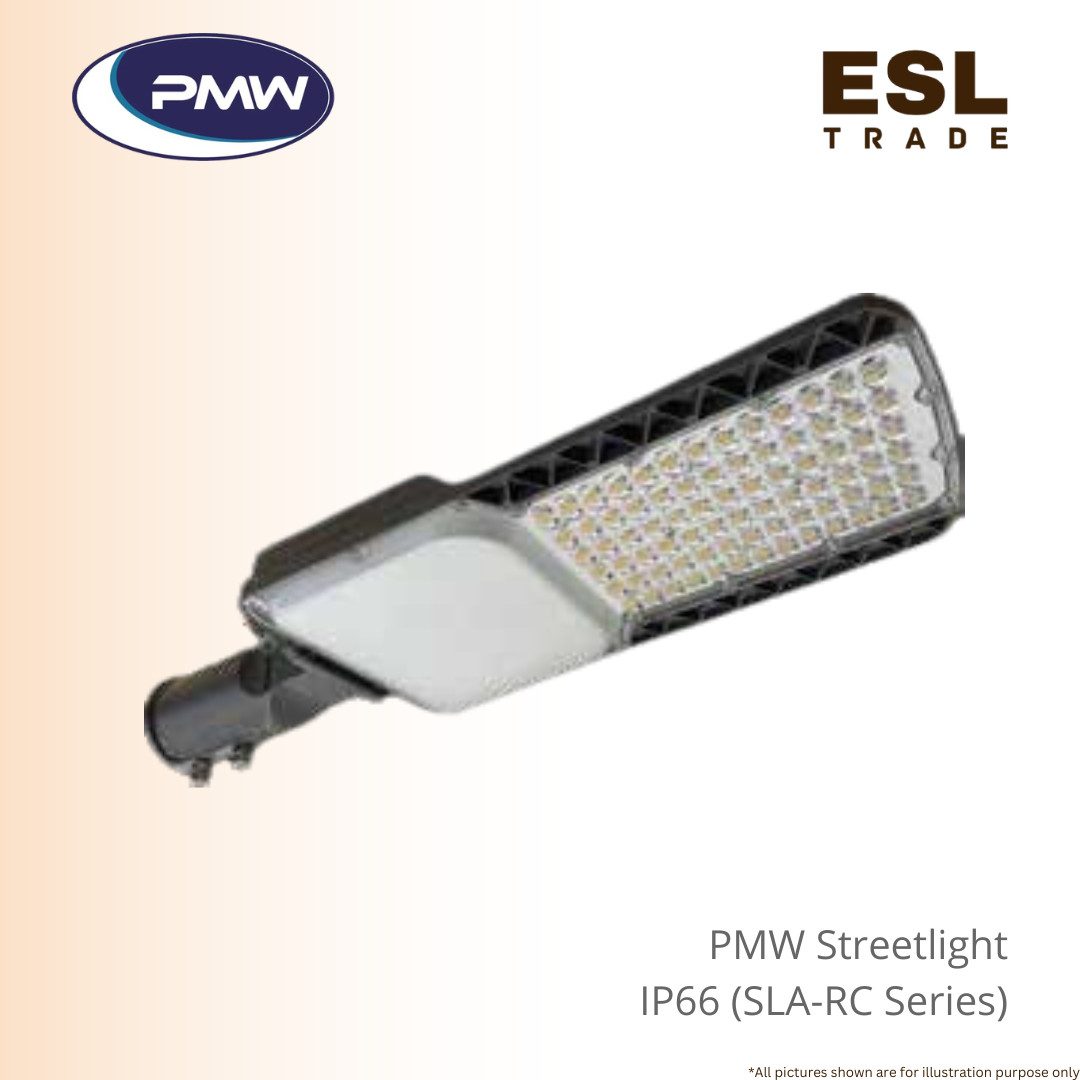

PMW SLA-RC Series LED Street Light 40W-250W Adjustable Sleeve Angle IP66 IK09 Excellent Outdoor Pathway & Roadway
The PMW SLA-RC Series LED Street Light provides high-efficacy, reliable illumination for diverse outdoor lighting projects, including urban and rural roads, residential streets, pathways, and bike lanes.
Manufactured with a corrosion-resistant die-cast aluminum casing and finished with electrostatic powder coating, the luminaire is built to endure harsh atmospheric conditions.
It holds an IP66 weather ingress protection rating and an IK09 mechanical impact resistance rating, operating across an ambient temperature range from -30°C to +45°C.
The fixture offers a long service life with a rated operational LED lifespan of 50,000 hours and a Color Rendering Index of Ra70.
Engineered for field flexibility and simple maintenance, the SLA-RC Series incorporates a tool-free buckle design that simplifies housing access during routine inspections and servicing.
It features precision PC optical lenses for uniform light distribution and includes an adjustable sleeve mounting angle compatible with standard $\varnothing60\text{mm}$ spigot arms.
The SLA-RC series covers seven distinct wattage outputs: 40W (6,400 lm), 60W (9,600 lm), 80W (12,800 lm), 100W (16,000 lm), 150W (24,000 lm), 200W (32,000 lm), and 250W (40,000 lm), maintaining an efficacy of 160 lm/W.
The correlated color temperature (CCT) is fully selectable across a broad range from 2200K warm amber to 6500K daylight.
Combining durable die-cast aluminum construction, flexible sleeve adjustment, and tool-free buckle housing access, the PMW SLA-RC Series delivers a practical outdoor lighting solution for commercial and municipal applications.
Product Detail
PMW SLA-RC Series
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Efficacy (lm/W) | Color Temp Range (CCT) | Dimensions L x W x H (mm) | Weight (kg) | Spigot Dia. (∅) | Ingress / Impact Rating | CRI / Lifespan | Working Temp Range | Body Material / Features |
| 01.SLARC040.00 | SLA040 | 40W | 6,400 lm | 160 lm/W | 2200K – 6500K | 392 x 160 x 82 | 2.0 kg | Ø60 mm | IP66 / IK09 | Ra70 / 50,000H | -30°C to +45°C | Corrosion Resistant Die-Cast Aluminum, PC Lens,
Buckle Design |
| 01.SLARC060.00 | SLA060 | 60W | 9,600 lm | 160 lm/W | 2200K – 6500K | 485 x 188 x 67 | 2.2 kg | Ø60 mm | IP66 / IK09 | Ra70 / 50,000H | -30°C to +45°C | Corrosion Resistant Die-Cast Aluminum, PC Lens,
Buckle Design |
| 01.SLARC080.00 | SLA080 | 80W | 12,800 lm | 160 lm/W | 2200K – 6500K | 485 x 188 x 67 | 2.2 kg | Ø60mm | IP66 / IK09 | Ra70 / 50,000H | -30°C to +45°C | Corrosion Resistant Die-Cast Aluminum, PC Lens,
Buckle Design |
| 01.SLARC100.00 | SLA100 | 100W | 16,000 lm | 160 lm/W | 2200K – 6500K | 565 x 220 x 67 | 3.0 kg | Ø60mm | IP66 / IK09 | Ra70 / 50,000H | -30°C to +45°C | Corrosion Resistant Die-Cast Aluminum, PC Lens,
Buckle Design |
| 01.SLARC150.00 | SLA150 | 150W | 24,000 lm | 160 lm/W | 2200K – 6500K | 565 x 220 x 67 | 3.0 kg | Ø60mm | IP66 / IK09 | Ra70 / 50,000H | -30°C to +45°C | Corrosion Resistant Die-Cast Aluminum, PC Lens,
Buckle Design |
| 01.SLARC200.00 | SLA200 | 200W | 32,000 lm | 160 lm/W | 2200K – 6500K | 660 x 240 x 67 | 3.7 kg | Ø60mm | IP66 / IK09 | Ra70 / 50,000H | -30°C to +45°C | Corrosion Resistant Die-Cast Aluminum, PC Lens,
Buckle Design |
| 01.SLARC250.00 | SLA240 | 250W | 40,000 lm | 160 lm/W | 2200K – 6500K | 760 x 276 x 67 | 4.5 kg | Ø60mm | IP66 / IK09 | Ra70 / 50,000H | -30°C to +45°C | Corrosion Resistant Die-Cast Aluminum, PC Lens,
Buckle Design |
Note:
- Finish: Electrostatic powder coating.
- Features: Adjustable sleeve angle and quick buckle latching system.
- Please refer to driver data sheet for circuit breaker/MCB looping details prior to installation
Frequently Asked Questions (FAQ)
Q: What installation and mounting advantages does the SLA-RC series offer?
A: The fixture features an adjustable sleeve angle designed to fit standard Ø60mm mounting arms and utilizes a quick-latch buckle design that allows easy, tool-free opening for maintenance.
Q: What are the durability ratings against weather and physical impact?
A: Constructed with corrosion-resistant die-cast aluminum and electrostatic powder coating, the unit holds an IP66 rating against dust and water entry, along with an IK09 impact resistance rating.
Q: What color temperature options are available for the SLA-RC street light?
A: The series supports a wide CCT selection range spanning from 2200K warm white/amber up to 6500K daylight.
Q: What is the operating temperature range for this fixture?
A: The luminaire is designed to perform reliably in ambient operational environments ranging from -30°C to +45°C.
