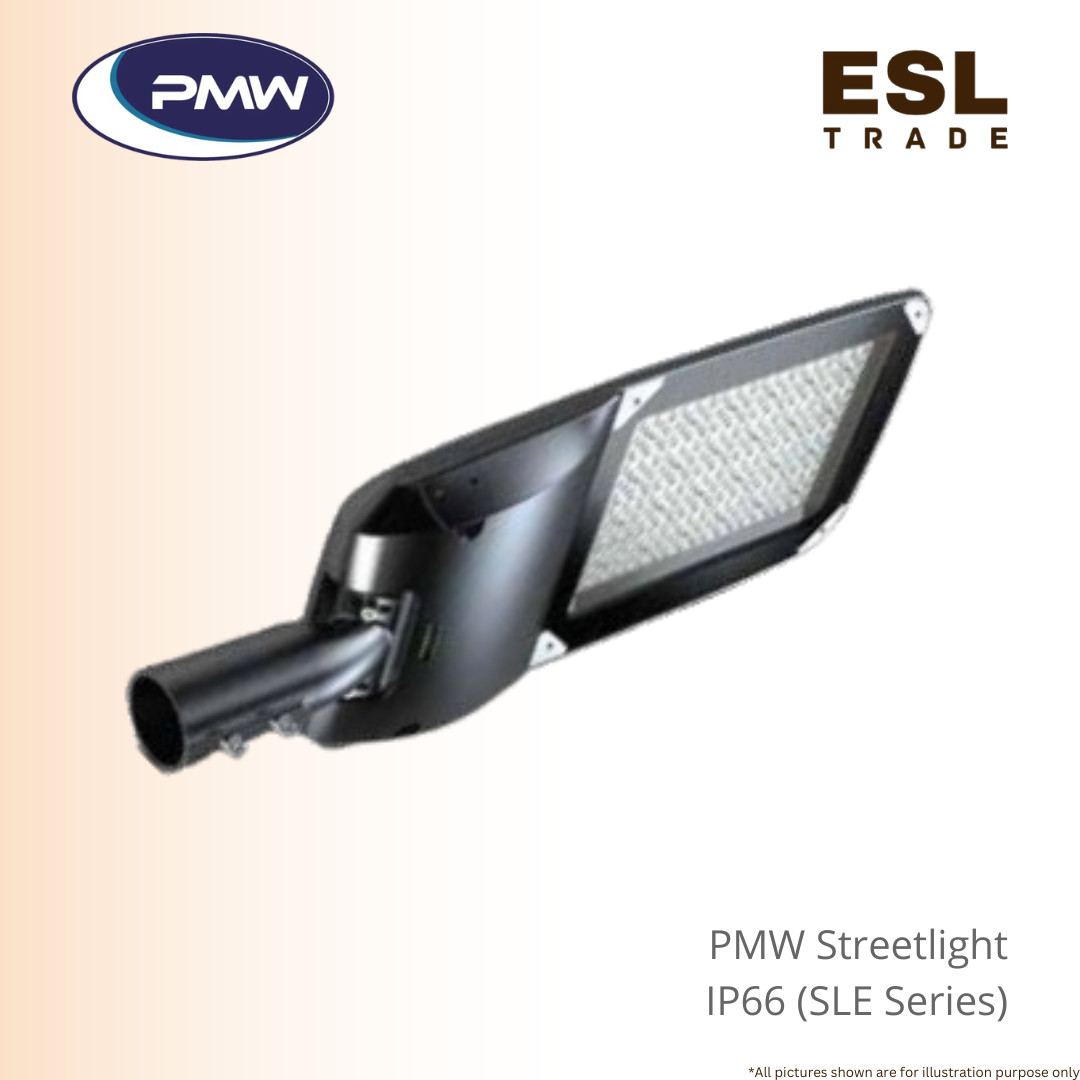

PMW SLE Series LED Street Light 70W-240W Tool-Free IP66 Excellent Heavy-Duty for Outdoor Parking & Walkway
The PMW SLE Series LED Street Light provides high-performance, dependable outdoor illumination engineered specifically for municipal streets, commercial parking areas, highway corridors, and public walkways.
Constructed with a heavy-duty cast aluminum housing finished in a protective powder coat paint, the luminaire features a streamlined, wind-proof shape designed to withstand severe weather exposure and minimize wind resistance.
Rated IP66 for ingress protection against dust and heavy rainfall, the SLE Series offers an operational LED lifespan of up to 50,000 hours.
Thermal efficiency is central to the fixture’s internal engineering.
The internal LED drivers are hard-mounted directly to the die-cast aluminum back casting, facilitating direct heat sinking to draw heat away from essential electronics during continuous use.
For streamlined field servicing, the fixture incorporates a tool-free latching operation alongside a spacious internal driver compartment, simplifying maintenance and installation procedures.
Operating on a standard AC voltage supply of 220VAC–240VAC at 50/60Hz, the fixture connects via a 66mm diameter mounting entry arm.
The SLE Series offers eight distinct wattage models:
- 70W (10,500 lm),
- 80W (12,000 lm),
- 100W (15,000 lm),
- 120W (18,000 lm),
- 150W (22,500 lm),
- 180W (27,000 lm),
- 200W (30,000 lm), and
- 240W (36,000 lm),
achieving a high luminous efficacy of 150 lm/W across all models.
Users can choose between three color temperatures:
- 3000K warm white,
- 3500K neutral white, or
- 4000K cool white.
Combining durable cast aluminum construction, direct thermal heat sinking, and tool-free accessibility, the PMW SLE Series delivers a long-term lighting solution for commercial and municipal applications.
Product Detail : PMW SLE Series Technical Specifications
| Product Code | Model Code | Wattage (W) | Lumens (lm) | Efficacy (lm/W) | Color Temp (CCT) | Dimensions L x W x H (mm) | Weight (kg) | Input Voltage | Spigot Dia. | IP Rating / Lifespan | Body Material / Features |
| 01.SLE070.00 | SLE070 | 70W | 10,500 lm | 150 lm/W | 3000K, 3500K, 4000K | 620 x 272 x 108 | 3.7 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Heavy-Duty Cast Aluminum,
Tool-Free Operation |
| 01.SLE080.00 | SLE080 | 80W | 12,000 lm | 150 lm/W | 3000K, 3500K, 4000K | 620 x 272 x 108 | 3.7 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Heavy-Duty Cast Aluminum,
Tool-Free Operation |
| 01.SLE100.00 | SLE100 | 100W | 15,000 lm | 150 lm/W | 3000K, 3500K, 4000K | 720 x 272 x 108 | 4.5 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Heavy-Duty Cast Aluminum,
Tool-Free Operation |
| 01.SLE120.00 | SLE120 | 120W | 18,000 lm | 150 lm/W | 3000K, 3500K, 4000K | 720 x 272 x 108 | 4.5 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Heavy-Duty Cast Aluminum,
Tool-Free Operation |
| 01.SLE150.00 | SLE150 | 150W | 22,500 lm | 150 lm/W | 3000K, 3500K, 4000K | 750 x 333 x 115 | 5.7 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Heavy-Duty Cast Aluminum,
Tool-Free Operation |
| 01.SLE180.00 | SLE180 | 180W | 27,000 lm | 150 lm/W | 3000K, 3500K, 4000K | 850 x 333 x 115 | 7.7 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Heavy-Duty Cast Aluminum,
Tool-Free Operation |
| 01.SLE200.00 | SLE200 | 200W | 30,000 lm | 150 lm/W | 3000K, 3500K, 4000K | 850 x 333 x 115 | 7.7 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Heavy-Duty Cast Aluminum,
Tool-Free Operation |
| 01.SLE240.00 | SLE240 | 240W | 36,000 lm | 150 lm/W | 3000K, 3500K, 4000K | 850 x 333 x 115 | 7.7 kg | 220-240VAC (50/60Hz) | 66mm | IP66 / 50,000H | Heavy-Duty Cast Aluminum,
Tool-Free Operation |
Note: Features a wind-proof design, powder coat paint finish, large internal cavity for drivers, and hard-mounted driver back casting for heat dissipation. Refer to the driver data sheet for circuit looping and MCB details prior to installation.
Frequently Asked Questions (FAQ)
Q: How does the driver heat sinking work in the PMW SLE Series?
A: The internal LED drivers are hard-mounted directly to the die-cast aluminum back casting, transferring heat to the outer housing to maintain stable operating temperatures.
Q: What makes routine maintenance easier on the SLE Series street light?
A: The luminaire includes a tool-free latch mechanism and a large internal cavity, allowing maintenance technicians to inspect and replace drivers without requiring extra tools.
Q: What are the housing materials and weather protection ratings?
A: The fixture is constructed from heavy-duty die-cast aluminum coated with powder coat paint, featuring an IP66 ingress protection rating against water and dust.
Q: What entry size mounting arm is compatible with the SLE series?
A: The mounting spigot accommodates standard 66mm diameter street light entry arms.
