Description

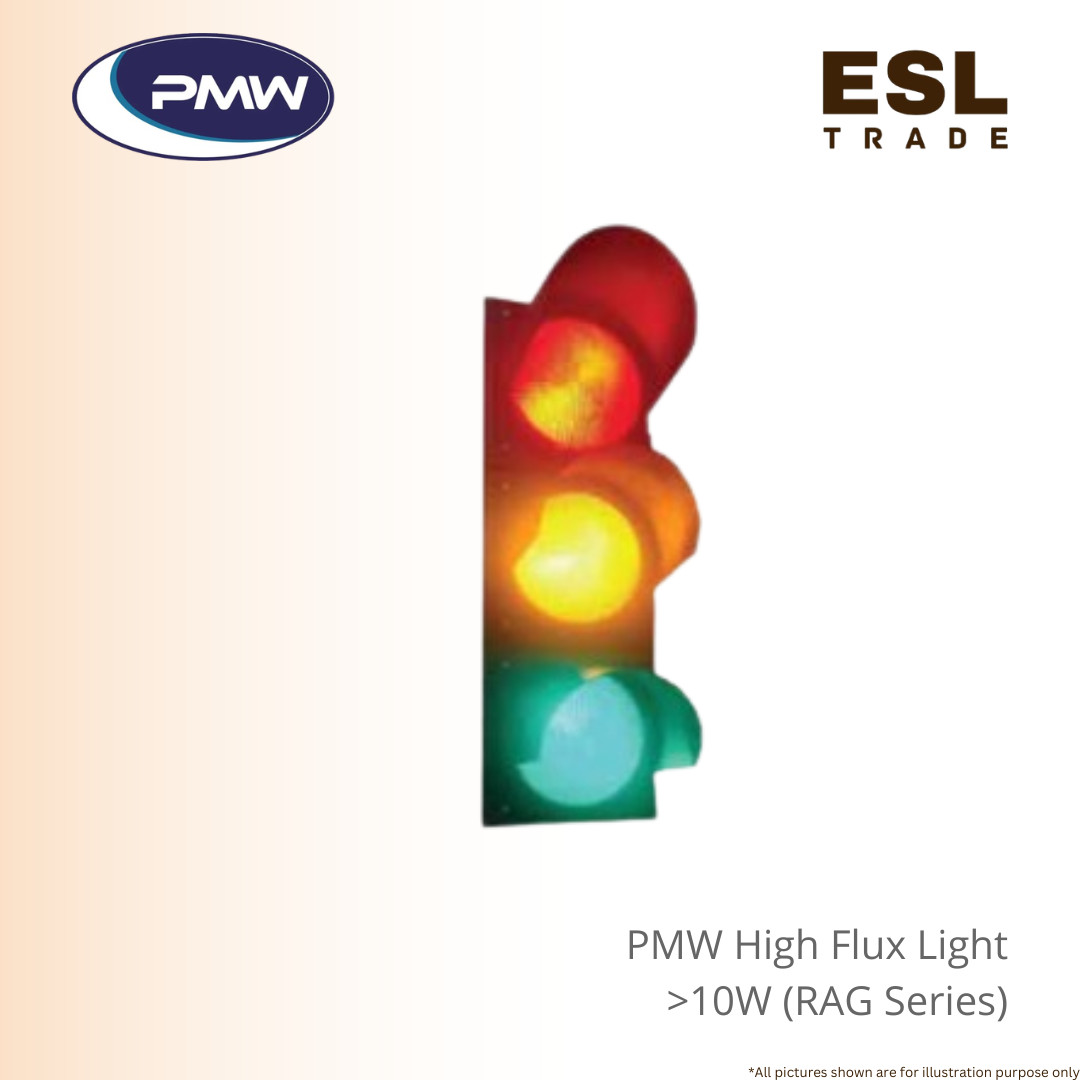

PMW RAG HIGH FLUX TRAFFIC LIGHT 300MM Series 3-Aspect Osram LED Traffic Signal AC85-265V Excellent for Roadway Intersection
The PMW RAG HIGH FLUX TRAFFIC LIGHT-300MM Series delivers bright 3-aspect signal guidance engineered for demanding traffic management across municipal road intersections, highways, commercial access points, and industrial complexes.
The PMW RAG HIGH FLUX TRAFFIC LIGHT is built using a high-impact polycarbonate (PC) housing, the fixture offers an IP65 ingress protection rating and operates in extreme ambient conditions ranging from -40°C to +80°C.
The PMW RAG HIGH FLUX TRAFFIC LIGHT is designed for long-term municipal infrastructure, the high-flux light source maintains an operational lifespan of up to 100,000 hours.
The signal head incorporates high-efficiency Osram LEDs organized across Red, Yellow, and Green 300mm aspect modules.
The PMW RAG HIGH FLUX TRAFFIC LIGHT has each color module utilizes 4 high-flux LEDs, providing a 120° vertical and 120° horizontal viewing angle to maintain maximum signal visibility.
Performance output is calibrated per color aspect:
- the Red light operates at 616–628nm wavelength with >450cd light intensity (71–112 lm, >10W power usage);
- the Yellow light operates at 589–592nm wavelength with >580cd intensity (82–130 lm, >10W power usage); and
- the Green light operates at 500–510nm wavelength with >860cd intensity (71–112 lm, >13W power usage).
This focused illumination yields an effective long-distance visual identification range of up to 300 meters.
Designed for broad electrical compatibility, the PMW RAG HIGH FLUX LIGHT operates on a universal AC 85V–265V (50/60 Hz) input voltage range.
Physical dimensions measure 1046mm in signal body height (1210mm total mounting height) by 350mm width.
With a standard carton dimension of 1105 x 380 x 265 mm and a net system weight of 12 kg, this 3-aspect LED traffic light delivers an efficient, robust solution for traffic signal installations.
Product Detail
PMW RAG HIGH FLUX LIGHT-300MM
| Aspect Color | LED Brand | LED Qty | Light Intensity | Luminous Flux (lm) | Dominant Wavelength | Viewing Angle (V / H) | Power Consumption | Input Voltage | Body Material | IP Rating / Lifespan | Visual Range | Total Height / Net Weight |
| RED | Osram | 4 PCS | >450cd | 71 – 112 lm | 616 – 628 nm | 120° / 120° | >10W | AC 85V-265V, 50/60Hz | Polycarbonate (PC) | IP65 / 100,000 Hours | 300m | 1210 mm / 12 kg |
| YELLOW | Osram | 4 PCS | >580cd | 82 – 130 lm | 589 – 592 nm | 120° / 120° | >10W | AC 85V-265V, 50/60Hz | Polycarbonate (PC) | IP65 / 100,000 Hours | 300m | 1210 mm / 12 kg |
| GREEN | Osram | 4 PCS | >860cd | 71 – 112 lm | 500 – 510 nm | 120° / 120° | >13W | AC 85V-265V, 50/60Hz | Polycarbonate (PC) | IP65 / 100,000 Hours | 300m | 1210 mm / 12 kg |
Note: Operating temperature range: -40°C to +80°C. Main signal housing height: 1046 mm. Overall height including mounting brackets: 1210 mm. Carton size: 1105 x 380 x 265mm
Frequently Asked Questions (FAQ)
Q: What brand of LEDs and how many chips are used in each color aspect?
A: Each color aspect module (Red, Yellow, Green) utilizes 4 high-flux LEDs manufactured by Osram.
Q: What is the operating voltage range for this signal head?
A: The fixture supports a broad AC input voltage range from 85V to 265V at 50/60 Hz.
Q: What are the visibility distance and beam viewing angles?
A: The traffic light provides a long-distance view up to 300 meters with wide beam distribution angles of 120° horizontally and 120° vertically.
Q: What are the power consumption and intensity figures for each color aspect?
A: Power consumption and intensity ratings are:
- Red is >10W at >450cd;
- Yellow is >10W at >580cd; and
- Green is >13W at >860cd
