Illuminating the Way: Your Essential Guide to Street Light
Whether you are a contractor bidding for a local project, a sub-contractor managing a site, or a business owner looking to secure your premises, understanding the technical fundamentals of street lighting is crucial.
It’s not just about “buying a light”; it’s about providing the technical backbone for a functional and secure space.
In this guide, we will break down the essential “science” behind the glow from finding the perfect balance between pole height and wattage to understanding beam angles and durability to help you make the best choice for your next project.
- Finding the Sweet Spot: Pole Height vs. Wattage
In street lighting, height and power go hand-in-hand. If the pole is too high and the wattage too low, you get “dark spots”. If it’s the other way around, you waste energy and create glare.
- Residential Roads (5m–6m poles): Usually require 30W to 60W LED fixtures.
- Main Roads/Collector Roads (8m – 10m poles): Typically require 100W to 150W.
- Highways/Major Intersections (12m+ poles): Often require 200W+ high-output LEDs.
- Beam Angle & Light Distribution
Street lights don’t shine in a simple circle. They use specialized optics (Type I to Type V) to “stretch” the light along the road rather than wasting it on someone’s front yard.
- Asymmetrical Distribution:This is standard for street lighting. It pushes light forward and sideways to cover the width of the road while minimizing “backlight” behind the pole.

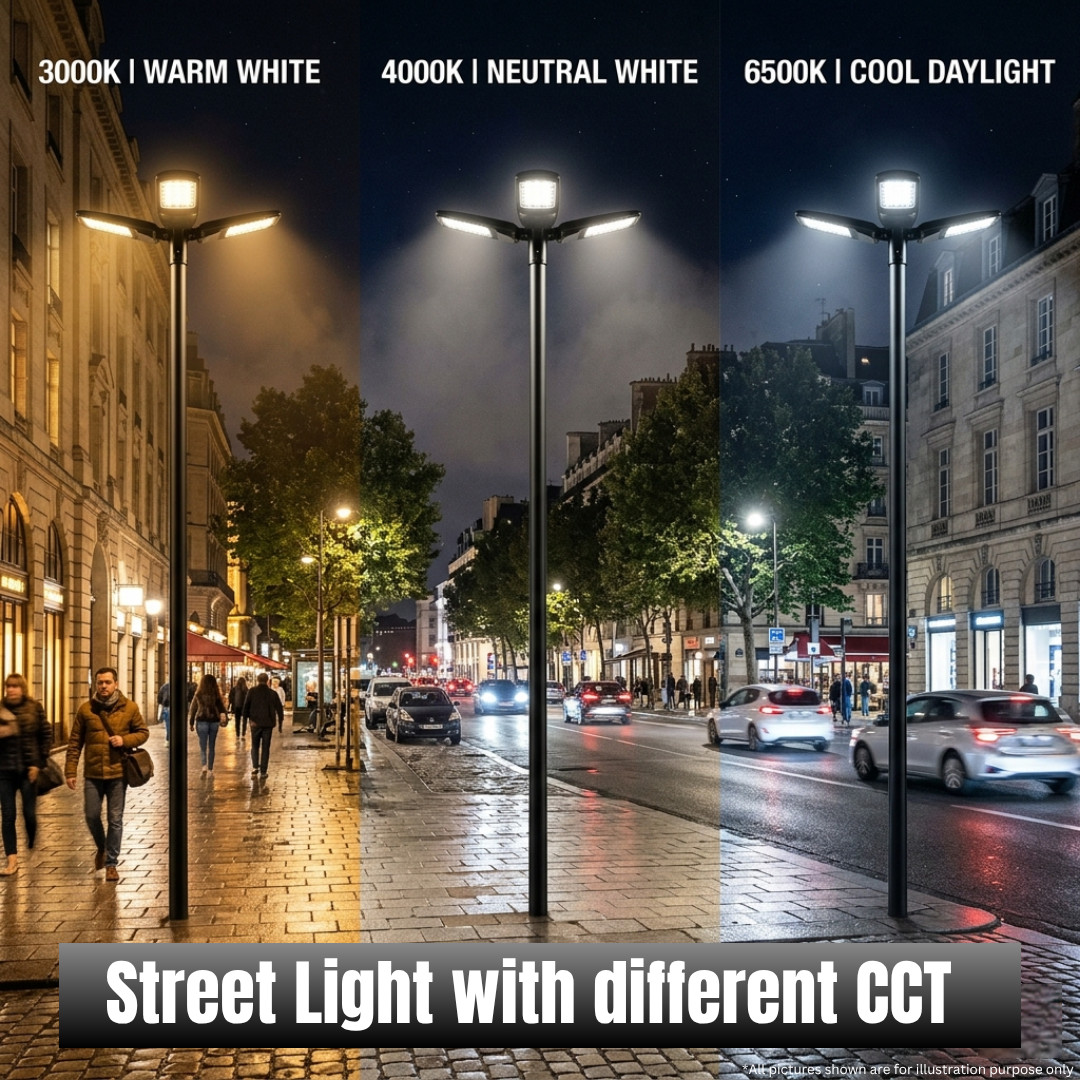

- Color Temperature (CCT)
This determines the “mood” and visibility of the area:
- 3000K (Warm White):Increasingly popular for residential areas as it is softer on the eyes and better for the environment and wildlife.
- 4000K (Neutral White):The “gold standard” for general street lighting. It provides great visibility and a crisp, modern look.
- 5000K – 6000K (Cool White):Best for high-security areas or industrial zones where maximum clarity is needed.

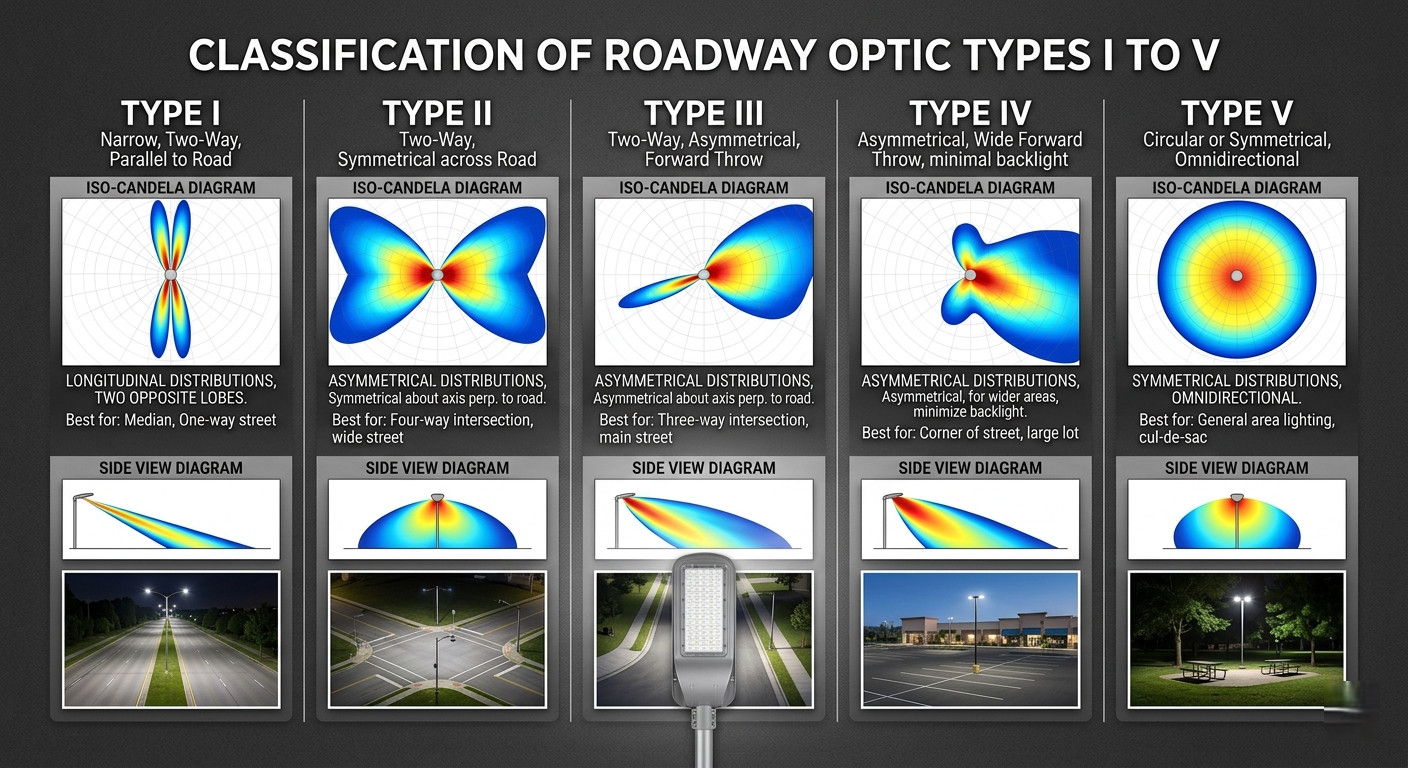

| Optic Type | Distribution Pattern | Typical Application | Characteristics |
| Type I | Narrow, Symmetrical | Narrow walkways, bike paths, and center medians. | Projects light in two opposite directions along the length of the road. |
| Type II | Broad, Symmetrical | Wide walkways, ramps, and narrow entrance roads. | Has a slightly wider lateral throw than Type I; meant for fixtures near the roadside. |
| Type III | Forward Throw (Asymmetrical) | General roadway lighting and parking area perimeters. | Pushes light forward away from the pole to cover the width of a standard road. |
| Type IV | Wide Forward Throw (Asymmetrical) | Perimeter lighting, building fronts, and wide parking lots. | Produces a semicircular light pattern with minimal backlight; often called “Wall Mount” optics. |
| Type V | Omnidirectional (Circular/Square) | Intersections, large parking lots, and open squares. | Provides a 360-degree uniform distribution of light from the center of the fixture. |
Standard defined by the Illuminating Engineering Society (IES)
Note : These types is essential for ensuring proper uniformity values and compliance with standards like the Uniform Building By-Laws (UBBL). For example, in a shopping mall drop-off area or a multi-story building layout, selecting between a Type III or Type V optic can drastically change the lux levels and calculation surfaces in your simulation.
- Importance of Uniformity
Don’t guess where to place your poles. Achieving Uniformity is the most critical part of a street lighting layout. Proper planning ensures there are no dangerous dark patches between poles where accidents can happen, providing a seamless flow of light for drivers and pedestrians.
- Maintenance and Durability
Since street lights are exposed to Malaysia’s tropical heat and heavy rain, always check for these ratings:
- IP66 Rating:Ensures the fixture is dust-tight and protected against powerful jets of water or heavy rain.
- IK08/09 Rating:This measures “Impact Protection” crucial for durability against external physical impacts.
